(N)TMCGEWÖU Cable Description
(N)TMCGEWOU cables are suitable for both indoor and outdoor applications and are often used in open-pit mining operations. These cables are used to connect large mobile equipment such as excavators and spreaders, gantry cranes, etc., which are subject to very high mechanical loads and are suitable for motorized winding on single spiral or flat winding machines.

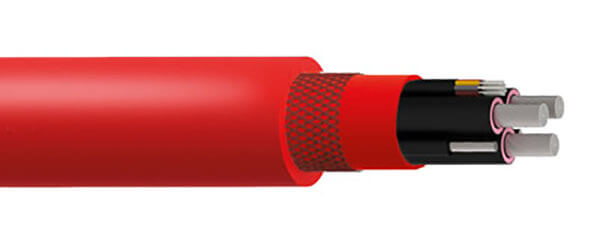

(N)TMCGEWÖU Cable Construction
| (N)TMCGEWÖU - 3.6/6kV, 6/10kV, 8.7/15kV Cable | (N)TMCGEWÖU - 12/20kV, 14/25kV, 18/30kV Cable | |
|---|---|---|
| VOLTAGE | 3.6/6kV, 6/10kV, 8.7/15kV | 12/20V, 14/25kV, 18/30kV |
| PHASE CONDUCTOR | Class 5 Flexible Stranded Tinned Copper | |
| INSULATION | Rubber Compound | |
| SEMI-CONDUCTIVE LAYERS | Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation | |
| EARTH CONDUCTOR | Overall Plain Copper Wire Screen | |
| OUTER SHEATH | Rubber | |
(N)TMCGEWÖU Cable Characteristics
| (N)TMCGEWÖU - 3.6/6kV, 6/10kV, 8.7/15kV Cable | (N)TMCGEWÖU - 12/20kV, 14/25kV, 18/30kV Cable | |
|---|---|---|
| Voltage Rating (Uo/U) | 3.6/6kV 6/10kV 8.7/15kV | 12/20V 14/25kV 18/30kV |
| Test Voltage | 3.6/6kV: 11kV, 8.7/15kV 6/10kV: 17kV 8.7/15kV: 24kV | 12/20kV: 29kV 14/25kV: 36kV 18/30kV: 43kV |
| Ambient Temperature | Fixed: -40°C to +80°C | |
| Maximum Short Circuit Temperature | +250°C | |
| Minimum Bending Radius | Fixed: 6 x overall diameter | |

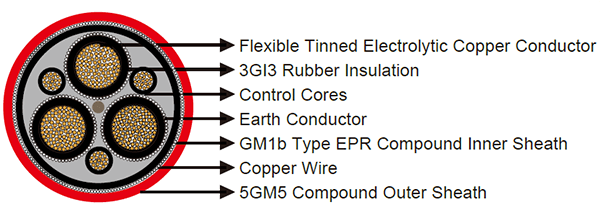

(N)TMCGEWÖU Cable Diagram
- (N)TMCGEWÖU - 3.6/6kV, 6/10kV, 8.7/15kV Cable

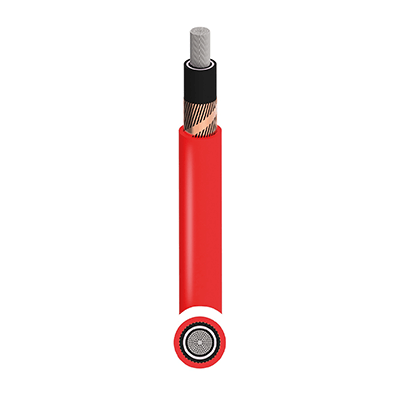

- (N)TMCGEWÖU - 12/20kV, 14/25kV, 18/30kV Cable
| VOLTAGE kV | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | ||||||
| 3.6/6 | 1 | 25 | 16E | 6.8 | 19.3 | 20.3 | 730 |
| 3.6/6 | 1 | 35 | 16E | 7.8 | 20.5 | 22.4 | 860 |
| 3.6/6 | 1 | 50 | 16E | 9.4 | 22 | 23.9 | 1030 |
| 3.6/6 | 1 | 70 | 16E | 11.2 | 23.8 | 25.7 | 1260 |
| 3.6/6 | 1 | 95 | 16E | 12.7 | 26.4 | 28.3 | 1550 |
| 3.6/6 | 1 | 120 | 16E | 14.4 | 28.2 | 30.2 | 1840 |
| 3.6/6 | 1 | 150 | 25E | 16.3 | 30.6 | 32.6 | 2280 |
| 3.6/6 | 1 | 185 | 25E | 17.6 | 32.5 | 34.5 | 2630 |
| 3.6/6 | 1 | 240 | 25E | 20.6 | 35.6 | 37.6 | 3270 |
| 6/10 | 1 | 25 | 16E | 6.8 | 19.3 | 20.9 | 770 |
| 6/10 | 1 | 35 | 16E | 7.8 | 20.5 | 23 | 900 |
| 6/10 | 1 | 50 | 16E | 9.4 | 22 | 24.5 | 1070 |
| 6/10 | 1 | 70 | 16E | 11.2 | 23.8 | 26.3 | 1300 |
| 6/10 | 1 | 95 | 16E | 12.7 | 26.4 | 28.9 | 1590 |
| 6/10 | 1 | 120 | 16E | 14.4 | 28.2 | 30.9 | 1880 |
| 6/10 | 1 | 150 | 25E | 16.3 | 30.6 | 33.3 | 2320 |
| 6/10 | 1 | 185 | 25E | 17.6 | 32.5 | 35.2 | 2670 |
| 6/10 | 1 | 240 | 25E | 20.6 | 35.6 | 38.3 | 3310 |
| 8.7/15 | 1 | 25 | 16E | 6.8 | 21.2 | 23.1 | 820 |
| 8.7/15 | 1 | 35 | 16E | 7.8 | 22.1 | 24 | 930 |
| 8.7/15 | 1 | 50 | 16E | 9.4 | 23.6 | 25.5 | 1110 |
| 8.7/15 | 1 | 70 | 16E | 11.2 | 26 | 27.9 | 1370 |
| 8.7/15 | 1 | 95 | 16E | 12.7 | 27.6 | 29.5 | 1620 |
| 8.7/15 | 1 | 120 | 16E | 14.4 | 29.4 | 31.4 | 1910 |
| 8.7/15 | 1 | 150 | 25E | 16.3 | 32.8 | 34.8 | 2430 |
| 8.7/15 | 1 | 185 | 25E | 17.6 | 33.8 | 35.8 | 2720 |
| 8.7/15 | 1 | 240 | 25E | 20.6 | 37.8 | 39.8 | 3450 |
| VOLTAGE kV | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | ||||||
| 12/20 | 1 | 25 | 16E | 6.8 | 22.4 | 24.3 | 870 |
| 12/20 | 1 | 35 | 16E | 7.8 | 23.1 | 25 | 970 |
| 12/20 | 1 | 50 | 16E | 9.4 | 25.4 | 27.3 | 1200 |
| 12/20 | 1 | 70 | 16E | 11.2 | 27.2 | 29.1 | 1440 |
| 12/20 | 1 | 95 | 16E | 12.7 | 28.8 | 30.8 | 1690 |
| 12/20 | 1 | 120 | 16E | 14.4 | 31.6 | 33.6 | 2060 |
| 12/20 | 1 | 150 | 25E | 16.3 | 34 | 36 | 2510 |
| 12/20 | 1 | 185 | 25E | 17.6 | 35 | 37 | 2810 |
| 12/20 | 1 | 240 | 25E | 20.6 | 39 | 41 | 3540 |
| 14/25 | 1 | 25 | 16E | 6.8 | 24.6 | 26.5 | 980 |
| 14/25 | 1 | 35 | 16E | 7.8 | 26.1 | 28 | 1130 |
| 14/25 | 1 | 50 | 16E | 9.4 | 27.6 | 29.5 | 1320 |
| 14/25 | 1 | 70 | 16E | 11.2 | 29.4 | 31.4 | 1570 |
| 14/25 | 1 | 95 | 16E | 12.7 | 32 | 34 | 1900 |
| 14/25 | 1 | 120 | 16E | 14.4 | 33.8 | 35.8 | 2210 |
| 14/25 | 1 | 150 | 25E | 16.3 | 36.3 | 38.3 | 2680 |
| 14/25 | 1 | 185 | 25E | 17.6 | 38.2 | 40.2 | 3060 |
| 14/25 | 1 | 240 | 25E | 20.6 | 41.1 | 44 | 3730 |
| 18/30 | 1 | 25 | 16E | 6.8 | 27.2 | 29.1 | 1120 |
| 18/30 | 1 | 35 | 16E | 7.8 | 28.1 | 30 | 1240 |
| 18/30 | 1 | 50 | 16E | 9.4 | 29.6 | 31.6 | 1440 |
| 18/30 | 1 | 70 | 16E | 11.2 | 32.4 | 34.4 | 1770 |
| 18/30 | 1 | 95 | 16E | 12.7 | 34.1 | 36.1 | 2040 |
| 18/30 | 1 | 120 | 16E | 14.4 | 35.9 | 37.9 | 2360 |
| 18/30 | 1 | 150 | 25E | 16.3 | 39.3 | 41.3 | 2920 |
| 18/30 | 1 | 185 | 25E | 17.6 | 40.1 | 43 | 3230 |
| 18/30 | 1 | 240 | 25E | 20.6 | 43.1 | 46 | 3910 |
