(N)TSCGECECWÖU Cable Description
(N)TSCGECECWÖU cable features a copper braided protective earth conductor and also has control and monitoring conductors to support working operations. The cable is capable of withstanding a certain degree of torsional stress, with a maximum torsional stress of 25 ohms/meter.
The cable also features a zero halogen (ZH) polyurethane (PUR) sheath, which releases toxic fumes in the event of a fire that can be hazardous to life and vital equipment.

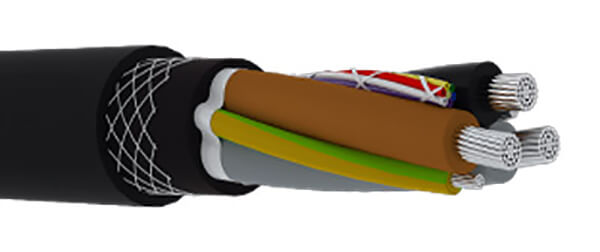

(N)TSCGECECWÖU Cable Construction
| (N)TSCGECECWÖU - 3.6/6kV and 6/10kV Cable | (N)TSCGECECWÖU - 3.6/6kV and 6/10kV ZH Cable | (N)TSCGECECWÖU - 8.7/15kV and 12/20kV Cable | (N)TSCGECECWÖU - 8.7/15kV and 12/20kV ZH Cable | |
|---|---|---|---|---|
| VOLTAGE | 3.6/6kV, 6/10kV | 8.7/15kV, 12/20kV | ||
| PHASE CONDUCTOR | Class 5 Flexible Stranded Tinned Copper | |||
| INSULATION | Rubber Compound | |||
| SEMI-CONDUCTIVE LAYERS | Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation | |||
| PROTECTIVE EARTH CONDUCTOR | Individual Copper Wire Screen | |||
| CONTROL CONDUCTOR | Class 5 Flexible Stranded Tinned Copper | |||
| CENTRAL FILLER | Semi-Conductive Compound on a Textile Polyester Support | |||
| INNER SHEATH | Rubber Compound | Halogen-Free Compound | Rubber Compound | Halogen-Free Compound |
| MONITORING CONDUCTOR | Copper Wire Screen over the Inner Sheath | |||
| OUTER SHEATH | Rubber | Halogen-Free PUR (Polyurethane) | Rubber | Halogen-Free PUR (Polyurethane) |
(N)TSCGECECWÖU Cable Characteristics
| (N)TSCGECECWÖU - 3.6/6kV and 6/10kV Cable | (N)TSCGECECWÖU - 3.6/6kV and 6/10kV ZH Cable | (N)TSCGECECWÖU - 8.7/15kV and 12/20kV Cable | (N)TSCGECECWÖU - 8.7/15kV and 12/20kV ZH Cable | |
|---|---|---|---|---|
| Voltage Rating (Uo/U) | 3.6/6kV; 6/10kV | 8.7/15kV; 12/20kV | ||
| Test Voltage | 3.6/6kV: 11kV; 6/10kV: 17kV | 8.7/15kV: 24kV; 12/20kV: 29kV | ||
| Ambient Temperature | Fixed: -40°C to +80°C Flexed: -25°C to +80°C | Fixed: -50°C to +80°C Flexed: -25°C to +80°C | Fixed: -40°C to +80°C Flexed: -25°C to +80°C | Fixed: -50°C to +80°C Flexed: -25°C to +80°C |
| Maximum Short Circuit Temperature | +250°C | - | ||
| Minimum Bending Radius | Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
|||
| Maximum Torsional Stress | ±25°/m | - | ||
(N)TSCGECECWÖU Cable Meaning
- (N): This indicates a standard (German VDE) designation, often found in cable names for flexible cables.
- TS: Suggests a trailing cable, often used in mining and other applications where the cable is subjected to repeated movement and bending.
- G: Indicates a flexible copper conductor.
- C: Likely refers to the cable being a control cable.
- E: Usually means a protective earth conductor.
- C: Indicate a control core, or could be related to the protective earth.
- WÖU: This is a German abbreviation indicating a heavy-duty, flexible, and weather-resistant cable, often with a robust outer sheath.
- (N)TSCGECECWÖU - 3.6/6kV and 6/10kV Cable
- (N)TSCGECECWÖU - 3.6/6kV and 6/10kV ZH Cable

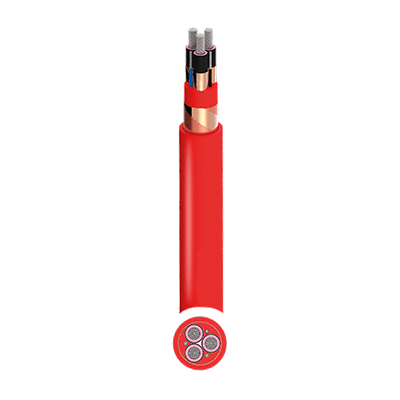

- (N)TSCGECECWÖU - 8.7/15kV and 12/20kV Cable

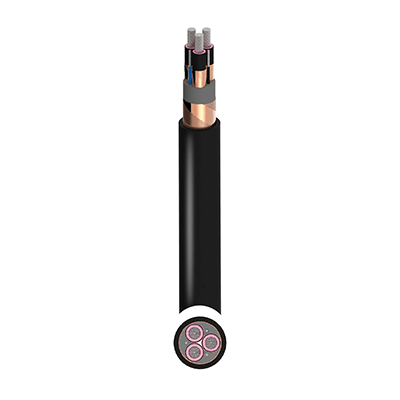

- (N)TSCGECECWÖU - 8.7/15kV and 12/20kV ZH Cable
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH +CONTROL+ÜL) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Control Conductor | ||||||
| 3.6/6 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 45.4 | 48.8 | 3010 |
| 3.6/6 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 46.9 | 50.4 | 3390 |
| 3.6/6 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 50 | 53.6 | 4050 |
| 3.6/6 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 55.6 | 59.4 | 5260 |
| 3.6/6 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 59.9 | 63.9 | 6460 |
| 3.6/6 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 64 | 68.4 | 7820 |
| 3.6/6 | 3+3+3+ÜL | 150 | 70/3E | 2.5ST | 16.3 | 70.4 | 75 | 9430 |
| 6/10 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 45.4 | 49.4 | 3050 |
| 6/10 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 46.9 | 51 | 3430 |
| 6/10 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 50 | 54.2 | 4090 |
| 6/10 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 55.6 | 60 | 5300 |
| 6/10 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 59.9 | 64.5 | 6500 |
| 6/10 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 64 | 69.1 | 7860 |
| 6/10 | 3+3+3+ÜL | 150 | 70/3E | 2.5ST | 16.3 | 70.4 | 75.7 | 9470 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH +CONTROL+ÜL) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Control Conductor | |||||||
| 3.6/6 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 45.4 | 48.8 | 1125 | 2960 |
| 3.6/6 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 46.9 | 50.4 | 1575 | 3340 |
| 3.6/6 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 50 | 53.6 | 2250 | 3990 |
| 3.6/6 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 55.6 | 59.4 | 3150 | 5180 |
| 3.6/6 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 59.9 | 63.9 | 4275 | 6370 |
| 3.6/6 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 64 | 68.4 | 5400 | 7730 |
| 6/10 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 45.4 | 49.4 | 1125 | 3000 |
| 6/10 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 46.9 | 51 | 1575 | 3380 |
| 6/10 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 50 | 54.2 | 2250 | 4030 |
| 6/10 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 55.6 | 60 | 3150 | 5220 |
| 6/10 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 59.9 | 64.5 | 4275 | 6410 |
| 6/10 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 64 | 69.1 | 5400 | 7770 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH +CONTROL+ÜL) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Control Conductor | |||||||
| 8.7/15 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 48 | 51.5 | 1125 | 3590 |
| 8.7/15 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 49.5 | 53.1 | 1575 | 3990 |
| 8.7/15 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 54.4 | 58.2 | 2250 | 4880 |
| 8.7/15 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 58.2 | 62.2 | 3150 | 5950 |
| 8.7/15 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 61.4 | 65.7 | 4275 | 7030 |
| 8.7/15 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 67.4 | 71.9 | 5400 | 8690 |
| 12/20 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 50.5 | 54.1 | 1125 | 3860 |
| 12/20 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 52.3 | 56 | 1575 | 4260 |
| 12/20 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 57.5 | 61.4 | 2250 | 5190 |
| 12/20 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 61 | 65.3 | 3150 | 6280 |
| 12/20 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 66.4 | 70.9 | 4275 | 7640 |
| 12/20 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 70.5 | 75.2 | 5400 | 9050 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH +CONTROL+ÜL) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Control Conductor | |||||||
| 8.7/15 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 48 | 51.5 | 1125 | 3540 |
| 8.7/15 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 49.5 | 53.1 | 1575 | 3930 |
| 8.7/15 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 54.4 | 58.2 | 2250 | 4810 |
| 8.7/15 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 58.2 | 62.2 | 3150 | 5880 |
| 8.7/15 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 61.4 | 65.7 | 4275 | 6950 |
| 12/20 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 50.5 | 54.1 | 1125 | 3800 |
| 12/20 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 52.3 | 56 | 1575 | 4190 |
| 12/20 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 57.5 | 61.4 | 2250 | 5120 |
| 12/20 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 61 | 65.3 | 3150 | 6200 |
| 12/20 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 66.4 | 70.9 | 4275 | 7550 |
