(N)TSCGECEWÖU Cable Description
(N)TSCGECEWÖU cable outer sheath is made of a rugged rubber compound that protects against mechanical stress, abrasion and environmental factors. The separate copper wire shield acts as a protective ground conductor for safety and grounding.

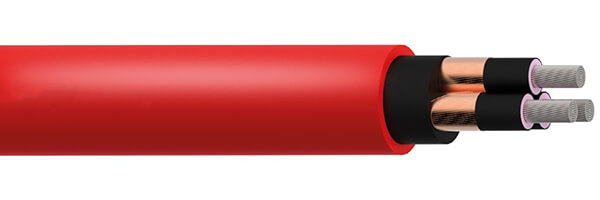

(N)TSCGECEWÖU Cable Construction
| (N)TSCGECEWÖU Cable | (N)TSCGECEWÖU - ATB Cable | (N)TSCGECEWÖU ATB Cable (Ground Check Conductor) | (N)TSCGECEWÖU - Submersible Cable | |
|---|---|---|---|---|
| VOLTAGE | 3.6/6kV, 6/10kV 8.7/15kV, 12/20kV | 1.8/3kV, 3.6/6kV, 6/10kV 8.7/15kV, 12/20kV | 3.6/6kV, 6/10kV 8.7/15kV, 12/20kV |
|
| PHASE CONDUCTOR | Class 5 Flexible Stranded Tinned Copper | |||
| INSULATION | Rubber Compound | |||
| SEMI-CONDUCTIVE LAYERS | Semi-Conductive Tape over the Conductor and Inner and Outer Semi-Conductive Rubber Layer on the Insulation | |||
| PROTECTIVE EARTH CONDUCTOR | Individual Copper Wire Screen | Individual Copper Wire Braid | Individual Copper Braid 2 x Copper Earth Conductors 1 x Copper Checking Earth Wiring Conductor | Individual Copper Wire Braid |
| CENTRAL FILLER | Rubber Compound on a Textile Polyester Support | |||
| INNER SHEATH | Rubber Compound | Abrasion Resistant Rubber Compound | EPR Rubber Compound with Water Proofing | |
| ANTI-TORSION BRAID | - | Polyester Braid between the Inner and Outer Sheath | - | |
| OUTER SHEATH | Rubber | Abrasion Resistant Rubber Compound | CM Rubber Compound Water Proofing | |
(N)TSCGECEWÖU Cable Characteristics
| (N)TSCGECEWÖU Cable | (N)TSCGECEWÖU - ATB Cable | (N)TSCGECEWÖU ATB Cable (Ground Check Conductor) | (N)TSCGECEWÖU - Submersible Cable | |
|---|---|---|---|---|
| Ambient Temperature | Fixed: -40ºC to +80°C | Fixed: -25ºC to +80°C Flexed: -40°C to +80°C | Fixed: -40ºC to +80°C; Flexed: -25°C to +80°C | Fixed: -40ºC to +80°C; Flexed: -25°C to +60°C |
| Maximum Short Circuit Temperature | +250°C | +40°C | ||
| Minimum Bending Radius | Fixed: 6 x overall diameter | Fixed: 6 x overall diameter Flexed: 10 x overall diameter |
||
(N)TSCGECEWÖU Cable Applications
(N)TSCGECEWÖU: Flexible cable for fixed energy distribution in mines and alongside material handling equipment.
(N)TSCGECEWÖU – ATB: Flexible cable for providing energy supply to heavy mobile equipment during trailing operations in opencast mines. Applications include drag lines, shovels, dredges and drills performing under extreme mechanical stresses and abrasion.
(N)TSCGECEWÖU – ATB (Ground conductor): The ATB cable with Ground Check Conductor has additional Earth Protective Conductors over and above the Protective Earth Conductor of individual copper braid. The cable benefits from 2x copper earth conductors and 1x copper checking earth wiring conductor.
(N)TSCGECEWÖU – Submersible: Suitable for depths up to 300m and for permanent use in salty or brackish water, these flexible supply cables are used for applications such as pumps, dredges and floating docks, as well as trailing operations of opencast mining equipment.
- (N)TSCGECEWÖU - 3.6/6kV and 6/10kV Cable
- (N)TSCGECEWÖU - 8.7/15kV and 12/20kV Cable

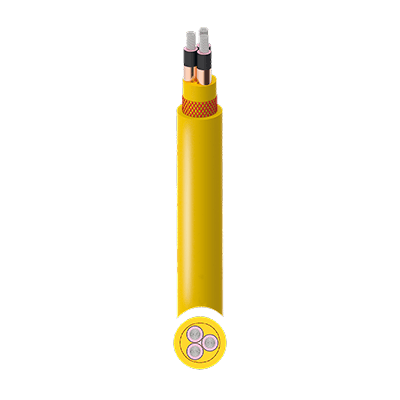

- (N)TSCGECEWÖU - 3.6/6kV and 6/10kV ATB Cable
- (N)TSCGECEWÖU - 8.7/15kV and 12/20kV ATB Cable
- (N)TSCGECEWÖU - 1.8/3kV, 3.6/6kV and 6/10kV ATB Cable (Ground Check Conductor)

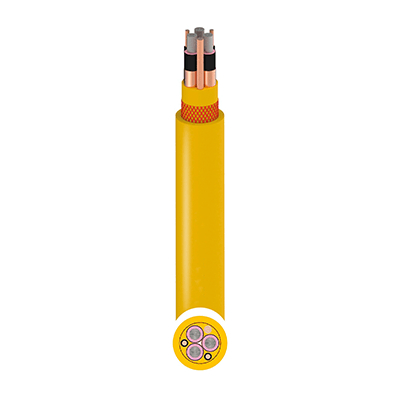

- (N)TSCGECEWÖU - 8.7/15kV and 12/20kV ATB Cable (Ground Check Conductor)

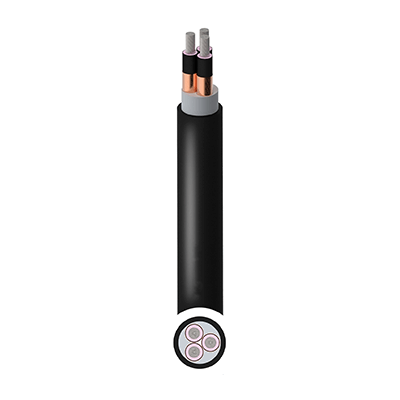

- (N)TSCGECEWÖU - 3.6/6kV and 6/10kV Submersible Cable
- (N)TSCGECEWÖU - 8.7/15kV and 12/20kV Submersible Cable
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | ||||||
| 3.6/6 | 3+3 | 25 | 25/3E | 6.8 | 43.9 | 45.6 | 2870 |
| 3.6/6 | 3+3 | 35 | 25/3E | 7.8 | 45.4 | 47.1 | 3230 |
| 3.6/6 | 3+3 | 50 | 25/3E | 9.4 | 48.5 | 50.3 | 3860 |
| 3.6/6 | 3+3 | 70 | 35/3E | 11.2 | 54.1 | 55.9 | 5010 |
| 3.6/6 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.2 | 6150 |
| 3.6/6 | 3+3 | 120 | 70/3E | 14.4 | 62.5 | 64.8 | 7450 |
| 3.6/6 | 3+3 | 150 | 70/3E | 16.3 | 68.9 | 71.3 | 8980 |
| 3.6/6 | 3+3 | 185 | 90/3E | 17.6 | 71.9 | 74.3 | 10290 |
| 6/10 | 3+3 | 25 | 25/3E | 6.8 | 43.9 | 46.2 | 2910 |
| 6/10 | 3+3 | 35 | 25/3E | 7.8 | 45.4 | 47.7 | 3270 |
| 6/10 | 3+3 | 50 | 25/3E | 9.4 | 48.5 | 50.9 | 3900 |
| 6/10 | 3+3 | 70 | 35/3E | 11.2 | 54.1 | 56.5 | 5050 |
| 6/10 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.8 | 6190 |
| 6/10 | 3+3 | 120 | 70/3E | 14.4 | 62.5 | 65.5 | 7490 |
| 6/10 | 3+3 | 150 | 70/3E | 16.3 | 68.9 | 72 | 9020 |
| 6/10 | 3+3 | 185 | 90/3E | 17.6 | 71.9 | 75 | 10330 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 8.7/15 | 3+3 | 25 | 25/3E | 6.8 | 47.3 | 49 | 1125 | 3200 |
| 8.7/15 | 3+3 | 35 | 25/3E | 7.8 | 48.8 | 50.6 | 1575 | 3570 |
| 8.7/15 | 3+3 | 50 | 25/3E | 9.4 | 53.7 | 55.5 | 2250 | 4440 |
| 8.7/15 | 3+3 | 70 | 35/3E | 11.2 | 57.5 | 59.3 | 3150 | 5410 |
| 8.7/15 | 3+3 | 95 | 50/3E | 12.7 | 60.8 | 63.1 | 4275 | 6480 |
| 8.7/15 | 3+3 | 120 | 70/3E | 14.4 | 66.8 | 69.1 | 5400 | 8060 |
| 8.7/15 | 3+3 | 150 | 70/3E | 16.3 | 71.5 | 73.9 | 6750 | 9370 |
| 12/20 | 3+3 | 25 | 25/3E | 6.8 | 49.8 | 51.6 | 1125 | 3450 |
| 12/20 | 3+3 | 35 | 25/3E | 7.8 | 51.3 | 53.1 | 1575 | 3810 |
| 12/20 | 3+3 | 50 | 25/3E | 9.4 | 56.3 | 58.1 | 2250 | 4740 |
| 12/20 | 3+3 | 70 | 35/3E | 11.2 | 60.1 | 61.9 | 3150 | 5730 |
| 12/20 | 3+3 | 95 | 50/3E | 12.7 | 63.3 | 65.6 | 4275 | 6810 |
| 12/20 | 3+3 | 120 | 70/3E | 14.4 | 69.3 | 71.7 | 5400 | 8420 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 3.6/6 | 3+3 | 25 | 25/3E | 6.8 | 43.4 | 45.1 | 1125 | 2850 |
| 3.6/6 | 3+3 | 35 | 25/3E | 7.8 | 45 | 46.7 | 1575 | 3200 |
| 3.6/6 | 3+3 | 50 | 25/3E | 9.4 | 48.1 | 49.8 | 2250 | 3850 |
| 3.6/6 | 3+3 | 70 | 35/3E | 11.2 | 53.7 | 55.5 | 3150 | 4980 |
| 3.6/6 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.2 | 4275 | 6200 |
| 3.6/6 | 3+3 | 120 | 70/3E | 14.4 | 62.9 | 65.2 | 5400 | 7580 |
| 3.6/6 | 3+3 | 150 | 70/3E | 16.3 | 69.3 | 71.7 | 6750 | 9090 |
| 6/10 | 3+3 | 25 | 25/3E | 6.8 | 43.4 | 45.7 | 1125 | 2890 |
| 6/10 | 3+3 | 35 | 25/3E | 7.8 | 45 | 47.3 | 1575 | 3240 |
| 6/10 | 3+3 | 50 | 25/3E | 9.4 | 48.1 | 50.4 | 2250 | 3890 |
| 6/10 | 3+3 | 70 | 35/3E | 11.2 | 53.7 | 56.1 | 3150 | 5020 |
| 6/10 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.8 | 4275 | 6240 |
| 6/10 | 3+3 | 120 | 70/3E | 14.4 | 62.9 | 65.9 | 5400 | 7620 |
| 6/10 | 3+3 | 150 | 70/3E | 16.3 | 69.3 | 72.4 | 6750 | 9130 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 8.7/15 | 3+3 | 25 | 25/3E | 6.8 | 46.9 | 48.6 | 1125 | 3180 |
| 8.7/15 | 3+3 | 35 | 25/3E | 7.8 | 48.3 | 50 | 1575 | 3570 |
| 8.7/15 | 3+3 | 50 | 25/3E | 9.4 | 53.3 | 55.1 | 2250 | 4420 |
| 8.7/15 | 3+3 | 70 | 35/3E | 11.2 | 57.1 | 58.9 | 3150 | 5410 |
| 8.7/15 | 3+3 | 95 | 50/3E | 12.7 | 60.8 | 63.1 | 4257 | 6500 |
| 8.7/15 | 3+3 | 120 | 70/3E | 14.4 | 67.2 | 69.5 | 5400 | 8150 |
| 12/20 | 3+3 | 25 | 25/3E | 6.8 | 49.4 | 51.2 | 1125 | 3450 |
| 12/20 | 3+3 | 35 | 25/3E | 7.8 | 50.9 | 52.7 | 1575 | 3820 |
| 12/20 | 3+3 | 50 | 25/3E | 9.4 | 55.8 | 57.6 | 2250 | 4720 |
| 12/20 | 3+3 | 70 | 35/3E | 11.2 | 59.6 | 61.4 | 3150 | 5690 |
| 12/20 | 3+3 | 95 | 50/3E | 12.7 | 63.3 | 65.6 | 4257 | 6860 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH + GROUND CHECK CONDUCTOR) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Ground Check Conductor | |||||||
| 1.8/3 | 3+2+1 | 25 | 45713 | 10 | 6.8 | 38.2 | 42.3 | 1125 | 2530 |
| 1.8/3 | 3+2+1 | 35 | 45713 | 10 | 7.8 | 39.7 | 44 | 1575 | 2930 |
| 1.8/3 | 3+2+1 | 50 | 45713 | 10 | 9.4 | 42.7 | 47.2 | 2250 | 3540 |
| 1.8/3 | 3+2+1 | 70 | 12816 | 10 | 11.2 | 48.1 | 53 | 3150 | 4730 |
| 1.8/3 | 3+2+1 | 95 | 18295 | 10 | 12.7 | 53 | 58.3 | 4257 | 5930 |
| 1.8/3 | 3+2+1 | 120 | 25600 | 10 | 14.4 | 57.4 | 63.1 | 5400 | 7270 |
| 1.8/3 | 3+2+1 | 150 | 25600 | 10 | 16.3 | 63.8 | 70 | 6750 | 8920 |
| 1.8/3 | 3+2+1 | 185 | 34731 | 10 | 17.6 | 65.6 | 71.9 | 8325 | 10220 |
| 3.6/6 | 3+2+1 | 25 | 45713 | 10 | 6.8 | 45.4 | 50.1 | 1125 | 3300 |
| 3.6/6 | 3+2+1 | 35 | 45713 | 10 | 7.8 | 46.7 | 51.5 | 1575 | 3710 |
| 3.6/6 | 3+2+1 | 50 | 45713 | 10 | 9.4 | 51.5 | 56.7 | 2250 | 4600 |
| 3.6/6 | 3+2+1 | 70 | 12816 | 10 | 11.2 | 55.2 | 60.7 | 3150 | 5710 |
| 3.6/6 | 3+2+1 | 95 | 18295 | 10 | 12.7 | 58.9 | 64.8 | 4257 | 6820 |
| 3.6/6 | 3+2+1 | 120 | 25600 | 10 | 14.4 | 65.1 | 71.4 | 5400 | 8540 |
| 3.6/6 | 3+2+1 | 150 | 25600 | 10 | 16.3 | 69.9 | 76.3 | 6750 | 9890 |
| 6/10 | 3+2+1 | 25 | 45713 | 10 | 6.8 | 48.1 | 53 | 1125 | 3640 |
| 6/10 | 3+2+1 | 35 | 45713 | 10 | 7.8 | 49.5 | 54.6 | 1575 | 4070 |
| 6/10 | 3+2+1 | 50 | 45713 | 10 | 9.4 | 54.2 | 59.7 | 2250 | 4980 |
| 6/10 | 3+2+1 | 70 | 12816 | 10 | 11.2 | 57.9 | 63.6 | 3150 | 6070 |
| 6/10 | 3+2+1 | 95 | 18295 | 10 | 12.7 | 61.6 | 67.7 | 4257 | 7280 |
| 6/10 | 3+2+1 | 120 | 45713 | 10 | 14.4 | 67.9 | 74.4 | 5400 | 9070 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH + GROUND CHECK CONDUCTOR) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Ground Check Conductor | |||||||
| 8.7/15 | 3+2+1 | 25 | 45713 | 10 | 6.8 | 53.9 | 59.3 | 1125 | 4490 |
| 8.7/15 | 3+2+1 | 35 | 45713 | 10 | 7.8 | 55.3 | 60.8 | 1575 | 4920 |
| 8.7/15 | 3+2+1 | 50 | 45713 | 10 | 9.4 | 58.5 | 64.2 | 2250 | 5700 |
| 8.7/15 | 3+2+1 | 70 | 12816 | 10 | 11.2 | 64.2 | 70.5 | 3150 | 7200 |
| 8.7/15 | 3+2+1 | 95 | 18295 | 10 | 12.7 | 67.9 | 74.4 | 4257 | 8480 |
| 12/20 | 3+2+1 | 25 | 45713 | 10 | 6.8 | 58.2 | 63.9 | 1125 | 5110 |
| 12/20 | 3+2+1 | 35 | 45713 | 10 | 7.8 | 59.8 | 65.7 | 1575 | 5580 |
| 12/20 | 3+2+1 | 50 | 45713 | 10 | 9.4 | 64.6 | 70.9 | 2250 | 6550 |
| 12/20 | 3+2+1 | 70 | 12816 | 10 | 11.2 | 68.3 | 74.8 | 3150 | 7800 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 3.6/6 | 3+3 | 25 | 25/3E | 6.8 | 43.4 | 45.1 | 1125 | 2830 |
| 3.6/6 | 3+3 | 35 | 25/3E | 7.8 | 45 | 46.7 | 1575 | 3180 |
| 3.6/6 | 3+3 | 50 | 25/3E | 9.4 | 48.1 | 49.8 | 2250 | 3830 |
| 3.6/6 | 3+3 | 70 | 35/3E | 11.2 | 53.7 | 55.5 | 3150 | 4960 |
| 3.6/6 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.2 | 4257 | 6170 |
| 3.6/6 | 3+3 | 120 | 70/3E | 14.4 | 62.9 | 65.2 | 5400 | 7540 |
| 3.6/6 | 3+3 | 150 | 70/3E | 16.3 | 69.3 | 71.7 | 6750 | 9050 |
| 3.6/6 | 3+3 | 185 | 95/3E | 17.6 | 72.1 | 74.5 | 8325 | 10350 |
| 6/10 | 3+3 | 25 | 25/3E | 6.8 | 43.4 | 45.7 | 1125 | 2870 |
| 6/10 | 3+3 | 35 | 25/3E | 7.8 | 45 | 47.3 | 1575 | 3220 |
| 6/10 | 3+3 | 50 | 25/3E | 9.4 | 48.1 | 50.4 | 2250 | 3870 |
| 6/10 | 3+3 | 70 | 35/3E | 11.2 | 53.7 | 56.1 | 3150 | 5000 |
| 6/10 | 3+3 | 95 | 50/3E | 12.7 | 58.4 | 60.8 | 4257 | 6210 |
| 6/10 | 3+3 | 120 | 70/3E | 14.4 | 62.9 | 65.9 | 5400 | 7580 |
| 6/10 | 3+3 | 150 | 70/3E | 16.3 | 69.3 | 72.4 | 6750 | 9090 |
| 6/10 | 3+3 | 185 | 95/3E | 17.6 | 72.1 | 75.2 | 8325 | 10390 |
| VOLTAGE kV | NO. OF CORES (PHASE + EARTH) | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||||
| 8.7/15 | 3+3 | 25 | 25/3E | 6.8 | 49.4 | 51.2 | 1125 | 3430 |
| 8.7/15 | 3+3 | 35 | 25/3E | 7.8 | 50.9 | 52.7 | 1575 | 3800 |
| 8.7/15 | 3+3 | 50 | 25/3E | 9.4 | 55.8 | 57.6 | 2250 | 4700 |
| 8.7/15 | 3+3 | 70 | 35/3E | 11.2 | 59.6 | 61.4 | 3150 | 5670 |
| 8.7/15 | 3+3 | 95 | 50/3E | 12.7 | 63.3 | 65.6 | 4257 | 6830 |
| 8.7/15 | 3+3 | 120 | 70/3E | 14.4 | 69.8 | 72.2 | 5400 | 8520 |
| 12/20 | 3+3 | 25 | 25/3E | 6.8 | 55.9 | 57.7 | 1125 | 4160 |
| 12/20 | 3+3 | 35 | 25/3E | 7.8 | 57.3 | 59.1 | 1575 | 4560 |
| 12/20 | 3+3 | 50 | 25/3E | 9.4 | 60.5 | 62.3 | 2250 | 5300 |
| 12/20 | 3+3 | 70 | 35/3E | 11.2 | 66.1 | 67.9 | 3150 | 6580 |
| 12/20 | 3+3 | 95 | 50/3E | 12.7 | 69.8 | 72.2 | 4257 | 7740 |
