(N)TSKCGEWÖU Cable

(N)TSKCGEWÖU Cable is a medium voltage cable with integrated optical fiber for data and monitoring, designed for demanding applications such as winding cranes, hoists and conveyors.

(N)TSKCGEWÖU Cable Description

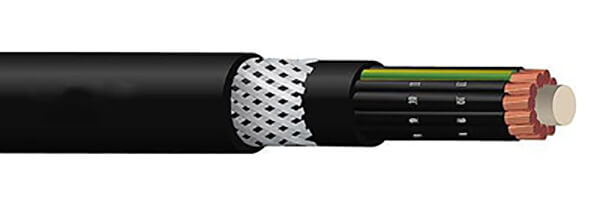

(N)TSKCGEWÖU Cable has flexible tinned copper conductor, rubber insulation and a strong rubber outer sheath. The cable consists of 3 power cores, a flexible ground core and optical fiber core, usually in a 3+3 structure.

(N)TSKCGEWÖU Cable are available in various voltage classes including 3.6/6kV, 6/10kV, 8.7/15kV and 12/20kV. They are designed for high speed winding applications in harsh environments and can withstand significant torsional stress (up to ±25°/m) and tensile loads (up to 30N/mm²).

(N)TSKCGEWÖU Cable Construction

VOLTAGE
3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV
PHASE CONDUCTOR
Class 5 Flexible Stranded Tinned Conductor
INSULATION
Rubber Compound (Phase Conductor only)
EARTH CONDUCTOR
Class 5 Flexible Tinned Copper Conductor
CENTRAL FILLER
Semi-conductive Compound
FIBRE OPTICS
50/125 Multimode, 62.5/125 Multimode, 9/125 Singlemode
INNER SHEATH
Rubber Compound
ANTI-TWISTING ELEMENT
Polyester Braid
OUTER SHEATH
Rubber

(N)TSKCGEWÖU Cable Characteristics

Maximum Torsional Stress: ± 25°/m
Maximum Tensile Load: 30N/mm2
Maximum Working Speed: 240m/min
Temperature Rating
Maximum Short-Circuit temperature:250°C
Flexing: -30°C to + 90°C
Fixed: -50°C to + 90°C
Minimum Bending Radius
Fixed: 6x overall diameter
Flexed: 10 x overall diameter

(N)TSKCGEWÖU Cable Specifications

VOLTAGE kV	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA OF PHASE CONDUCTOR mm²	NOMINAL CROSS SECTIONAL AREA OF EARTH CONDUCTOR mm²	NOMINAL OVERALL DIAMETER mm	MAXIMUM TENSILE LOAD N	NOMINAL WEIGHT kg/km
3.6/6	3+ 3	25	25	21.8	1500	2380
3.6/6	3+ 3	35	25	43.8	2100	2920
3.6/6	3+ 3	50	25	46.9	3000	3520
3.6/6	3+ 3	70	35	50.7	4200	4430
3.6/6	3+ 3	95	50	56.7	5700	5580
3.6/6	3+ 3	120	70	60.5	7200	6770
3.6/6	3+ 3	150	70	67.2	9000	8260
6/10	3+ 3	25	25	39.8	1500	2380
6/10	3+ 3	35	25	43.8	2100	2920
6/10	3+ 3	50	25	46.9	3000	3520
6/10	3+ 3	70	35	50.7	4200	4430
6/10	3+ 3	95	50	56.7	5700	5640
6/10	3+ 3	120	70	60.5	7200	6830
6/10	3+ 3	150	70	67.2	9000	8320
8.7/15	3+ 3	25	25	45.6	1500	2860
8.7/15	3+ 3	35	25	47	2100	3210
8.7/15	3+ 3	50	25	50.3	3000	3830
8.7/15	3+ 3	70	35	55.9	4200	5000
8.7/15	3+ 3	95	50	59.3	5700	5870
8.7/15	3+ 3	120	70	65	7200	7370
8.7/15	3+ 3	150	70	69.7	9000	8590
12/20	3+ 3	25	25	47.3	1500	3080
12/20	3+ 3	35	25	49.7	2100	3460
12/20	3+ 3	50	20	54.6	3000	4310
12/20	3+ 3	70	35	58.4	4200	5310
12/20	3+ 3	95	50	62	5700	6180
12/20	3+ 3	120	70	67.6	7200	7730
12/20	3+ 3	150	70	72.2	9000	8970
