(N)TSWÖU-J Cable Description
(N)TSWÖU-J cables are designed to withstand extreme environments of severe abrasion, cutting, and tearing, suitable for powering mobile machinery and equipment in dry, wet, and submerged conditions. They are commonly used in underground and open-pit mines, tunnel equipment, crane systems, and heavy-duty trolley systems.

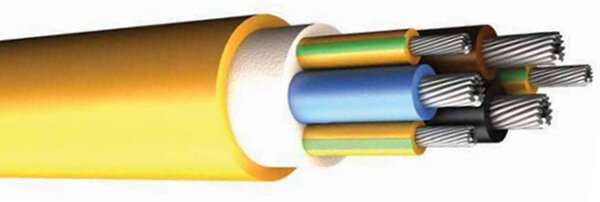

(N)TSWÖU-J Cable Construction
- Conductor
- Class 5 stranded tinned copper wire
- Insulation
- All cores are insulated with 3Gl3 compound
- Bedding
- Special elastomeric compound GM1 b
- Outer Sheath
- Heavy duty elastomer outer sheath 5GM5
(N)TSWÖU-J Cable Characteristics
- Rated Voltage
- 0.6/1 kV
- Temperature Range
- flexible use: -25°C to 80°C
- fixed installation: -40°C to 80°C
(N)TSWÖU-J Cable Specifications
| Cross-section (mm²) | MIN. OVERALL DIAMETER (mm) | MAX. OVERALL DIAMETER (mm) | APPROX. CABLE WEIGHT (kg/km) | COPPER WEIGHT (kg/km) |
|---|---|---|---|---|
| 3×25+3×25/3 | 40 | 44 | 2470 | 960 |
| 3×35+3×25/3 | 44.4 | 48.4 | 3150 | 1.344 |
| 3×95+3×50/3 | 59.9 | 63.9 | 6210 | 3.216 |
| 3×120+3×70/3 | 63.8 | 67.8 | 7430 | 4.128 |
| 3×150+3×70/3 | 69.2 | 73.2 | 8900 | 4.992 |
| 3×185+3×95/3 | 73.1 | 77.1 | 10330 | 6.24 |
