Type 41 and Type 61 Cable Description
Type 41 and Type 61 cables feature tinned copper conductors, EPR insulation, and a robust chloroprene (CR) outer sheath, offering resistance to UV radiation, chemical corrosion, abrasion, and oil. Suitable for both reel and non-reel industrial applications, including portable machinery, drilling rigs, fans, and submersible pumps.

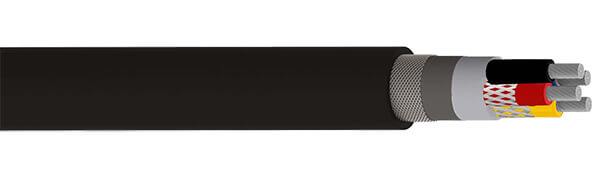

Type 41 cables typically have 3 shielded phase cores and 1 unshielded conductor/ground core, while Type 61 cables typically include 3 shielded power cores, 2 conductor cores, and 1 safety ground core.
Type 61a cables have a transparent TPU sheath with orange and silver reflective tape underneath.
Type 41 and Type 61 Cable Construction
| SANS Type 41 Cable | SANS Type 61a Cable | |
|---|---|---|
| Conductor | Class 5 flexible stranded tinned annealed Copper | |
| Insulation | EPR (Ethylene Propylene Rubber) | |
| Braid | Nylon /Tinned copper wires | |
| Lay | Three tinned copper/nylon braid screened power cores and one unscreened pilot core laid up in the right hand lay around rubber (RD1) filler centre | |
| Inner Sheath | CR (Polychloroprene Rubber) | |
| Reinforcement braid | Open nylon braid - minimum 16 strings | |
| Outer Sheath | CR (Polychloroprene Rubber) | TPU (Thermoplastic Polyurethane) |
Type 41 and Type 61 Cable Characteristics
- Voltage Rating
- 640/1100V
- Temperature Rating
- -25°C to +90°C
- Minimum Bending Radius
- 6 x Overall Diameter
- SANS Type 41 Cable
- SANS Type 61a Cable
| POWER CORES | PILOT CORES CORES | MAXIMUM TENSION kN | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| CONDUCTOR SIZE mm² | MAXIMUM WIRE DIAMETER mm | WIRE DIAMETER mm | MAXIMUM SCREEN WIRE DIAMETER mm | SCREEN FILLING FACTOR mm² | CONDUCTOR SIZE mm² | MAXIMUM WIRE DIAMETER mm | CONDUCTOR DIAMETER mm |
|||
| 2.5 | 0.26 | 2.1 | 0.21 | 8 | 2.5 | 0.26 | 2.1 | 0.15 | 20 | 712 |
| 4 | 0.31 | 2.7 | 0.21 | 9.5 | 4 | 0.31 | 2.7 | 0.24 | 25 | 902 |
| 6 | 0.31 | 3.3 | 0.21 | 10.4 | 6 | 0.31 | 3.3 | 0.36 | 26 | 1103 |
| 10 | 0.41 | 4.2 | 0.31 | 19 | 10 | 0.41 | 4.2 | 0.6 | 29 | 1563 |
| 16 | 0.41 | 5.3 | 0.31 | 22 | 16 | 0.41 | 5.3 | 0.95 | 33 | 2105 |
| 25 | 0.41 | 6.8 | 0.31 | 25 | 16 | 0.41 | 5.3 | 1.1 | 39 | 2705 |
| POWER CORES | PILOT CORES CORES | MAXIMUM TENSION kN | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| CONDUCTOR SIZE mm² | MAXIMUM WIRE DIAMETER mm | CONDUCTOR DIAMETER mm | MAXIMUM SCREEN WIRE DIAMETER mm | SCREEN CROSS-SECTION mm² | CONDUCTOR SIZE mm² | MAXIMUM WIRE DIAMETER mm | CONDUCTOR DIAMETER mm |
|||
| 95 | 0.51 | 13.5 | 0.31 | 43 | 16 | 0.41 | 5.3 | 4.3 | 59.1 | 6340 |
