SANS Type 63 & Type 66 Cable

Type 63 and Type 66 Cable Description

Type 63 and Type 66 cables feature tinned copper conductors, EPR insulation, and a chloroprene rubber (CR) sheath, offering UV resistance, oil resistance, and abrasion resistance. The cables consist of three-phase conductors, each with a nylon and tinned copper braided layer and an unshielded guide conductor.

These cables are suitable for open-pit mining machinery, including loaders, drilling rigs, draglines, and stacker cranes, as well as portable equipment in hazardous areas.

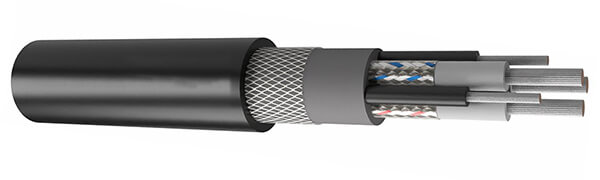

Type 63 and Type 66 Cable Construction

Conductor
Class 5 flexible stranded tinned annealed Copper
Insulation
EPR (Ethylene Propylene Rubber) thermosetting compound
Braid
Nylon /Tinned copper wires
Lay
Three tinned copper/nylon braid screened power cores and one
unscreened pilot core laid up in the right hand lay around
rubber (RD1) filler centre
Inner Sheath
CR (Polychloroprene Rubber)
Reinforcement braid
Open nylon braid – minimum 16 strings
Outer Sheath
CR (Polychloroprene Rubber)

Type 63 and Type 66 Cable Characteristics

	SANS Type 63 Cable	SANS Type 66 Cable
Voltage Rating	1.9/3.3 kV	3.8/6.6 kV
Temperature Rating	-25°C to +90°C
Minimum Bending Radius	6 x Overall Diameter

SANS Type 63 Cable
SANS Type 66 Cable

POWER CORES					PILOT CORE			MAXIMUM TENSION kN	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
CONDUCTOR SIZE mm²	MAXIMUM WIRE DIAMETER mm	CONDUCTOR DIAMETER mm	MAXIMUM SCREEN WIRE DIAMETER mm	SCREEN CROSS- SECTION mm²	CONDUCTOR SIZE mm²	MAXIMUM WIRE DIAMETER mm	CONDUCTOR DIAMETER mm	MAXIMUM TENSION kN	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
25	0.41	6.8	0.31	31	10	0.41	4.2	1.1	44	360
35	0.41	8.5	0.31	33	10	0.41	4.2	1.6	48	420
50	0.41	10.3	0.31	38	10	0.41	5.3	2.3	50.5	420
70	0.51	11.9	0.31	42	16	0.41	5.3	3.2	56	640
95	0.51	13.5	0.31	47	16	0.41	5.3	4.3	61	770
120	0.51	15.5	0.31	50	16	0.41	5.3	5.4	63	850
150	0.51	17.3	0.31	55	25	0.41	6.8	6.8	66	1050
185	0.51	20.2	0.31	60	25	0.41	6.8	8.3	72	1140
240	0.51	22.9	0.31	64	25	0.41	6.8	10.8	78	1400

POWER CORES					PILOT CORES CORES			MAXIMUM TENSION kN	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
CONDUCTOR SIZE mm²	MAXIMUM WIRE DIAMETER mm	CONDUCTOR DIAMETER mm	MAXIMUM SCREEN WIRE DIAMETER mm	SCREEN CROSS- SECTION mm²	CONDUCTOR SIZE mm²	MAXIMUM WIRE DIAMETER mm	CONDUCTOR DIAMETER mm	MAXIMUM TENSION kN	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
25	0.41	6.8	0.31	28	10	0.41	4.2	1.1	50.1	380
35	0.41	8.5	0.31	29	10	0.41	4.2	1.6	51.7	420
50	0.41	10.3	0.31	32	10	0.41	4.2	2.3	55.3	510
70	0.51	11.9	0.31	35	16	0.41	5.3	3.2	59.8	620
95	0.51	13.5	0.31	39	16	0.41	5.3	4.3	64.6	740
120	0.51	15.5	0.31	41	16	0.41	5.3	5.4	68.8	870
150	0.51	17.3	0.31	44	25	0.41	6.8	6.8	73.1	1020
185	0.51	20.2	0.31	47	25	0.41	6.8	8.3	77.8	1170
240	0.51	22.9	0.31	50	25	0.41	6.8	10.8	83.1	1410
