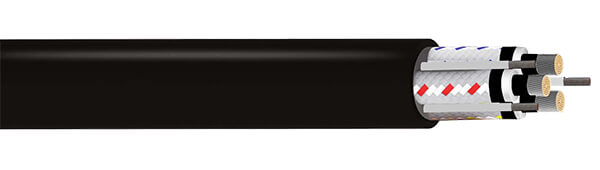

Type 440 and Type 441 Description
Type 440 cables feature a high-strength polychloroprene rubber (PCP) outer sheath, while Type 441 cables use a chlorosulfonated polyethylene (CSP) outer sheath, offering high mechanical impact resistance, water resistance, flame retardancy, UV resistance, ozone resistance, and oil resistance. Furthermore, Type 441 cables have an additional layer of polyamide yarn under the outer sheath for extra reinforcement.
These cables are configured in a 3+3+1 configuration—3 power cores, 3 grounding cores, and 1 indicator core. They comply with Australian and New Zealand standards (AS/NZS 2802: 2000, AS/NZS 1125:2001, and AS/NZS 2802:2003). They can power large mining machinery (loaders, draglines, drilling rigs).
Type 440 and Type 441 Construction
| Type 440 Rubber Mining Cable | Type 441 Rubber Mining Cable | |
|---|---|---|
| Conductor | Tinned annealed copper wires | |
| Conductor Screen | 1.1kV: Paper separator 3.3kV and above: Semi-conducting tape and thermosetting material |
|
| Insulation | EPR (Ethylene Propylene Rubber) type R-EP-90 | EPR (Ethylene Propylene Rubber) type R-EP-90 and XR-EP-90 |
| Insulation Screen | 1.1kV: Synthetic tape 3.3kV and above: Semi-conductive thermosetting compound |
|
| Braid | 3.3kV and above: Tinned copper/polyamide braid | - |
| Cable Assembly | Three screened power and three pilot cores laid up with right hand direction on cradle separator | Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core |
| Inner Sheath | - | Semi-conductive thermosetting compound |
| Armour | - | Polyamide yarns |
| Outer Sheath | Thermosetting compound HD-85-PCP - extra heavy duty, oil resistance and flame retardant | HD-CSP (Heavy duty Chlorosulphonated Polyethylene) extra heavy duty, oil resistant and flame retardant |
Type 440 and Type 441 Characteristics
| Type 440 Rubber Mining Cable | Type 441 Rubber Mining Cable | |
|---|---|---|
| Voltage Rating | Type 440.1 - 1.1kV Type 440.3 - 3.3kV Type 440.6 - 6.6kV Type 440.11 - 11kV Type 440.22 - 22kV | Type 441.1 - 1.1kV Type 441.3 - 3.3kV Type 441.6 - 6.6kV Type 441.11 - 11kV Type 441.22 - 22kV |
| Temperature Rating | -25°C to +90°C | |
- Type 440 Rubber Mining Cable
- Type 441 Rubber Mining Cable
| NOMINAL CONDUCTOR AREA mm² | THICKNESS OF INSULATION mm² | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm² | PILOT COND. STRAND/ SIZE No/mm | THICKNESS EPR COVERING mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|
| Type 440.1 - Class 2 | ||||||||||
| 6 | 1.5 | 84x0.3 | 6.5 | 7/0.25 | 7.2 | 18/0.3 | 1 | 3.8 | 30 | 135 |
| 10 | 1.5 | 77x0.4 | 7.7 | 7/0.25 | 8.6 | 27/0.3 | 1 | 3.8 | 32.6 | 166 |
| 16 | 1.6 | 126x0.4 | 9 | 7/0.25 | 9.6 | 42/0.3 | 1 | 4 | 35.8 | 204 |
| 25 | 1.6 | 209x0.4 | 10.5 | 7/0.25 | 11.3 | 66/0.3 | 1.2 | 4.3 | 39.7 | 269 |
| 35 | 1.6 | 285x0.4 | 12.1 | 7/0.25 | 12.4 | 90/0.3 | 1.2 | 4.6 | 43.8 | 324 |
| 50 | 1.7 | 380x0.4 | 13.8 | 7/0.25 | 14.4 | 120/0.3 | 1.2 | 5 | 48.4 | 403 |
| 70 | 1.8 | 361x0.5 | 16.1 | 7/0.25 | 16.5 | 110/0.4 | 1.2 | 5.4 | 54 | 539 |
| 95 | 2 | 475x0.5 | 17.7 | 7/0.30 | 21.8 | 110/0.4 | 1.2 | 6 | 59.4 | 659 |
| 120 | 2.1 | 608x0.5 | 20 | 7/0.30 | 24.7 | 135/0.4 | 1.4 | 6.4 | 65.2 | 802 |
| 150 | 2.3 | 740x0.5 | 22.2 | 7/0.40 | 36.9 | 152/0.4 | 1.4 | 6.9 | 72.2 | 1018 |
| 185 | 2.5 | 925x0.5 | 24.7 | 7/0.40 | 40.5 | 177/0.4 | 1.4 | 7.4 | 78.8 | 1198 |
| 240 | 2.8 | 1221x0.5 | 27.9 | 7/0.50 | 57.7 | 216/0.4 | 1.6 | 8.2 | 88.7 | 1549 |
| Type 440.3 - Class 2 | ||||||||||
| 16 | 3 | 126x0.4 | 12.5 | 7/0.25 | 13.1 | 42/0.3 | 1.4 | 5.3 | 46.1 | 304 |
| 25 | 3 | 209x0.4 | 14 | 7/0.25 | 14.8 | 66/0.3 | 1.4 | 5.6 | 50 | 379 |
| 35 | 3 | 285x0.4 | 15.3 | 7/0.25 | 15.8 | 90/0.3 | 1.4 | 5.9 | 53.4 | 446 |
| 50 | 3 | 380x0.4 | 16.8 | 7/0.25 | 17.2 | 120/0.3 | 1.4 | 6.3 | 57.5 | 524 |
| 70 | 3 | 361x0.5 | 20 | 7/0.25 | 18.6 | 110/0.4 | 1.4 | 6.6 | 62.4 | 659 |
| 95 | 3 | 475x0.5 | 22.1 | 7/0.25 | 20.3 | 110/0.4 | 1.6 | 7.1 | 66.2 | 754 |
| 120 | 3 | 608x0.5 | 23.9 | 7/0.30 | 27.2 | 135/0.4 | 1.6 | 7.4 | 71.9 | 914 |
| 150 | 3 | 740x0.5 | 26 | 7/0.40 | 39.6 | 152/0.4 | 1.6 | 7.8 | 77.9 | 1119 |
| 185 | 3 | 925x0.5 | 28.6 | 7/0.40 | 42.2 | 177/0.4 | 1.6 | 8.2 | 83.4 | 1289 |
| 240 | 3 | 1221x0.5 | 31.2 | 7/0.40 | 46.6 | 216/0.4 | 1.6 | 8.8 | 90.2 | 1559 |
| Type 440.6 - Class 2 | ||||||||||
| 16 | 5 | 126x0.4 | 16.5 | 7/0.25 | 17.2 | 42/0.3 | 1.4 | 6.4 | 57.3 | 444 |
| 25 | 5 | 209x0.4 | 18 | 7/0.25 | 18.6 | 66/0.3 | 1.6 | 6.7 | 61.2 | 523 |
| 35 | 5 | 285x0.4 | 19.3 | 7/0.25 | 18.6 | 90/0.3 | 1.6 | 7 | 64.6 | 599 |
| 50 | 5 | 380x0.4 | 20.8 | 7/0.25 | 21.3 | 120/0.3 | 1.8 | 7.3 | 68.5 | 689 |
| 70 | 5 | 361x0.5 | 22.8 | 7/0.25 | 23.4 | 110/0.4 | 1.8 | 7.7 | 73.7 | 834 |
| 95 | 5 | 475x0.5 | 24 | 7/0.30 | 29.2 | 110/0.4 | 1.8 | 8.1 | 77.8 | 964 |
| 120 | 5 | 608x0.5 | 26.1 | 7/0.30 | 31.7 | 135/0.4 | 1.8 | 8.5 | 83.1 | 1119 |
| 150 | 5 | 740x0.5 | 27.9 | 7/0.40 | 45.7 | 152/0.4 | 1.8 | 8.9 | 89.1 | 1349 |
| 185 | 5 | 925x0.5 | 30 | 7/0.40 | 48.4 | 177/0.4 | 1.8 | 9.3 | 94.5 | 1529 |
| Type 440.11 - Class 2 | ||||||||||
| 25 | 7.6 | 209x0.4 | 23.4 | 7/0.25 | 23.7 | 66/0.3 | 2 | 8.1 | 75.6 | 759 |
| 35 | 7.6 | 285x0.4 | 24.7 | 7/0.30 | 30.2 | 90/0.3 | 2 | 8.4 | 79.6 | 869 |
| 50 | 7.6 | 380x0.4 | 26.2 | 7/0.30 | 31.7 | 120/0.3 | 2 | 8.7 | 83.5 | 974 |
| 70 | 7.6 | 361x0.5 | 28.2 | 7/0.30 | 34.1 | 110/0.4 | 2 | 9.1 | 88.7 | 1139 |
| 95 | 7.6 | 475x0.5 | 29.4 | 7/0.40 | 47.5 | 110/0.4 | 2.2 | 9.6 | 93.6 | 1319 |
| 120 | 7.6 | 608x0.5 | 31.5 | 7/0.40 | 51 | 135x0.4 | 2.2 | 9.9 | 98.7 | 1489 |
| 150 | 7.6 | 740x0.5 | 33.3 | 7/0.40 | 53.7 | 152/0.4 | 2.2 | 10.3 | 103.4 | 1679 |
| Type 440.22 - Class 2 | ||||||||||
| 35 | 10.5 | 285x0.4 | 32.6 | 7/0.40 | 55.4 | 90/0.3 | 2.5 | 10 | 104.9 | 1429 |
| 50 | 10.5 | 380x0.4 | 34.1 | 7/0.40 | 58.1 | 120/0.3 | 2.5 | 10.3 | 108.8 | 1549 |
| NO. CORES | NOMINAL CONDUCTOR AREA mm² | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm² | PILOT COND. STRAND/ SIZE No/mm | THICKNESS PILOT CORE COVERING mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type 441.1-Class 2 | |||||||||||
| 3+3 | 6 | 84x0.3 | 1.5 | 6.5 | 33/0.3 | 2.3 | 24/0.2 | 0.8 | 3.8 | 28.6 | 111 |
| 3+3 | 10 | 77x0.4 | 1.5 | 7.7 | 51/0.3 | 3.6 | 24/0.2 | 0.8 | 3.8 | 31.2 | 136 |
| 3+3 | 16 | 126x0.4 | 1.6 | 9 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 3.9 | 34.1 | 176 |
| 3+3 | 25 | 209x0.4 | 1.6 | 10.5 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.2 | 37.8 | 231 |
| 3+3 | 35 | 285x0.4 | 1.6 | 12.1 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.4 | 41.1 | 274 |
| 3+3 | 50 | 380x0.4 | 1.7 | 13.8 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 4.9 | 45.8 | 349 |
| 3+3 | 70 | 361x0.5 | 1.8 | 16.1 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 5.3 | 52.2 | 481 |
| 3+3 | 95 | 475x0.5 | 2 | 17.7 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 5.8 | 56.6 | 579 |
| 3+3 | 120 | 608x0.5 | 2.1 | 20 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 6.3 | 62.6 | 724 |
| 3+3 | 150 | 740x0.5 | 2.3 | 22.2 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 6.7 | 68.3 | 881 |
| 3+3 | 185 | 925x0.5 | 2.5 | 24.7 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 7.3 | 74.8 | 1049 |
| 3+3 | 240 | 1221x0.5 | 2.8 | 27.9 | 214/0.5 | 42 | 40/0.2 | 0.8 | 8 | 83.4 | 1329 |
| 3+3 | 300 | 1525x0.5 | 3 | 31 | 280/0.5 | 55 | 40/0.2 | 0.8 | 8.7 | 31.1 | 1629 |
| Type 441.3-Class 1 | |||||||||||
| 3+3 | 16 | 126x0.4 | 2.2 | 12.4 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.6 | 43 | 241 |
| 3+3 | 25 | 209x0.4 | 2.2 | 14 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.9 | 46.8 | 304 |
| 3+3 | 35 | 285x0.4 | 2.2 | 15.3 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5.2 | 50.2 | 359 |
| 3+3 | 50 | 380x0.4 | 2.4 | 17.1 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 5.7 | 55.4 | 446 |
| 3+3 | 70 | 361x0.5 | 2.4 | 19.1 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 6 | 60.3 | 571 |
| 3+3 | 95 | 475x0.5 | 2.4 | 20.3 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 6.4 | 63.5 | 659 |
| 3+3 | 120 | 608x0.5 | 2.4 | 22.4 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 6.5 | 68.5 | 794 |
| 3+3 | 150 | 740/0.5 | 2.4 | 24.2 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 6.6 | 72.6 | 931 |
| 3+3 | 185 | 925x0.5 | 2.4 | 26.3 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 6.7 | 77.4 | 1080 |
| 3+3 | 240 | 1221x0.5 | 2.4 | 28.9 | 214/0.5 | 42 | 40/0.2 | 0.8 | 6.9 | 83.3 | 1310 |
| 3+3 | 300 | 1525x0.5 | 2.4 | 31.5 | 280/0.5 | 55 | 40/0.2 | 0.8 | 7 | 89.2 | 1570 |
| Type 441.6-Class 1 | |||||||||||
| 3+3 | 16 | 126x0.4 | 3 | 14 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5 | 47.4 | 241 |
| 3+3 | 25 | 209x0.4 | 3 | 15.5 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5.3 | 51.2 | 304 |
| 3+3 | 35 | 285x0.4 | 3 | 16.8 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5.6 | 54.7 | 359 |
| 3+3 | 50 | 380x0.4 | 3 | 18.3 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 6 | 58.8 | 446 |
| 3+3 | 70 | 361x0.5 | 3 | 19.1 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 6.3 | 63.8 | 571 |
| 3+3 | 95 | 475x0.5 | 3 | 20.3 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 6.4 | 66.4 | 659 |
| 3+3 | 120 | 608x0.5 | 3 | 21.5 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 6.6 | 71.3 | 794 |
| 3+3 | 150 | 740x0.5 | 3 | 23.6 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 6.7 | 75.4 | 931 |
| 3+3 | 185 | 925x0.5 | 3 | 25.4 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 6.8 | 80.1 | 1080 |
| 3+3 | 240 | 1221x0.5 | 3 | 27.5 | 214/0.5 | 42 | 40/0.2 | 0.8 | 7 | 86.1 | 1310 |
| 3+3 | 300 | 1525x0.5 | 3 | 30.1 | 280/0.5 | 55 | 40/0.2 | 0.8 | 7.1 | 91.9 | 1570 |
| Type 441.11-Class 1 | |||||||||||
| 3+3 | 25 | 209x0.4 | 5 | 19.6 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 6.3 | 62.1 | 481 |
| 3+3 | 35 | 285x0.4 | 5 | 20.8 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 6.4 | 65.1 | 542 |
| 3+3 | 50 | 380x0.4 | 5 | 22.4 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 6.5 | 68.7 | 620 |
| 3+3 | 70 | 361x0.5 | 5 | 24.4 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 6.6 | 63.8 | 750 |
| 3+3 | 95 | 475x0.5 | 5 | 25.6 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 6.8 | 73 | 850 |
| 3+3 | 120 | 608x0.5 | 5 | 27.7 | 165/0.4 | 21.1 | 40/0.2 | 0.8 | 6.9 | 76.2 | 986 |
| 3+3 | 150 | 740x0.5 | 5 | 29.5 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 7 | 80.8 | 1129 |
| 3+3 | 185 | 925x0.5 | 5 | 31.6 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 7.1 | 85 | 1289 |
| 3+3 | 240 | 1221x0.5 | 5 | 34.2 | 214/0.5 | 42 | 40/0.2 | 0.8 | 7.3 | 89.6 | 1539 |
| Type 441.22-Class 1 | |||||||||||
| 3+3 | 35 | 285x0.4 | 7.6 | 26.3 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 6.9 | 78 | 733 |
| 3+3 | 50 | 380x0.4 | 7.6 | 27.8 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 7 | 81.5 | 820 |
| 3+3 | 70 | 361x0.5 | 7.6 | 29.8 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 7.1 | 85.9 | 960 |
| 3+3 | 95 | 475x0.5 | 7.6 | 31 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 7.2 | 88.7 | 1070 |
| 3+3 | 120 | 608x0.5 | 7.6 | 33.1 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 7.3 | 93.6 | 1220 |
| 3+3 | 150 | 740x0.5 | 7.6 | 34.9 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 7.4 | 97.6 | 1380 |
| 3+3 | 185 | 925x0.5 | 7.6 | 37 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 7.6 | 102.6 | 1545 |
