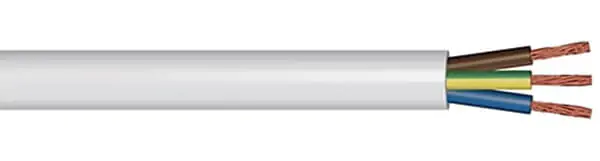

YSLTOE Cable Description
YSLTOE features a halogen-free polyurethane (PUR) jacket for strong environmental protection, while its structure uses Kevlar and lead rope as a central support filler. It is important to note that while the YSLTOE will not release toxic gases in the event of a fire, PUR is still a flammable material, so caution should be used when using it inside a building.
YSLTOE Cable Construction
- VOLTAGE
- 300/500V
- CENTRAL SUPPORT ELEMENT
- Lead Balls Ropes Stranded Around, Kevlar® Supports
- CONDUCTOR
- Class 5 Flexible Stranded Copper
- INSULATION
- Thermoplastic Compound
- OUTER SHEATH
- Halogen-Free PUR (Polyurethane)
YSLTOE Cable Characteristics
- Maximum Tensile Load (N/mm²): 13000
- Maximum Working Speed (m/min): 160
- Temperature Rating
- Maximum Short-Circuit temperature: 150°C
- Flexing: -20°C to +60°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 5 x overall diameter
YSLTOE Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 30G | 2.5 | 2 | 32.4 | 2060 |
| 36G | 2.5 | 2 | 36.1 | 2670 |
| 42G | 2.5 | 2 | 39.9 | 3330 |
| 48G | 2.5 | 2 | 43.2 | 4260 |
| 48 | 1 | 1,3 | 32.7 | 2460 |
