AAAC Conductor

AAAC Conductor Description

AAAC offers a high strength-to-weight ratio and improved sag performance. It has higher mechanical strength than standard aluminum (AAC) and allows for longer spans. Compared to ACSR (aluminum conductor steel reinforced) conductors, the lack of a steel core provides good conductivity and superior corrosion resistance.

As a result, AAAC conductors are widely used in medium- and high-voltage distribution and transmission lines, particularly in coastal areas or on long-span lines.

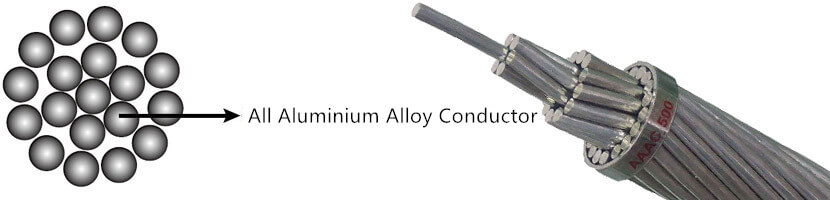

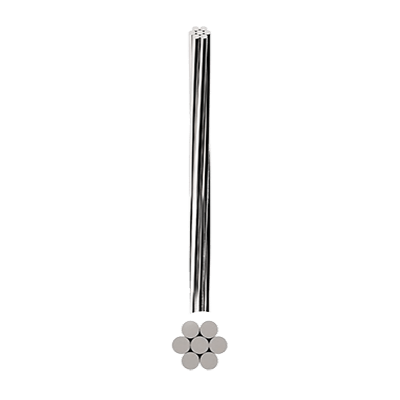

AAAC Conductor Construction

Conductor
Aluminium alloy conductor Type AL2 to AL7 as per EN 50183

AAAC Conductor Sizes (examples)

Code Word	Size - KCM	Nominal Cross Sectional Area	Nominal Weight kg/km
Akron	30.58	0.610mm²	503.49
Butte	312.8	6.238mm²	4989.52
Flint	740.8	19.863mm²	13834.57

ASTM Sizes Metric Units
ASTM Sizes Metric Units
British Sizes
French Sizes
German Sizes

CODE	SIZE KCM	NOMINAL SIZE mm²	STRANDING	DIAMETER inches		WEIGHT lbs/1000ft	RATED STRENGTH kg	RESISTANCE ohms/1000ft		CURRENT RATING Amps	SIZE mm²	ACSR WITH EQUIV.DIAM. STRANDING alt/stl
CODE	SIZE KCM	NOMINAL SIZE mm²	STRANDING	Individual Wires	Total	WEIGHT lbs/1000ft	RATED STRENGTH kg	DC at 20ºC	AC at 75ºC	CURRENT RATING Amps	SIZE mm²	ACSR WITH EQUIV.DIAM. STRANDING alt/stl
AKRON	30.58	15.5	7	1.679	5.04	42.7	503	2.16	2.57	107	13.3	45809
ALTON	48.69	24.67	7	2.118	6.36	68	798	1.36	1.62	143	21.15	45809
AMES	77.47	39.25	7	2.672	8.02	108.2	1270	0.853	1.02	191	33.63	45809
AZUSA	123.3	62.48	7	3.371	10.11	172.2	2023	0.536	0.639	256	53.31	45809
ANAHEIM	155.4	78.74	7	3.785	11.35	217.1	2445	0.425	0.509	296	67.44	45809
AMHERST	195.7	99.16	7	4.247	12.74	273.3	3080	0.338	0.403	342	85.03	45809
ALLIANCE	246.9	125.1	7	4.77	14.31	344.9	3883	0.268	0.319	395	107.22	45809
BUTTE	312.8	158.5	19	3.259	16.29	436.9	4989	0.211	0.252	460	135.19	45864
CANTON	394.5	199.9	19	3.66	18.3	551.1	6033	0.168	0.2	532	170.46	45864
CAIRO	465.4	235.8	19	3.975	19.88	650	7076	0.142	0.17	590	201.42	45864
DARIEN	559.5	283.5	19	4.359	21.79	781.5	8527	0.118	0.142	663	241.7	45864
ELGIN	652.4	330.6	19	4.707	23.53	911.3	9934	0.101	0.122	729	281.98	45864
FLINT	740.8	375.4	37	3.594	25.16	1035	11068	0.0892	0.107	790	322.27	45864
GREELY	927.2	469.8	37	4.021	28.15	1295	13834	0.0713	0.0863	908	402.83	45864

CONDUCTOR SIZE mm²	NO. OF WIRES	DIAMETER OR WIRE mm	OVERALL DIAMETER OF CONDUCTOR mm	LINEAR WEIGHT kg/km	RATED STRENGTH daN	MAXIMUM DC RESISTANCE AT 20ºC ohms/km
40	7	2.7	8.1	110	1270	0.837
50	7	3.02	9.06	138	1590	0.67
63	7	3.39	10.17	173	1910	0.532
80	7	3.81	11.43	220	2410	0.418
100	7	4.26	12.78	275	3020	0.335
112	7	4.51	13.53	308	3380	0.3
125	19	2.89	14.45	343	3830	0.268
140	19	3.06	15.3	385	4290	0.24
160	19	3.27	16.35	440	4670	0.21
180	19	3.47	17.35	494	5260	0.186
200	19	3.66	18.3	550	5860	0.167
224	19	3.87	19.35	615	6550	0.15
250	19	4.09	20.45	686	7310	0.134
280	37	3.1	21.7	770	8390	0.12
315	37	3.29	23.03	865	9020	0.106
355	37	3.5	24.5	975	10200	0.0943
400	37	3.71	25.97	1098	11500	0.0837
450	37	3.94	27.58	1235	12900	0.0744
500	37	4.15	29.05	1372	14300	0.067
560	37	4.39	30.73	1537	16100	0.0598
630	37	4.66	32.62	1730	18100	0.0531

CODE	NOMINAL AREA mm²	EQUIVALENT Cu AREA kg		STRANDING AND WIRE		NOMINAL OVERALL DIAMETER		TOTAL AREA		WEIGHT
CODE	NOMINAL AREA mm²	mm²	inch²	mm	inch	mm²	inch²	mm²	inch²	mm²	lb/M ftt
-	-	6.45	0.01	7/1.47	7/0.0574	4.41	0.174	11.7	0.01812	32.2	21.7
BOX	-	9.68	0.015	7/1.85	7/0.0727	5.55	0.219	18.8	0.02908	51.7	34.7
ACACIA	-	12.9	0.02	7/2.08	7/0.0822	6.24	0.246	23.9	0.03711	66.1	44.4
ALMOND	25	16.1	0.025	7/2.34	7/0.0921	7.02	0.276	30.1	0.04666	82.9	55.7
CEDA	30	19.4	0.03	7/2.54	7/1000	7.62	0.3	35.5	0.05498	97.8	65.7
-	40	22.6	0.035	7/2.77	7/1091	8.31	0.327	42.2	0.06543	116.4	78.2
FIR	50	25.8	0.04	7/2.95	70161	8.85	0.348	47.8	0.07415	131.8	88.6
HAZEL	100	32.3	0.05	7/3.30	7/0.1299	9.9	0.39	59.9	0.0928	165	110.9
PINE	-	38.7	0.06	7/3.61	70422	10.83	0.426	71.7	0.1111	197.7	132.9
-	-	45.2	0.07	7/3.91	7/1539	11.73	0.462	84.1	0.1303	231.6	155.6
WILLOW	150	48.4	0.075	7/4.04	7/1591	12.12	0.477	89.8	0.1392	247.5	166.3
-	175	51.6	0.08	7/4.19	7/1650	12.57	0.495	96.5	0.149	266.2	178.9
-	300	58.1	0.09	7/4.45	7/0.1751	13.35	0.526	108.8	0.1686	299.8	201.5
OAK	-	64.5	0.1	7/4.65	70831	13.95	0.549	118.9	0.1843	327.8	220.3
-	-	64.5	0.1	19/2.82	190111	14.1	0.555	118.8	0.1841	327.6	220.2
MULBERRY	-	80.6	0.125	19/3.18	19/1253	15.9	0.626	151.1	0.2342	416.7	280
ASH	-	96.8	0.15	19/3.48	19/1370	17.4	0.685	180.7	0.2801	498.1	334.8
ELM	-	113	0.175	19/3.76	19/1481	18.8	0.74	211	0.3271	582.1	391.2
POPLAR	-	129	0.2	37/2.87	37/1129	20.09	0.791	239	0.3705	658.8	442.7
-	-	145	0.225	37/3.05	37/1202	21.35	0.841	270.8	0.4197	746.7	501.8
SYCAMORE	-	161	0.25	37/3.23	37/0.1271	22.61	0.89	303	0.4697	834.9	561.1
UPAS	-	194	0.3	37/3.53	37/1390	24.71	0.973	362.1	0.5613	998.6	671.1
-	-	226	0.35	37/3.81	370500	26.47	1.05	421.8	0.6538	1163	781.5
YEW	-	258	0.4	37/4.06	370600	28.42	1.119	479.9	0.7439	1323	889.2

CODE	AREA mm²	NO. OF WIRES	DIAMETER OF WIRES mm	OVERALL DIAMETER OF CONDUCTOR mm	TENSILE STRENGTH OF WIRE hbar	RATED STRENGTH OF CONDUCTOR daN	MAXIMUM DC RESISTANCE AT 20ºC km	LINEAR WEIGHT kg/km	ELASTICITY MODULUS* hbar	COEFFICIENT OF LINEAR EXPANSION */oc
ASTER 22	21.99	7	2	6	32.4	710	1.5	60.2	6200	23.10-6
ASTER 34.4	34.36	7	2.5	7.5	32.4	1105	0.958	94.1	6200	23.10-6
ASTER 54.6	54.55	7	3.15	9.45	32.4	1755	0.603	149	6200	23.10-6
ASTER 75.5	75.54	19	2.25	11.25	32.4	2430	0.438	208	6000	23.10-6
ASTER 117	116.98	19	2.8	14	32.4	3765	0.283	322	6000	23.10-6
ASTER 148	148.01	19	3.15	15.75	32.4	4765	0.224	407	6000	23.10-6
ASTER 181.6	181.62	37	2.5	17.5	32.4	5845	0.183	500	5700	23.10-6
ASTER 228	227.83	37	2.8	19.6	32.4	7340	0.146	627	5700	23.10-6
ASTER 288	288.34	37	3.15	22.05	32.4	9280	0.115	794	5700	23.10-6
ASTER 366	366.22	37	3.55	24.85	32.4	11785	0.0905	1009	5700	23.10-6
ASTER 570	570.22	61	3.45	31.05	32.4	18360	0.0583	1574	5400	23.10-6
ASTER 851	850.66	91	3.45	37.95	32.4	27390	0.0391	2354	5250	23.10-6
ASTER 1144	1143.51	91	4	44	31.9	36260	0.0292	3164	5250	23.10-6
ASTER 1600	1595.93	127	4	52	31.9	50640	0.0206	4425	5050	23.10-6

CONDUCTOR SIZE mm²	ALLOY AREA mm²	NO. OF WIRES	DIAMETER mm	OVERALL DIAMETER OF CONDUCTOR mm	LINEAR WEIGHT kg/km	RATED STRENGTH daN	MAXIMUM DC RESISTANCE AT 20ºC ohms/km
16	15.89	7	1.7	5.1	43	444	2.091
25	24.26	7	2.1	6.3	66	677	1.3703
35	34.36	7	2.5	7.5	94	690	0.9669
50	49.48	7	3	9	135	1382	0.6714
50	48.35	19	1.8	9	133	1350	0.6905
70	65.81	19	2.1	10.5	181	1838	0.5073
95	93.27	19	2.5	12.5	256	2605	0.3579
120	116.99	19	2.8	14	322	3268	0.2854
150	147.11	37	2.25	15.8	406	4109	0.2274
185	181.62	37	2.5	17.5	500	5073	0.1842
240	242.54	61	2.25	20.3	670	6774	0.1383
300	299.43	61	2.5	22.5	827	8363	0.112
400	400.14	61	2.89	26	1104	11176	0.0838
500	499.83	61	3.23	29.1	1379	13960	0.06709
625	626.2	91	2.96	32.6	1732	17490	0.054
800	802.09	91	3.35	36.9	2218	22402	0.0418
1000	999.71	91	3.74	41.1	2767	27922	0.0335
