ACSR Conductor

ACSR Conductor Description

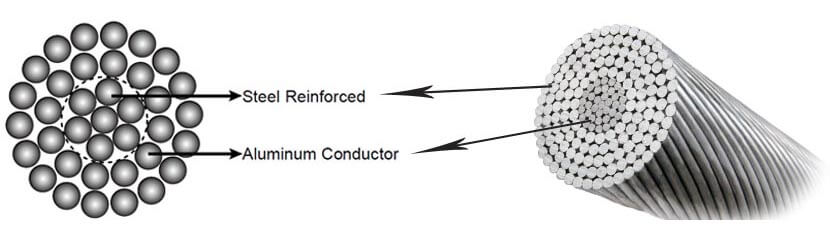

The core of an ACSR conductor consists of one or more galvanized or aluminum-clad steel wires, with the core made of galvanized steel and the outer layer made of aluminum. This conductor offers excellent electrical efficiency and mechanical strength.

ACSR conductors are the most common type of conductor used in bare overhead transmission lines, as well as in primary and secondary distribution lines. Their high strength and improved corona performance make them an ideal choice for long-distance, high-voltage power transmission systems.

ACSR Conductor Construction

Conductor
Hard Drawn Aluminium: BS EN 60889
AL1 and zinc-coated steel wire as per BS EN 50189 with the class and grade in accordance with ST1A, ST5E, and ST6C

ACSR Conductor Sizes (examples)

Code Word	Size - AWG - MCM	Nominal Cross Sectional Area	Nominal Weight kg/km
Swannate	4	26.47mm²	92.3
Linnet	336.4	198.4mm²	689
Bittern	1272	489.1mm²	2134.1

ASTM Sizes - TS IEC 1089
ASTM - TS IEC 1089
ASTM - B 232 Metric Units
High Mechanical Strength
DIN 48.204
BS - 215 Part 2
UNE 21.018
NF - C 34120

CODE AL mm²	CANADA STANDARD		SECTION				CONDUCTORS
	Type	Section AWG	Al mm²	Steel mm²	Total mm²	Copper equivalent mm²	Aluminium		Steel
	Type	Section AWG	Al mm²	Steel mm²	Total mm²	Copper equivalent mm²	No.	Diameter mm	No.	Diameter mm
17/3	TUHRUS	5	16.83	2.8	19.63	10.6	6	1.89	1	1.89
21/4	SWAN	4	21.18	3.53	24.71	13.3	6	2.12	1	2.12
27/4	SWALLOW	3	26.69	4.45	31.14	16.8	6	2.38	1	2.38
34/6	SPARROW	2	33.59	5.6	39.19	21.1	6	2.67	1	2.67
42/7	ROBIN	1	42.41	7.07	49.48	26.7	6	3	1	3
54/9	RAVEN	1/0	53.52	8.92	62.44	33.7	6	3.37	1	3.37
67/11	QUAIL	2/0	67.33	11.22	78.55	43.3	6	3.78	1	3.78
85/14	PIGEON	3/0	85.12	14.18	99.3	53.5	6	4.25	1	4.25
135/7	WAXWING	266800	134.98	7.5	142.48	84.9	18	3.09	1	3.09
135/22	PARTRIDGE	266800	134.87	21.99	156.86	84.8	26	2.57	7	2
152/8	PHEOBE	300000	152.09	8.45	160.54	95.6	18	3.28	1	3.28
152/25	OSTRICH	300000	152.19	24.71	176.9	95.7	26	2.73	7	2.12
242/39	HAWK	477000	241.65	39.19	280.84	152	26	3.44	7	2.67
403/65	DRAKE	795000	402.56	65.44	468	253.2	26	4.44	7	3.45
485/63	CARDINAL	954000	484.53	62.81	547.34	304.7	54	3.38	7	3.38
645/82	PHEASANT	127200	645.08	81.71	726.79	405.7	54	3.9	19	2.34

CODE AL mm²	DIAMETER mm		RATED STRENGTH	DC RESISTANCE AT 20ºC	UNIT WEIGHT kg/km			TOTAL WEIGHT %		PACKING OF REELS
	Steel core	Complete cable	kg	ohm/km	Al	Steel	Total	Al	Steel	Reel type	In one reel
	Steel core	Complete cable	kg	ohm/km	Al	Steel	Total	Al	Steel	Reel type	Lengths m	Net weight kg
17/3	1.89	5.67	665	1.0752	46.2	21.8	68	67.9	32.1	R-100	9600	653
21/4	2.12	6.36	831	1.355	58.1	27.5	85.6	67.9	32.1	R-100	8000	685
27/4	2.38	7.14	1023	1.0742	73.2	34.6	107.8	67.9	32.1	R-100	6400	690
34/6	2.67	8.01	1264	0.8543	92.1	43.6	135.7	67.9	32.1	R-100	4800	652
42/7	3	9	1579	0.6767	116.4	55	171.4	67.9	32.1	R-100	3200	550
54/9	3.37	10.11	1945	0.5362	146.8	69.4	216.2	67.9	32.1	R-100	3200	692
67/11	3.78	11.34	2420	0.4263	184.7	87.3	272	67.9	32.1	R-100	2400	653
85/14	4.25	12.75	3035	0.3366	233.5	110.4	343.9	67.9	32.1	R-100	1600	550
135/7	3.09	15.45	3220	0.2134	371.8	58.3	430.1	86.4	13.6	R-100	1600	688
135/22	6	16.28	5099	0.214	372.2	171.6	543.8	68.5	31.5	R-120	1600	870
152/8	3.28	16.4	3628	0.1891	418.9	65.7	484.6	86.4	13.6	R-120	2500	1212
152/25	6.36	17.28	5736	0.1897	420	192.9	612.9	68.5	31.5	R-120	1600	981
242/39	8.01	21.77	8798	0.1194	666.8	306	972.8	68.5	31.5	R-150	1750	1703
403/65	10.35	28.11	14165	0.0715	1110.9	511	1621.9	68.5	31.5	R-180	1600	2595
485/63	10.14	30.42	15589	0.0597	1339.6	190.2	1829.8	73.2	26.8	R-200	2000	3660
645/82	11.7	35.1	20383	0.0449	1783.8	639.7	2423.5	73.6	26.4	R-200	1600	3878

CODE	SIZE KCM	STRANDING No. x mm		SECTION mm²		OVERALL DIAMETER mm		CONDUCTOR WEIGHT kg/km			RATED STRENGTH kN	ELECTRICAL RESISTANCE			CURRENT CARRYING CAPACITY Amps
CODE	SIZE KCM	Al.	Steel	total	Al	Total	Core	Total	Al.	Steel	RATED STRENGTH kN	20ºC DC	25ºC AC	75ºC AC	CURRENT CARRYING CAPACITY Amps
TURKEY	6	6 x 1.68	1 x 1.68	15.52	13.3	5.04	1.68	53.8	36.5	17.3	5.295	2.1135	2.1496	2.685	110
SWAN	4	6 x 2.12	1 x 2.12	24.71	21.18	6.36	2.12	85.4	58	27.4	8.28	1.3278	1.3537	1.7172	145
SWANATE	4	7 x 1.96	1 x 2.61	26.47	21.12	6.53	2.61	99.7	58	41.7	10.5	1.1313	1.3387	1.7383	145
SPARROW	2	6 x 2.67	1 x 2.67	39.2	33.6	8.01	2.67	135.9	92.3	43.6	12.68	0.8343	0.8527	1.1081	195
SPARATE	2	7 x 2.47	1 x 3.30	42.09	33.54	5.24	3.3	158.8	92.3	66.51	6.2	0.8251	0.8435	1.1181	195
ROBIN	1	6 x 3.00	1 x 3.00	49.48	42.41	9	3	171.4	116.4	55	15.8	0.6621	0.6768	0.8907	200
RAVEN	1/0	6 x 3.37	1 x 3.37	62.44	53.52	10.11	3.37	216.1	146.7	69.4	19.49	0.5243	0.537	0.7165	255
QUAIL	2/0	6 x 3.78	1 x 3.78	78.55	67.33	11.34	3.78	272.5	185	87.5	23.63	0.416	0.4265	0.5803	295
PIGEON	3/0	6 x 4.25	1 x 4.25	99.31	85.12	12.75	4.25	343.5	233.2	110.3	29.46	0.3304	0.3386	0.4705	340
PENGUIN	4/0	6 x 4.77	1 x 4.77	125.09	107.22	14.31	4.77	433.2	294.2	139	37.16	0.2618	0.2697	0.3829	390
WAXWING	266.8	18 x 3.09	1 x 3.09	142.5	135	15.45	3.09	431.6	372.9	58.7	30.62	0.2119	0.2169	0.2595	480
PARTRIDGE	266.8	26 x 2.57	7 x 2.00	156.9	134.9	16.28	6	546.1	374.3	171.8	50.28	0.21	0.2146	0.2569	490
OSTRICH	300	26 x 2.73	7 x 2.12	176.9	152.2	17.28	6.36	614.6	421.3	193.3	56.52	0.1867	0.1909	0.2283	530
MERLIN	336.4	18 x 3.47	1 x 3.47	179.7	170.2	17.35	3.47	543.2	469.7	73.5	38.36	0.168	0.1719	0.2057	560
LINNET	336.4	26 x 2.89	7 x 2.25	198.4	170.6	18.31	6.75	689	472.2	216.8	62.75	0.1663	0.1669	0.2037	570
ORIOLE	336.4	30 x 2.69	7 x 2.69	210.3	170.5	18.83	8.07	784.3	473.2	311.1	76.98	0.1654	0.169	0.2024	575
CHICKADEE	397.5	18 x 3.77	1 x 3.77	212.1	200.9	18.85	3.77	642.9	555.5	87.4	44.23	0.1221	0.1457	0.1742	620
BRANT	397.5	24 x 3.27	7 x 2.18	227.7	201.6	19.62	6.54	762	558.1	203.9	64.97	0.1417	0.145	0.1732	630
IBIS	397.5	26 x 3.14	7 x 2.44	234	201.3	19.88	7.32	814	558.2	255.8	72.53	0.1411	0.1444	0.1726	635
LARK	397.5	30 x 2.92	7 x 2.92	247.8	200.9	20.44	8.76	927.1	555.1	372	90.3	0.1401	0.1434	0.1716	645
PELICAN	477	18 x 4.14	1 x 4.14	255.8	242.3	20.7	4.14	770.9	666.4	104.5	52.51	0.1184	0.1217	0.1453	700
FLICKER	477	26 x 3.58	7 x 2.39	273	241.6	21.19	7.17	915.2	670.1	245.1	76.54	0.1178	0.1207	0.1444	710
HAWK	477	26 x 3.44	7 x 2.67	280.8	241.6	21.77	8.01	977.7	669.7	308	86.77	0.1171	0.1201	0.1437	715
HEN	477	30 x 3.20	7 x 3.20	297.6	241.3	22.4	9.6	1111.7	671	440.7	105.91	0.1165	0.1194	0.1427	725
OSPREY	556.5	18 x 4.47	1 x 4.47	298.2	282.5	22.35	4.47	898.9	777	121.9	60.96	0.1014	0.1043	0.1247	775
PARAKEET	556.5	24 x 3.87	7 x 2.58	318.9	282.3	23.22	7.74	1067	781.6	285.4	88.11	0.101	0.1037	0.124	785
DOVE	556.5	26 x 3.72	7 x 2.89	328.5	282.6	23.55	6.67	1140	781.3	358.7	105.57	0.1007	0.1033	0.1237	790
EAGLE	556.5	27 x 3.30	7 x 3.46	347.9	282.1	24.27	1.38	1297.7	983.2	514.5	123.71	0.1001	0.1027	0.1227	800
PEACOCK	605	24 x 4.03	7 x 2.65	345.9	306.1	24.19	8.07	1160.8	849.8	311	96.12	0.09285	0.09547	0.11417	830
SQUAB	605	26 x 3.87	7 x 3.01	355.6	305.8	24.51	9.03	1239.7	849.8	389.9	108.13	0.09252	0.09514	0.11352	835
WOODDUCK	605	30 x 3.61	7 x 3.61	378.8	307.1	25.27	10.83	1410.8	851.2	559.6	128.6	0.03186	0.09449	0.11286	845
TEAL	605	30 x 3.61	19 x 2.16	376.1	307.1	25.24	10.8	1398.9	851.5	547.4	135.5	0.09186	0.09449	0.11286	845
KINGBIRD	636	18 x 4.78	1 x 4.78	340.9	323	23.9	4.78	1026.9	887.4	139.5	69.86	0.08891	0.09219	0.11286	840
ROOK	636	24 x 4.14	7 x 2.76	365	323.1	24.84	8.28	1281.8	892.9	388.9	97.9	0.08825	0.09088	0.10925	855
GROSBEAK	636	26 x 3.97	7 x 3.09	321.8	251.5	9.27	1302.2	892.6	-	409.6	1302.2	0.11214	0.08793	0.10827	860
SCOTER	636	30 x 3.70	7 x 3.70	397.9	322.6	25.9	11.1	1477.8	891.4	586.4	135.27	0.0876	0.0899	0.10794	870
EGRET	636	30 x 3.70	19 x 2.22	396.1	322.6	25.9	11.1	1470.3	895	575.3	140.17	0.0876	0.899	0.10761	870
SWIFT	636	36 x 3.38	1 x 3.38	332	323	23.66	3.58	958.4	888.4	7	61.41	0.0892	0.9186	0.1093	845
FLAMINGO	666.6	24 x 4.23	7 x 2.82	381	337.3	25.38	8.46	1276.9	935.2	341.7	105.46	0.0843	0.8563	0.1037	880
GANNET	666.6	26 x 4.07	7 x 3.16	393.2	338.3	25.76	9.48	1364.7	936.1	428.6	117.48	0.08399	0.08497	0.10302	885
STILT	715.5	24 x 4.39	7 x 2.92	410.2	363.3	26.32	8.76	1372.1	1004.5	367.6	113.47	0.07841	0.08104	0.09678	920
STARLING	715.5	26 x 4.21	7 x 3.28	421	361.9	26.68	9.84	1465.9	1004.5	461.4	126.37	0.07808	0.08038	0.9613	930
REDWING	715.5	30 x 3.92	19 x 2.35	444.5	362.1	27.43	11.75	1653.4	1007.1	646.3	153.96	0.07776	0.08005	0.09547	940
CUCKOO	795	24 x 4.62	7 x 3.08	454.5	402.3	27.72	9.24	1522.4	1115.2	407.2	124.15	0.07087	0.07316	0.08727	985
DRAKE	795	26 x 4.44	7 x 3.45	468	402.6	28.11	10.35	1628.1	1115.8	512.3	140.17	0.07054	0.07283	0.08694	995
COOT	795	36 x 3.77	1 x 3.77	413.1	401.9	26.39	3.77	1198	1110.2	87.8	74.76	0.07152	0.07415	0.08825	975
TERN	795	45 x 3.38	7 x 2.25	431.6	403.8	27.03	6.75	1333.4	1116.1	217.3	98.34	0.07119	0.07382	0.08793	970
CONDOR	795	54 x 3.08	7 x 3.08	454.5	402.3	27.72	9.24	1513.9	1116.1	407.8	125.48	0.07054	0.07283	0.08694	975
MALLARD	795	30 x 4.14	19 x 2.48	495.6	403.8	28.96	12.4	1837.9	1118.7	719.2	170.87	0.06988	0.07218	0.08596	1005
RUDDY	900	45 x 3.59	7 x 2.40	487.2	455.5	28.74	7.2	1510.5	1263.5	247	108.58	0.06234	0.06463	0.07743	1050
CANARY	900	54 x 3.28	7 x 3.28	515.4	456.3	29.52	9.84	1724.8	1263.5	461.3	141.95	0.06234	0.06463	0.0771	1055
CATBIRD	954	36 x 4.14	1 x 4.14	498.1	484.6	28.98	4.14	1437.6	1333.4	104.2	88.11	0.05971	0.06234	0.07415	1095
RAIL	954	45 x 3.70	7 x 2.47	517.3	483.8	29.61	7.41	1599.8	1339.4	260.4	115.25	0.05938	0.06201	0.07382	1090
CARDINAL	954	54 x 3.38	7 x 3.38	547.3	484.5	30.42	10.14	1829	1339.8	489.2	150.4	0.05906	0.06135	0.07316	1095
TANAGER	1033.5	36 x 4.30	1 x 4.30	537.3	522.8	30.1	4.3	1556.6	1433.5	113.1	95.23	0.05577	0.05873	0.06923	1130
ORTOLAN	1033.5	45 x 3.85	7 x 2.57	560.2	523.9	30.81	7.71	1733.7	1451	282.7	123.26	0.05479	0.05741	0.06824	1150
CURLEVV	1033.5	54 x 3.52	7 x 3.52	593.6	525.5	31.68	10.56	1980.8	1451	529	162.86	0.05446	0.05677	0.06759	1150
BLUEJAY	1113	45 x 4.00	7 x 2.66	604.4	565.5	31.98	7.98	1867.7	1562.6	305.1	132.6	0.05085	0.05348	0.06365	1205
FINCH	1113	54 x 3.65	19 x 2.19	636.6	565	32.85	10.95	2129.6	1570	559.6	174	0.05085	0.05315	0.06332	1205
BUNTING	1192.5	45 x 4.14	7 x 2.76	647.7	605.8	33.12	8.28	2000.1	1674.2	325.9	142.4	0.04757	0.0502	0.05938	1255
GRACKLE	1192.5	54 x 3.77	19 x 2.27	679.7	602.8	33.97	11.35	2281.4	1681.7	599.8	186.45	0.04724	0.04954	0.05906	1260
SKYLARK	1272	36 x 4.78	1 x 4.78	664	646	33.46	4.78	1916.8	1776.9	139.9	117.48	0.04462	0.04757	0.05643	1310
BITTERN	1272	45 x 4.27	7 x 2.85	489.1	644.4	34.17	8.55	2134.1	1785.8	384.3	151.74	0.04462	0.04724	0.0561	1310
PHEASANT	1272	54 x 3.90	19 x 2.34	726.8	645.1	35.1	11.7	2423.5	1783.8	639.7	199.96	0.04429	0.04659	0.05545	1310
DIPPERF	1351.5	45 x 4.40	7 x 2.93	731.4	684.2	35.19	8.79	2266.5	1898.5	368	161.08	0.04199	0.04495	0.05282	1360
MARTIN	1351.5	54 x 4.02	19 x 2.41	772.1	685.4	36.17	12.05	2585	1906.4	678.6	206.03	0.04167	0.04396	0.05217	1365
BOBOLINK	1431	45 x 4.53	7 x 3.02	775.4	725.3	36.24	9.06	2400.4	2009.1	391.3	170.43	0.0397	0.04265	0.0502	1410
PLOVER	1431	54 x 4.14	19 x 2.48	818.7	726.9	37.24	12.4	2738.3	2019	719.3	218.48	0.03937	0.04167	0.04954	1415
NUTHATCH	1510.5	45 x 4.65	7 x 3.10	817	764.2	37.2	9.3	2532.9	2120.7	412.2	178.44	0.0374	0.04035	0.04757	1455
PARROT	1510.5	54 x 4.25	19 x 2.55	863.1	766.1	38.25	12.75	2890.1	2131.1	759	230.05	0.0374	0.04003	0.04724	1460
LAPWING	1590	45 x 4.78	7 x 3.18	863.1	807.7	38.22	9.54	2666.8	2232.3	434.5	187.78	0.03576	0.03871	0.0456	1505
FALCON	1590	54 x 4.36	19 x 2.62	908.6	806.2	39.26	13.1	3041.9	2242.7	799.2	242.51	0.03543	0.03806	0.04495	1510
CHUKAR	1780	84 x 3.70	19 x 2.22	976.7	903.2	42.7	11.1	3086.5	2510.6	575.9	226.94	0.03182	0.03477	0.04101	1620
BLUEBIRD	2156	84 x 4.07	19 x 2.44	1181.6	1092.8	44.76	12.2	3737.8	3040.4	697.4	268.32	0.02628	0.02953	0.03445	1815
KIWI	2167	72 x 4.41	7 x 2.94	1147.3	1099.8	44.1	8.82	3427.3	3056.7	370.6	221.6	0.02628	0.02986	0.03478	1795
THRASHER	2312.8	76 x 4.43	19 x 2.07	1235.3	1711.4	45.79	10.35	3760.7	3262.1	498.6	252.3	0.02461	0.02838	0.03281	1875
GROUSE	80	8 x 2.54	1 x 4.24	54.66	40.54	9.32	4.24	221.7	111.8	109.9	23.14	0.6798	0.6959	0.9626	200
PETREL	101.8	12 x 2.34	7 x 2.34	81.71	51.61	11.7	7.02	378.1	142.9	235.2	42.28	0.5217	0.5289	0.7835	250
MINORCA	110.8	12 x 2.44	7 x 2.44	88.84	56.11	12.2	7.32	411.6	155.5	256.1	50.28	0.4793	0.4977	0.7418	265
LEGHORN	134.6	12 x 2.69	7 x 2.69	108	68.2	13.45	8.07	500	189	311	60.52	0.3947	0.4012	0.6181	300
GUINEA	159	12 x 2.92	7 x 2.92	127.23	80.36	14.6	8.76	590.5	223.2	367.3	68.08	0.334	0.3399	0.5374	330
DOTTEREL	176.9	12 x 3.08	7 x 3.08	141.56	89.41	15.4	9.24	656.9	248.4	408.4	76.98	0.3002	0.3077	0.4915	350
DORKING	190.8	12 x 3.20	12 x 3.20	152.81	96.51	16	9.6	708.8	267.9	440.9	83.21	0.2782	0.2841	0.4616	370
BRAHMA	203.2	16 x 2.86	19 x 2.48	194.57	102.79	18.12	12.4	1007.2	285.3	721.9	126.37	0.252	0.2559	0.4295	380
COCHIN	211.3	12 x 3.37	7 x 3.37	169.47	107.04	16.85	10.11	785	296.6	488.4	92.11	0.2513	0.2559	0.4249	390

CODE	AWG- MCM	STRANDING AL/Steel	DIAMETER ins				WEIGHT PER 1000FT lbs			CONTENT %		RATED STRENGHT lbs	ELECTRICAL RESISTANCE ohms/1000ft		ALLOWABLE AMPACITY Amps
			Individual wires		Steel	Total	Al	Steel	Total	Al	Steel		20ºC DC	75ºC AC
			Al	Steel	Steel	Total	Al	Steel	Total	Al	Steel		20ºC DC	75ºC AC
GROUSE	80	45870	0.1	0.167	0.167	0.367	75.1	73.9	149	50.56	49.44	52	0.207	0.294	204
PETREL	101.8	45998	0.0921	0.0921	0.2763	0.461	158	158	254	37.79	62.21	10.4	0.158	0.25	237
MINORCA	110.8	45998	0.0961	0.0961	0.2883	0.481	172.1	172.1	276	37.79	62.21	11.3	0.145	0.235	248
LEGHORN	134.6	45998	0.1059	0.1059	0.3177	0.53	208.9	208.9	336	37.79	62.21	13.6	0.12	0.204	273
GUINEA	159	45998	0.1151	0.1151	0.3453	0.576	246.8	246.8	396	37.79	62.21	16	0.101	0.181	297
DOTTEREL	176.9	45998	0.1214	0.1254	0.3642	0.607	274.6	274.6	441	37.79	62.21	17.3	0.0911	0.169	312
DORKING	190.8	45998	0.1261	0.1261	0.3783	0.631	296.3	296.3	476	37.79	62.21	18.7	0.0845	0.16	324
BRAHMA	203.2	16/19	0.1127	0.0977	0.4885	0.714	485	485	675	28.33	71.67	20.7	0.0764	0.155	341
COCHIN	211.3	45998	0.1327	0.1327	0.3981	0.664	328.2	328.2	527	37.79	62.21	28.4	0.0763	0.15	340

CODE	SECTION mm²			STRANDING No. x mm		OVERALL DIAMETER mm		RATED STRENGTH kN	ELECTRICAL RESISTANCE AT 20ºC ohms/km	CONDUCTOR WEIGHT kg/km			CURRENT CARRYING CAPACITY
CODE	Al	Steel	Total	Al	Steel	Core	Total	RATED STRENGTH kN	ELECTRICAL RESISTANCE AT 20ºC ohms/km	Al	Steel	Total	Amps
16/2.5	15.3	2.55	17.85	6 x 1.80	1 x 1.80	1.8	5.4	5.95	1.8792	42	20	62	90
25/4	23.8	4	27.8	6 x 2.25	1 x 2.25	2.25	6.8	9.2	1.2027	66	31	97	125
35/6	34.3	5.7	40	6 x 2.70	1 x 2.70	2.7	8.1	12.65	0.8353	95	45	140	145
44/32	44	31.7	75.7	14 x 2.00	7 x 2.40	7.2	11.2	45	0.6566	124	248	372	160
50/8	48.3	8	56.3	6 x 3.20	1 x 3.20	3.2	9.6	17.1	0.5946	133	63	196	170
50/30	51.2	29.8	81	12 x 2.33	7 x 2.33	6.99	11.7	43.8	0.5644	143	235	378	170
70/12	69.9	11.4	81.3	26 x 1.85	7 x 1.44	4.32	11.7	26.8	0.413	194	90	284	290
95/15	94.4	15.3	109.7	26 x 2.15	7 x 1.67	5.01	13.6	35.75	0.3058	262	121	383	350
95/55	96.5	56.3	152.8	12 x 3.20	7 x 3.20	9.6	16	79.35	0.2992	269	443	712	350
105/75	105.7	75.5	181.5	14 x 3.10	19 x 2.25	11.25	17.5	108.45	0.2733	295	596	891	370
120/20	121.6	19.8	141.4	26 x 2.44	7 x 1.90	5.7	15.5	45.65	0.2374	338	156	494	410
120/70	122	71.3	193.3	12 x 3.60	7 x 3.60	10.8	18	100	0.2364	341	560	901	410
125/30	127.9	29.8	157.7	30 x 2.33	7 x 2.33	6.99	16.1	57.6	0.2259	356	235	591	425
150/25	148.9	24.2	173.1	26 x 2.70	7 x 2.10	6.31	17.1	55.25	0.1939	414	191	605	470
170/40	171.8	40.1	211.9	30 x 2.70	7 x 2.70	8.1	18.9	76.75	0.1682	479	315	794	520
185/30	183.8	29.8	213.6	26 x 3.00	7 x 2.33	6.99	19	66.2	0.1571	511	235	746	535
210/35	209.1	34.1	243.2	26 x 3.20	7 x 2.49	7.47	20.3	74.9	0.138	583	267	850	590
210/50	212.1	49.5	261.6	30 x 3.00	7 x 3.00	9	21	93.9	0.1363	593	388	981	610
230/30	230.9	29.8	260.7	24 x 3.50	7 x 2.33	6.99	21	73.1	0.1249	642	235	877	630
240/40	243	39.5	282.5	26 x 3.45	7 x 2.68	8.04	21.9	86.4	0.1188	677	310	987	645
265/35	263.7	34.1	297.8	24 x 3.74	7 x 2.49	7.47	22.4	83.05	0.1117	735	267	1002	680
300/50	304.3	49.5	353.7	26 x 3.86	7 x 3.00	9	24.5	107	0.0949	848	388	1236	740
305/40	304.6	39.5	344.1	54 x 2.68	7 x 2.68	8.04	24.1	99.4	0.0949	850	310	1160	740
340/30	339.3	29.8	369.1	48 x 3.00	7 x 2.33	6.99	25	92.9	0.0853	945	235	1180	790
380/50	382	49.5	431.5	54 x 3.00	7 x 3.00	9	27	123.1	0.0757	1065	388	1453	840
385/35	386	34.1	420.1	48 x 3.20	7 x 2.49	7.47	26.7	104.8	0.0749	1077	267	1344	850
435/55	434.3	56.3	490.6	54 x 3.20	7 x 3.20	9.6	28.8	136.45	0.0666	1210	443	1653	900
450/40	448.7	39.5	488.2	48 x 3.45	7 x 2.68	8.04	28.7	120.75	0.0644	1251	310	1561	920
490/65	490.3	63.6	553.9	54 x 3.40	7 x 3.40	10.2	30.6	153.1	0.59	1368	498	1866	960
495/35	494.1	34.1	528.2	45 x 3.74	7 x 2.49	7.47	29.9	121.8	0.0585	1381	235	1616	985
510/45	510.2	45.3	555.5	48 x 3.68	7 x 2.87	8.61	30.7	136.65	0.0565	1423	355	1778	995
550/70	550	71.3	621.3	54 x 3.60	7 x 3.60	10.8	32.4	170.6	0.0526	1532	560	2092	1020
560/50	561.7	49.5	611.2	48 x 3.86	7 x 3.00	9	32.2	148.95	0.0515	1566	388	1954	1040
570/40	571.2	39.5	610.7	45 x 4.02	7 x 2.68	8.04	32.2	136.2	0.0512	1578	310	1888	1050
650/45	635.5	45.3	698.8	45 x 4.30	7 x 2.87	8.61	34	55.5	0.0458	1816	355	2171	1120
680/85	678.8	86	764.6	54 x 4.00	19 x 2.40	12	36	206.25	0.0426	1890	676	2566	1150
1045/45	1045.6	45.3	1090.9	72 x 4.30	7 x 2.87	8.61	43	217.6	0.0277	2896	355	3251	1580

CODE	SECTION mm²				STRANDING No. x mm		OVERALL DIAMETER mm		RATED STRENGTH kN	ELECTRICAL RESISTANCE 20ºC. ohms/km	CONDUCTOR WEIGHT kg/km
	Aluminium		Steel	Total	Al	Steel	Core	Total			Al	Steel	Total
	Nominal	Teorical	Steel	Total	Al	Steel	Core	Total			Al	Steel	Total
GOPHER	25	26.24	4.38	30.62	6 x 2.36	1 x 2.36	2.36	7.08	9.61	1.093	71	35	106
WEASEL	30	31.61	5.27	36.88	6 x 2.59	1 x 2.59	2.59	7.77	11.45	0.9077	87	41	128
FERRET	40	42.41	7.07	49.48	6 x 3.00	1 x 3.00	3	9	15.2	0.6766	117	55	172
RABBIT	50	52.88	8.82	61.7	6 x 3.35	1 x 3.35	3.35	10.05	18.35	0.5426	145	69	214
HORSE	70	73.37	42.63	116.2	12 x 2.79	7 x 2.79	8.37	13.95	61.2	0.3936	203	335	538
DOG	100	105	13.5	118.5	6 x 4.72	7 x 1.57	4.71	14.15	32.7	0.2733	288	106	394
TIGER	125	131.1	30.6	161.7	30 x 2.36	7 x 2.36	7.08	16.52	58	0.2202	365	237	602
WOLF	150	158.1	36.8	194.9	30 x 2.59	7 x 2.59	7.77	18.13	69.2	0.1828	441	285	726
DINGO	150	158.7	8.8	167.5	18 x 3.35	1 x 3.35	3.35	16.75	35.7	0.1815	437	69	506
LYNX	175	183.4	42.8	226.2	30 x 2.79	7 x 2.79	8.37	19.53	79.8	0.1576	507	335	842
CARACAL	175	184.3	10.2	194.5	18 x 3.61	1 x 3.61	3.61	18.05	41.1	0.1563	507	80	587
PANTHER	200	212.1	49.4	261.5	30 x 3.00	7 x 3.00	9	21	92.25	0.1363	586	388	974
JAGUAR	200	210.6	11.7	222.3	18 x 3.86	1 x 3.86	3.86	19.3	46.55	0.1367	580	91	671
ZEBRA	400	428.9	55.6	484.5	54 x 3.18	7 x 3.18	9.54	28.62	131.9	0.0674	1185	436	1621

CODE	SECTION mm²			STRANDING No. x mm		OVERALL DIAMETER mm		RATED STRENGTH kN	ELECTRICAL RESISTANCE 20ºC. ohms/km	CONDUCTOR WEIGHT kg/km
CODE	Al	Steel	Total	Al	Steel	Core	Total	RATED STRENGTH kN	ELECTRICAL RESISTANCE 20ºC. ohms/km	Al	Steel	Total
LA-30	26.7	4.4	31.1	6 x 2.38	1 x 2.38	2.38	7.14	9.9	1.0749	73.2	37.4	107.9
LA-56	46.8	7.8	54.6	6 x 3.15	1 x 3.15	3.15	9.45	16.4	0.6136	128.3	60.8	189.1
LA-78	67.4	11.2	78.6	6 x 3.78	1 x 3.78	3.78	11.34	23.1	0.4261	185	87	272
LA-110	94.2	22	116.2	30 x 2.00	7 x 2.00	6	14	43.1	0.3066	260.4	172.3	433
LA-145	119.3	27.8	147.1	30 x 2.25	7 x 2.25	6.75	15.75	54.1	0.2422	330	218	548
LA-180	147.3	34.3	181.6	30 x 2.50	7 x 2.50	7.5	17.5	63.9	0.1962	407	269	676
LA-280	241.7	39.4	281.1	26 x 3.44	7 x 2.68	8.04	21.8	84.5	0.1194	667	310	977
LA-380	337.3	43.7	381	54 x 2.82	7 x 2.82	8.46	25.38	106.5	0.0857	932	343	1275
LA-455	402.3	52.2	454.5	54 x 3.08	7 x 3.08	9.24	27.72	124	0.0718	1112	409	1521
LA-545	484.5	62.8	547.3	54 x 3.38	7 x 3.38	10.14	30.42	148.5	0.0596	1340	492	1832
LA-635	565	71.6	636.6	54 x 3.65	19 x 2.19	10.95	32.85	175	0.0511	1562	563	2125
RAIL	483.8	33.5	517.3	45 x 3.70	7 x 2.47	7.41	29.61	115.25	0.0594	1339	260	1599

CODE	SECTION mm²			STRANDING No. x mm		OVERALL DIAMETER mm		TENSILE S.STEEL HBAR.	RATED STRENGTH kN	ELECTRICAL RESISTANCE 20ºC.	CONDUCTOR WEIGHT kg/km			GREASE WEIGHT g/m
CODE	Al	Steel	Total	Al	Steel	Core	Total			ohms/km	Al	Steel	Total	Outside layer greased	Outside layer ungreased
CANNA 37.7	28.27	9.42	37.69	9 x 2.00	3 x 2.00	-	8.3	117.6	1.625	1.02	80	155	75	6	2
CANNA 59.7	37.7	21.99	59.69	12 x 2.00	7 x 2.00	6	10	117.6	3.27	0.766	103	276	173	7	3
CANNA 75.5	47.71	27.83	75.54	12 x 2.25	7 x 2.25	6.75	11.25	117.6	4.115	0.605	128	349	220	10	4
CANNA 116.2	94.25	21.99	116.24	30 x 2.00	7 x 2.00	6	14	117.6	4.315	0.306	258	432	174	13	7
CROCUS 116.12	94.25	21.99	116.24	30 x 2.00	7 x 2.00	6	14	156.8	4.93	0.306	258	432	174	13	7
CANNA 147.1	119.28	27.83	147.11	30 x 2.25	7 x 2.25	6.75	15.75	117.6	5.4	0.243	327	547	220	18	10
CROCUS 147.1	119.28	27.83	147.11	30 x 2.25	7 x 2.25	6.75	15.75	156.8	6.18	0.243	327	547	220	18	10
CANNA 181.6	147.26	34.36	181.62	30 x 2.50	7 x 2.50	7.5	17.5	117.6	6.49	0.197	403	675	272	22	12
CROCUS 181.6	147.26	34.36	181.62	30 x 2.50	7 x 2.50	7.5	17.5	156.8	7.42	0.197	403	675	272	22	12
CANNA 228	184.72	43.1	227.82	30 x 2.80	7 x 2.80	8.4	19.6	117.6	8.05	0.157	506	848	342	26	15
CROCUS 228	184.72	43.1	227.82	30 x 2.80	7 x 2.80	8.4	19.6	156.8	9.21	0.157	506	848	342	26	15
CANNA 288	233.8	54.55	288.35	30 x 3.15	7 x 3.15	9.45	22.05	117.6	9.85	0.124	642	1074	432	33	18
CROCUS 288	233.8	54.55	288.35	30 x 3.15	7 x 3.15	9.45	22.05	156.8	11.38	0.124	642	1074	432	33	18
CROCUS 297	221.67	75.54	297.21	36 x 2.80	19 x 2.25	11.25	22.45	156.8	17.72	0.1305	594	624	1218	35	20
CROCUS 412	325.72	85.95	411.67	32 x 3.60	19 x 2.40	12	26.4	156.8	17.33	0.0898	676	917	1593	50	25
CROCUS 612	507.83	104.7	611.76	66 x 3.13	19 x 2.65	13.25	32.2	156.8	23.15	0.0566	824	1417	2241	70	40
CROCUS 865	717.33	148.06	865.39	66 x 3.72	19 x 3.15	15.75	38.1	156.8	31.9	0.0405	1164	2010	3174	100	55
CROCUS 1185	956.666	227.82	1184.48	54 x 2.8	37 x 2.80 66 x +3.47	19.7	44.7	156.8	48.05	0.0303	1796	2682	4478	140	100

Why Huadong Cable

Our vision is to become an internationally renowned brand in the field of cables; customer satisfaction, employee promotion, and corporate development are our service tenets; high standards, globalization, and building an international brand are our business philosophy.

About HuaDong

Henan Huadong Cable Co., Ltd. was founded in 1999 which is a joint-stock national high-tech enterprise integrating scientific research, industry and trade. Huadong Cable is deeply integrated into the "Belt and Road" construction and exports to more than 130 countries around the world, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

HuaDong Technology

Huadong Cable focuses on technology research and development which has 60 professional personnel with senior professional titles, and has more than 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure the quality of cables.

Main Products

Our main products : marine cables, power cables, overhead cables, fireproof cables, low-smoke halogen-free cables, rubber cables, high temperature resistant cables, instrument and control cables, solar cables and other products.
