Aerial Bundled Cable (ABC)

ABC Cable Description

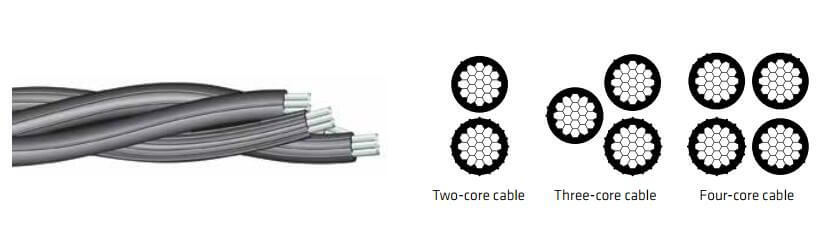

ABC cables consist of multiple insulated phase conductors tightly bundled together, typically with a bare neutral conductor. Each conductor, except the neutral conductor, is surrounded by an insulating layer (typically XLPE or PVC).

Low-voltage ABC cables are rated for 0.6/1 kV and primarily constructed from aluminum. They feature insulated phase conductors and a neutral conductor (which may be bare or insulated). Insulation, such as XLPE or PE, protects against electric shock and external interference.

Medium-voltage ABC cables, typically rated between 1 kV and 35 kV, consist of insulated phase conductors (typically aluminum) wrapped around a central support conductor and protected by a protective outer sheath made from high-density polyethylene (HDPE).

ABC Cable Construction

	Aerial Bundle Cable ABC 1kV	LV BS7870 Aerial Bundle Cable 1kV	LV NF C33-209 Aerial Bundle Cable 1kV	LV AS/NZS 3560 Part 1 Aerial Bundle Cable 1kV	LV TNB Aerial Bundle Cable 1kV	LV HD626 S1 Aerial Bundle Cable 1kV
Conductor	Class 2 stranded round aluminium	Class 2 stranded Aluminium
Insulation	XLPE (Cross-linked Polyethylene)

	MV AS/NZS 3599 P1 Unscreened Aerial Bundle Cable 6.35/11kV	MV AS/NZS 3599 P1 LD HD Screen Aerial Bundle Cable 6.35/11kV	MV IEC60502-2 Aerial Bundle Cable 6.35/11kV	MV AS/NZS 3599 P1 Unscreened Aerial Bundle Cable 12.7/22kV	MV AS/NZS 3599 P1 LD HD Screen Aerial Bundle Cable 12.7/22kV	MV IEC60502-2 Aerial Bundle Cable 19/33kV
Conductor	Class 2 stranded Aluminium
Insulation	XLPE (Cross-linked Polyethylene)
Screen	-	Copper Wires or Copper Tape (Light Duty/Heavy Duty)	Copper Wires or Copper Tape	-	Copper Wires or Copper Tape (Light Duty/Heavy Duty)	Copper Wires or Copper Tape
Outer Sheath	HDPE (High Density Polyethylene)
Support Conductor	Galvanised Steel Wires

ABC Cable Characteristics

	Aerial Bundle Cable ABC 1kV	LV BS7870 Aerial Bundle Cable 1kV	LV NF C33-209 Aerial Bundle Cable 1kV	LV AS/NZS 3560 Part 1 Aerial Bundle Cable 1kV	LV TNB Aerial Bundle Cable 1kV	LV HD626 S1 Aerial Bundle Cable 1kV
Voltage Rating	0.6/1kV
Temperature Rating	Minimum temperature for cable laying: -5°C Maximum working temperature: 75°C Maximum short-circuit temperature: 250°C	-40°C to +90°C
Minimum Bending Radius	12 x overall diameter	18 x overall diameter

	MV AS/NZS 3599 P1 Unscreened Aerial Bundle Cable 6.35/11kV	MV AS/NZS 3599 P1 LD HD Screen Aerial Bundle Cable 6.35/11kV	MV IEC60502-2 Aerial Bundle Cable 6.35/11kV	MV AS/NZS 3599 P1 Unscreened Aerial Bundle Cable 12.7/22kV	MV AS/NZS 3599 P1 LD HD Screen Aerial Bundle Cable 12.7/22kV	MV IEC60502-2 Aerial Bundle Cable 19/33kV
Voltage Rating	6.35/11kV			12.7/22kV		19/33kV

Aerial Bundle Cable ABC 1kV

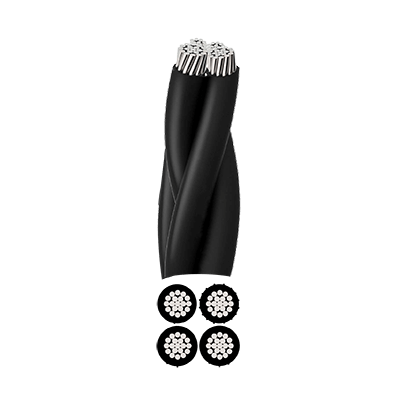

LV BS7870 Aerial Bundle Cable 1kV
LV NF C33-209 Aerial Bundle Cable 1kV
LV AS/NZS 3560 Part 1 Aerial Bundle Cable 1kV
LV TNB Aerial Bundle Cable 1kV
LV HD626 S1 Aerial Bundle Cable 1kV

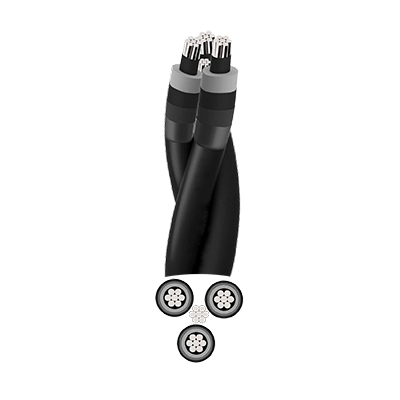

MV AS/NZS 3599 P1 Unscreened Aerial Bundle Cable 6.35/11kV
MV AS/NZS 3599 P1 LD HD Screen Aerial Bundle Cable 6.35/11kV
MV IEC60502-2 Aerial Bundle Cable 6.35/11kV
MV AS/NZS 3599 P1 Unscreened Aerial Bundle Cable 12.7/22kV

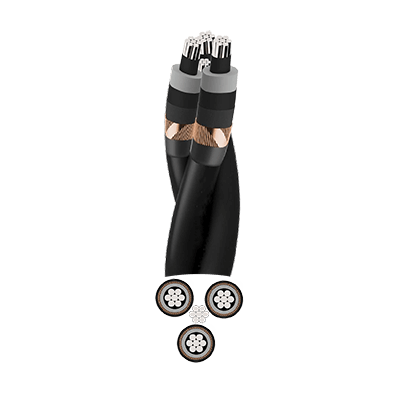

MV AS/NZS 3599 P1 LD HD Screen Aerial Bundle Cable 12.7/22kV
MV IEC60502-2 Aerial Bundle Cable 19/33kV

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL INSULATION THICKNESS mm	MAX DIAMETER PHASE CONDUCTOR (EXC. RIBS) mm	MAX DIAMETER NEUTRAL CORE (INC. RIBS) mm	NOMINAL WEIGHT kg/km
2	25	1.3	9.7	10.2	200
2	35	1.3	10.7	11.2	266
2	50	1.5	12.1	12.6	374
2	70	1.5	13.8	14.3	506
2	95	1.7	16.1	16.6	681
2	120	1.7	17.6	18.1	816
3	25	1.3	9.7	10.2	318
3	35	1.3	10.7	11.2	414
3	50	1.5	12.1	12.6	545
3	70	1.5	13.8	14.3	756
3	95	1.7	16.1	16.6	999
3	120	1.7	17.6	18.1	1224
5	25	1.3	9.7	10.2	530
5	35	1.3	10.7	11.2	690
5	50	1.5	12.1	12.6	910
5	70	1.5	13.8	14.3	1260
5	95	1.7	16.1	16.6	1665
5	120	1.7	17.6	18.1	2040

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE Ω/Km	CURRENT RATING A
1	16	8	74	2.5	1.91	72
1	25	9	106	4	1.2	107
1	35	10.5	138	5.5	0.868	132
1	50	11.8	182	8	0.641	165
1	70	13	252	10.7	0.443	205
1	95	15.4	333	13.7	0.32	240
1	120	17	408	18.6	0.253	290
1	150	19	502	23.2	0.206	334
1	185	21	611	28.7	0.164	389
1	240	24	801	37.2	0.125	467
2	16	15.6	147	2.5	1.91	72
2	25	18	208	4	1.2	107
2	35	20	277	5.5	0.868	132
2	50	23.5	361	8	0.641	165
2	70	25.4	505	10.7	0.443	205
2	95	30.3	666	13.7	0.32	240
2	150	38	1004	23.2	0.206	334
4	16	18.8	286	2.5	1.91	72
4	25	21.2	430	4	1.2	107
4	35	24.1	553	5.5	0.868	132
4	50	27.8	746	8	0.641	165
4	70	31.8	1009	10.7	0.443	205
4	95	37.8	1332	13.7	0.32	240
4	120	54.4	1632	18.6	0.253	290
4+1	50+25	319	814	8.0/4.0	0.641/1.200	165/107
4+1	50+35	319	845	8.5/5.5	0.641/0.868	165/132
4+1	70+25	360	1105	10.7/4.0	0.443/1.200	205/107
4+2	70+25+25	400	1217	10.7/4.0	0.443/1.200	205/107
4+1	95+25	418	1438	13.7/4.0	0.320/1.200	240/107
4+2	95+25+25	420	1544	13.7/4.0	0.320/1.200	240/107
4+1	120+25	590	2050	18.6/4.0	0.253/1.200	290/107

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE Ω/Km	CURRENT RATING A
2	10	12.8	93	1.5	3.08	38
2	16	14.8	129	2.3	1.91	72
2+2	16/1.5	14.8	176	2.3	1.910/12.100	72
2	25	18	202	3.8	1.2	107
2+2	25/1.5	18	249	3.8	1.200/12.100	107
2	35	20.8	269	5.2	0.868	132
2+2	35/1.5	20.8	316	5.2	0.868/12.100	132
2	50	23.4	352	7.6	0.641	165
2+2	50/1.5	23.4	399	7.6	0.641/12.100	165
4	10	15.4	183	1.5	3.08	38
4	16	17.8	257	2.3	1.91	72
4+2	16/1.5	17.8	304	2.3	1.910/12.100	72
4	25	21.7	404	3.8	1.2	107
4+2	25/1.5	21.7	451	3.8	1.200/12.100	107
4	35	25.1	539	5.2	0.868	132
4+2	35/1.5	25.1	586	5.2	0.868/12.100	132
1+3	54.6/25	21.7	507	3.8	0.630/1.200	107
1+3+1	54.6/25/16	24.3	573	3.8/2.3	0.630/1.200/1.910	107/72
1+3+2	54.6/25/16	29.7	639	3.8/2.3	0.630/1.200/1.910	107/72
1+3+3	54.6/25/16	31.1	705	3.8/2.3	0.630/1.200/1.910	107/72
1+3	54.6/35	25.1	615	5.2	0.630/0.868	132
1+3+1	54.6/35/16	28.1	680	5.2/2.3	0.630/0.868/1.910	132/72
1+3+2	54.6/35/16	34.3	748	5.2/2.3	0.630/0.868/1.910	132/72
1+3+3	54.6/35/16	35.9	814	5.2/2.3	0.630/0.868/1.910	132/72
1+3+1	54.6/35/25	28.1	714	5.2/3.8	0.630/0.868/1.200	132/107
1+3	54.6/50	28.2	741	7.6	0.630/0.641	165
1+3+1	54.6/35/25	31.6	806	7.6/2.3	0.630/0.641/1.910	165/72
1+3+2	54.6/35/25	38.6	875	7.6/2.3	0.630/0.641/1.910	165/72
1+3+3	54.6/35/25	40.4	940	7.6/2.3	0.630/0.641/1.910	165/72
1+3+1	54.6/50/25	31.6	841	7.6/3.8	0.630/0.641/1.200	165/107
1+3	54.6/70	33	950	10.2	0.630/0.443	205
1+3+1	54.6/70/16	37	1014	10.2/2.3	0.630/0.443/1.910	205/72
1+3+2	54.6/70/16	45.2	1083	10.2/2.3	0.630/0.443/1.910	205/72
1+3+3	54.6/70/16	47.3	1148	10.2/2.3	0.630/0.443/1.910	205/72
1+3+1	54.6/70/25	37	1048	10.2/3.8	0.630/0.443/1.200	205/107
1+3+2	54.6/70/25	45.2	1150	10.2/3.8	0.630/0.443/1.200	205/107
1+3+3	54.6/70/25	47.3	1250	10.2/3.8	0.630/0.443/1.200	205/107
1+3	54.6/95	37.4	1176	13.5	0.630/0.320	240
1+3+1	54.6/95/16	41.9	1243	13.5/2.3	0.630/0.320/1.910	240/72

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE Ω/Km	CURRENT RATING A
2	16	15	140	4.4	1.91	78
2	25	17.6	210	7	1.2	105
2	35	19.6	270	9.8	0.868	125
2	50	22.8	370	11.4	0.641	150
2	95	30.6	680	15.3	0.32	230
3	25	19	310	8.8	1.2	97
3	35	21.1	410	9.8	0.868	120
3	50	24.6	550	11.4	0.641	140
4	16	18.1	290	8.8	1.91	74
4	25	21.2	410	14	1.2	97
4	35	23.7	550	19.6	0.868	120
4	50	27.5	740	28	0.641	140
4	70	31.9	1000	39.2	0.443	175
4	95	36.9	1370	53.2	0.32	215
4	120	40.6	1690	67.2	0.253	250
4	150	43.9	2020	84	0.206	280

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE Ω/Km	CURRENT RATING A
3+1	16/25	19	290	4	1.2	107
3+1	25/25	23.2	400	5.5	0.868	132
3+1	35/25	25.6	500	8	0.641	165
3+1	50/35	30	680	10.7	0.443	205
3+1	70/50	34.9	920	13.7	0.32	240
3+1	95/70	40.6	1270	18.6	0.253	290
3+1	120/95	44.1	1510	23.2	0.206	334
3+1	150/120	49.2	1870	28.7	0.164	389
3+1	185/120	54.9	2340	37.2	0.125	467
3+2	25/25/16	23.2	470	2.5	1.91	72
3+2	35/25/16	25.6	560	4.0	1.2	107
3+2	50/35/16	30	740	5.5	0.868	132
3+2	70/50/16	34.9	980	8.0	0.641	165
3+2	95/70/16	40.6	1330	10.7	0.443	205
3+2	120/70/16	44.1	1580	13.7	0.32	240
3+2	150/95/16	49.2	1940	23.2	0.206	334
3+2	185/120/16	54.9	2410	2.5	1.91	72

NUMBER CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT KG/KM	MINIMUM BREAKING LOAD KN	MAXIMUM CONDUCTOR RESISTANCE Ω/Km	CURRENT RATING A
2	16	72	147	1.91	1.91	2.5
2	25	107	208	1.2	1.2	4
2	35	132	277	0.868	0.868	5.5
2	50	165	361	0.641	0.641	8
4	16	72	286	1.91	1.91	2.5
4	25	107	430	1.2	1.2	4
4	35	132	553	0.868	0.868	5.5
4	50	165	746	0.641	0.641	8
4	70	205	1009	0.443	0.443	10.7
4	95	240	1332	0.32	0.32	13.7
4	120	290	1632	0.253	0.253	18.6
4+1	35/35	132/132	694	0.868/0.868	0.868/0.868	5.5/5.5
4+1	50/25	165/107	814	0.641/1.200	0.641/1,200	8.0/4.0
4+1	50/35	165/132	845	0.641/0.868	0.641/0.868	8.5/5.5
4+1	70/25	205/107	1105	0.443/1.200	0.443/1.200	10.7/4.0
4+2	70/25/25	205/107	1217	0.443/1.200	0.443/1.200	10.7/4.0
4+2	70/35	205/132	1150	0.443/0.868	0.443/0.868	10.7/5.5
4+2	70/35/35	205/132	1289	0.443/0.868	0.443/0.868	10.7/5.5
4+1	95/25	240/107	1438	0.320/1.200	0.320/1.200	13.7/4.0
4+1	95/35	240/132	1467	0.320/0.868	0.320/0.868	13.7/5.5
4+2	95/25/25	240/107	1544	0.320/1.200	0.320/1.200	13.7/4.0

NO. CORES	NOMINAL CROSS SECTIONAL AREA mm²	THICKNESS OF INSULATION mm	NOMINAL THICKNESS SHEATH mm	MESSENGER WIRE STRANDING No x mm²	NOMINAL SECTIONAL AREA MM²	BREAKING LOAD KN
3	35	3.4	1.2	7/4.75	52.4	1370
3	50	3.4	1.2	7/4.75	54.6	1530
3	70	3.4	1.2	7/4.75	57.8	1790
3	95	3.4	1.2	7/4.75	61.3	2100
3	120	3.4	1.2	19/3.50	67.3	2540
3	150	3.4	1.2	19/3.50	70.1	2840
3	185	3.4	1.2	19/3.50	73.1	3190

NO. CORES	NOMINAL CROSS SECTIONAL AREA mm²	THICKNESS OF INSULATION mm	COPPER WIRE SCREEN STRANDING No x mm²	NOMINAL THICKNESS SHEATH mm	GALVANISED STEEL WIRE STRANDING No x mm²	NOMINAL SECTIONAL AREA mm²	BREAKING LOAD KN
LIGHT DUTY SCREEN
3	35	3.4	25/0.85	1.8	7/2.00	54.1	1820
3	35	3.4	25/0.85	1.8	19/2.00	58.1	2130
3	50	3.4	25/0.85	1.8	19/2.00	60.4	2300
3	70	3.4	25/0.85	1.8	19/2.00	63.6	2570
3	95	3.4	25/0.85	1.8	19/2.00	67	2900
3	120	3.4	25/0.85	1.8	19/2.00	69.8	3190
3	150	3.4	25/0.85	1.9	19/2.00	73	3530
3	185	3.4	25/0.85	1.9	19/2.00	76	3890
HEAVY DUTY SCREEN
3	35	5.5	40/0.85	1.8	7/2.00	54.1	2050
3	35	5.5	40/0.85	1.8	19/2.00	58.1	2360
3	50	5.5	23/1.35	1.8	19/2.00	62.4	2820
3	70	5.5	32/1.35	1.8	19/2.00	65.6	3440
3	95	5.5	39/1.35	1.8	19/2.00	69	4030
3	120	5.5	39/1.35	1.8	19/2.00	71.8	4320
3	150	5.5	39/1.35	1.9	19/2.00	75	4670
3	185	5.5	39/1.35	1.9	19/2.00	78	5020

NUMBER OF CORES	NOMINAL SECTIONAL AREA mm²	PHASE CONDUCTOR STRANDING NO.X mm²	SUPPORT CONDUCTOR STRANDING NO. X mm²	MAXIMUM CONDUCTOR RESISTANCE Ω/Km	BREAKING LOAD KN	CONTINUOUS CURRENT RATING AT 30°C AMBIENT TEMP A
3+1	50/25	19/1.78	7/3.0	0.641/0.868	60	116
3+1	70/50	19/.14	7/3.15	0.443/0.641	62	210
3+1	95/50	19/2.52	7/3.0	0.253/0.641	60	173
3+1	150/50	37/2.25	7/3.15	0.206/0.641	62	365
3+1	185/120	37/2.52	7/4.67	0.164/0.206	150	259
3+1	240/50	61/2.25	7/3.15	0.125/0.641	62	500

NO. CORES	NOMINAL CROSS SECTIONAL AREA mm²	THICKNESS OF INSULATION mm	NOMINAL THICKNESS SHEATH mm	MESSENGER WIRE STRANDING No x mm²	NOMINAL SECTIONAL AREA MM²	BREAKING LOAD KN
3	35	5.5	1.2	7/4.75	61	1780
3	50	5.5	1.2	7/4.75	63.3	1970
3	70	5.5	1.2	7/4.75	66.5	2260
3	95	5.5	1.2	7/4.75	69.9	2600
3	120	5.5	1.2	19/3.50	75.9	3070
3	150	5.5	1.2	19/3.50	78.7	3390
3	185	5.5	1.2	19/3.50	81.7	3760

NO. CORES	NOMINAL CROSS SECTIONAL AREA mm²	THICKNESS OF INSULATION mm	COPPER WIRE SCREEN STRANDING No x mm²	NOMINAL THICKNESS SHEATH mm	GALVANISED STEEL WIRE STRANDING No x mm²	NOMINAL SECTIONAL AREA MM²	BREAKING LOAD KN
LIGHT DUTY SCREEN
3	35	5.5	25/0.85	1.8	7/2.00	62.7	2280
3	35	5.5	25/0.85	1.8	19/2.00	66.7	2580
3	50	5.5	25/0.85	1.8	19/2.00	69	2780
3	70	5.5	25/0.85	1.9	19/2.00	72.6	3110
3	95	5.5	25/0.85	1.9	19/2.00	76	3460
3	120	5.5	25/0.85	2	19/2.00	79.2	3810
3	150	5.5	25/0.85	2	19/2.00	82.8	4230
3	185	5.5	25/0.85	2.1	19/2.00	86.2	4650
HEAVY DUTY SCREEN
3	35	5.5	40/0.85	1.8	7/2.00	62.7	2510
3	35	5.5	40/0.85	1.8	19/2.00	66.7	2810
3	50	5.5	23/1.35	1.8	19/2.00	71	3300
3	70	5.5	32/1.35	1.9	19/2.00	74.6	3970
3	95	5.5	39/1.35	1.9	19/2.00	78	4600
3	120	5.5	39/1.35	2	19/2.00	81.2	4950
3	150	5.5	39/1.35	2	19/2.00	84.8	5360
3	185	5.5	39/1.35	2.1	19/2.00	88.2	5790

NUMBER OF CORES	NOMINAL SECTIONAL AREA mm²	PHASE CONDUCTOR STRANDING NO.X mm²	SUPPORT CONDUCTOR STRANDING NO.X mm²	MAXIMUM CONDUCTOR RESISTANCE Ω/Km	BREAKING LOAD KN	CONTINUOUS CURRENT RATING AT 30°C AMBIENT TEMP A
3+1	50/50	19/1.78	7/3.0	0.641/0.641	60	165
3+1	70/50	19/2.14	7/3.15	0.443/0.641	62	250
3+1	150/50	37/2.25	7/3.0	0.206/0.641	60	315
3+1	185/120	37/2.52	7/3.57	0.164/0.443	91	355
