AMKA Cable

AMKA Cable Description

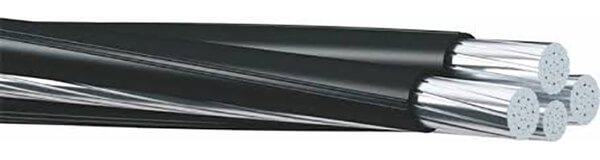

AMKA cables use insulated aluminum phase conductors tightly wound around a central aluminum alloy crossbeam, which serves as both the neutral and support conductor. Designed for outdoor pole mounting, it is also suitable for ground connections on buildings. Even when exposed to sunlight, humidity, high temperatures, frost, or a combination thereof, it can be stored outdoors unshaded for up to 5 years without electrical or mechanical degradation.

AMKA Cable Construction

Phase conductor
Al, class 2
Neutral conductor
Al alloy, class 2
Insulation
Black weather reistant PE compound, TIP – 3

AMKA Cable Characteristics

Rated voltage (Uo/U)
0,6/1 kV
Operating ambient temperature
-40°C to +40°C
Maximum conductor operating temperature
70°C

AMKA Cable Specifications

Basic cable data	AMKA 1X16+25	AMKA 3X16+25	AMKA 3X25+35	AMKA 3x35+50	AMKA 3X70+95	AMKA 3X120+95
Diameter of phase cond. (mm):	4,4	4,4	5,8	6,8	9,6	12,7
Nominal thickness of insulation (mm):	1,4	1,4	1,4	1,6	1,8	2,0
Diameter of messenger (neutral) cond. (mm):	5,8	5,8	6,8	8,0	11,3	11,3
Construction of messenger (neutral) cond.:	7x2,30	7x2,30	7x2,70	7x3,12	7x4,36	7x4,36
Max. diameter of cable (mm):	15	22	26	30	41	47
Weight of aluminium (kg/km):	100	185	285	390	775	1229
Weight of cable (kg/km):	140	270	390	530	990	1510
Min. permissible bending radius during laying (m):	0,28	0,42	0,50	0,58	0,78	0,92
Min. permissible bending radius at final installation (m):	0,20	0,30	0,35	0,41	0,55	0,45
Min. tensile strength of messenger (kN):	7,4	7,4	10,3	14,2	27,9	27,9
Max. DC resistance of phase conductor at 20ºC (Ω/km):	1,91	1,91	1,20	0,868	0,443	0,253
Max. DC resistance of messenger at 20ºC (Ω/km):	1380	1380	0,986	0,720	0,363	0,363
Phase reactance (Ω/km):	0,087	0,104	0,098	0,094	0,089	0,075
Messenger reactance (Ω/km):	0,067	0,080	0,080	0,080	0,074	0,074
Max. continuous load (A):	75	70	90	115	180	250
Max. permissible short circuit load for phase conductor, 1 s (kA):	1,0	1,0	1,6	2,3	4,5	5,9
Max. permissible short circuit load for messenger, 1 s (kA):	1,5	1,5	2,1	3,0	5,9	5,9
Effective diameter in wind (mm):	11	20	23	27	36	42
Phase windings step (mm):	600-800	600-800	600-800	700-900	800-1230	1000-1410
