ARE4E / ARE4EX

ARE4E / ARE4EX Cable Description

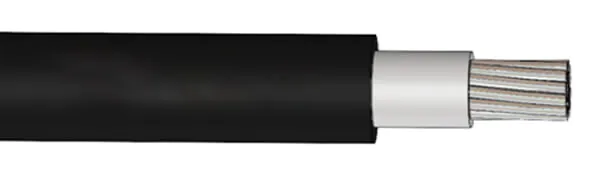

ARE4E is a single-core cable, while ARE4EX is a four-core cable with a visible helix structure (typically three phase conductors plus a neutral wire). It features aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a thermoplastic polyolefin (PO) outer sheath. It is suitable for direct burial, placement in masonry conduits, cable trays, or metal protective structures.

ARE4E / ARE4EX Cable Construction

Conductor
Stranded plain aluminum wire, Class 2
Insulation
XLPE (Cross-linked polyethylene)
Outer Sheath
PO (Thermoplastic polyolefin)

ARE4E / ARE4EX Cable Characteristics

Rated Voltage
0.6/1 kV
Min. bending radius
12 x D

ARE4E Cable Specification

Conductor cross-sections	N. wires conductor	Average insulation thickness (mm)	Average sheath thickness (mm)	Outer diameter MAX (mm)	Approx. cable weight (g/m)	Max. electrical resistance (20°C) (ohm/km)
1 core x mm²
10	7	0,7	1,30	9,0	74	3,08
16	7	0,7	1,30	10,0	93	1,91
25	7	0,9	1,30	11,6	133	1,20
35	7	0,9	1,30	12,6	165	0,868
50	7	1,0	1,30	13,9	210	0,641
95	19	1,1	1,40	17,5	361	0,320
150	19	1,4	1,40	20,9	538	0,206
240	37	1,7	1,50	25,9	846	0,125

ARE4EX Cable Specification

Conductor cross-sections		N. wires conductor		Average insulation thickness (mm)		Average sheath thickness (mm)		Outer diameter MAX (mm)	Approx. cable weight (g/m)	Max. electrical resistance (20°C) (ohm/km)
3 cores + ½ N mm²
95	+50	19	7	1,1	1,0	1,4	1,3	38	1301	0,320	0,641
150	+95	19	19	1,4	1,1	1,4	1,4	47	1986	0,206	0,320
240	+150	37	19	1,7	1,4	1,5	1,4	58	3094	0,125	0,206
