ENW Cable Description
ENW cables are available in 11kV and 33kV versions. The 11kV cable features a three-core construction consisting of three single-core stranded conductors with solid Class 1 aluminum conductors. The 33kV cable uses a single-core, rigidly stranded Class 2 aluminum conductor.
ENW cables utilize aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a metallic shield (copper wire and copper tape). Because they are designed for external installation, typically in cable trays, they are covered with a rugged, abrasion- and tear-resistant MDPE (medium-density polyethylene) sheath.

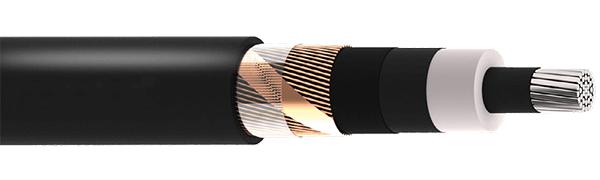

ENW Cable Construction
| Electricity North West (ENW) 11kV Cable | Electricity North West (ENW) 33kV Cable | |
|---|---|---|
| Conductor | Class 1 Solid Aluminium Conductor | Class 2 Stranded Aluminium Conductor |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Screen | Copper Wires and Equalising Tape | |
| Separator | Binding tape | |
| Sheath | MDPE (Medium Density Polyethylene) | |
ENW Cable Characteristics
| Electricity North West (ENW) 11kV Cable | Electricity North West (ENW) 33kV Cable | |
|---|---|---|
| Voltage Rating | 6.35/11 (12)kV | 19/33 (36)kV |
| Temperature Rating | 0°C to +90°C | |

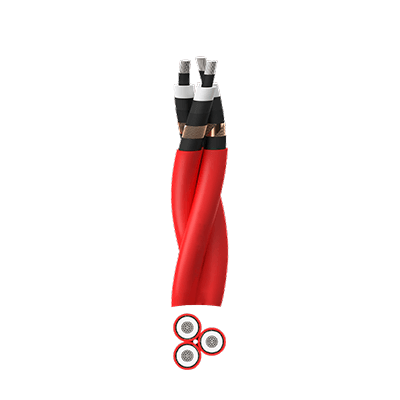

- Electricity North West (ENW) 11kV Cable

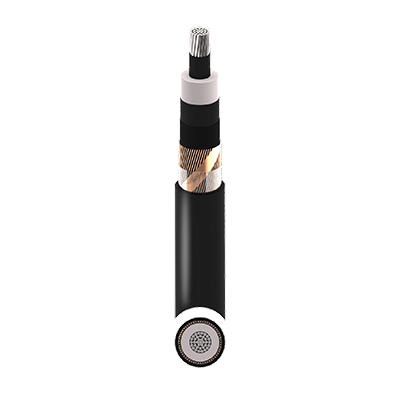

- Electricity North West (ENW) 33kV Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL AREA OF METALLIC SCREEN mm² | NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm² | NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg | MINIMUM BENDING RADIUS mm | MAXIMUM PULLING TENSION kg |
|---|---|---|---|---|---|---|
| 3x1 (Triplex) | 95 | 35 | 62 | 2960 | 920 | 8550 |
| 3x1 (Triplex) | 185 | 35 | 71 | 4020 | 1060 | 16650 |
| 3x1 (Triplex) | 300 | 35 | 81 | 5310 | 1220 | 2700 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL AREA OF METALLIC SCREEN mm² | NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm² | NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg | MINIMUM BENDING RADIUS mm | MAXIMUM PULLING TENSION N |
|---|---|---|---|---|---|---|
| 1 | 500 | 35 | 58 | 3230 | 1060 | 15000 |
| 1 | 630 | 35 | 59 | 3670 | 1140 | 18900 |
| 1 | 800 | 35 | 65 | 4460 | 1220 | 24000 |
