NA2XBY Cable Description
NA2XBY cable features double-layer galvanized steel tape armor (DSTA) for mechanical protection, offering increased flexibility compared to round steel wire or other more rigid armoring. Its flame-retardant PVC outer jacket makes it suitable for indoor fixed installations. Its UV resistance also allows it to be used in exterior applications, but it should be noted that this cable is not ideal for use in water.

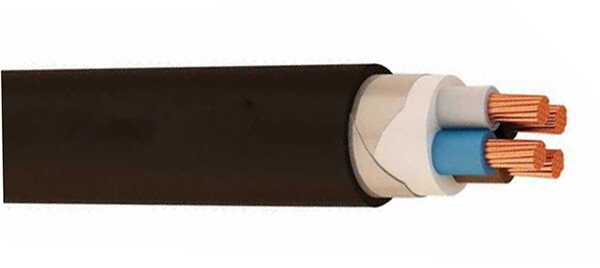

NA2XBY Cable Construction
- Conductor
- Class 2 stranded aluminium conductor
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Filler
- PVC (Polyvinyl Chloride)
- Armour
- Double galvanized steel tape
- Sheath
- PVC (Polyvinyl Chloride)
NA2XBY Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Maximum Operating Temperature
- +90°C
- Minimum Bending Radius
- 15 x overall diameter
NA2XBY Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 | 16 | 19.6 | 624 |
| 2 | 25 | 22.6 | 807 |
| 2 | 35 | 24.8 | 967 |
| 3 | 16 | 20.5 | 741 |
| 3 | 25 | 23.8 | 985 |
| 3 | 35 | 26.2 | 1202 |
| 3 | 35/16 | 27.4 | 1317 |
| 3 | 50 | 29.6 | 1503 |
| 3 | 50/25 | 30.2 | 1573 |
| 3 | 70 | 33.5 | 1914 |
| 3 | 70/35 | 35.3 | 2132 |
| 3 | 95 | 37.6 | 2429 |
| 3 | 95/50 | 39.7 | 2711 |
| 3 | 120 | 42.5 | 2991 |
| 3 | 120/70 | 45 | 3363 |
| 3 | 150/70 | 48.8 | 4271 |
| 3 | 185/95 | 54.1 | 41191 |
| 3 | 240/120 | 61.2 | 6174 |
| 4 | 16 | 22.1 | 859 |
| 4 | 25 | 26 | 1172 |
| 4 | 35 | 28.6 | 1434 |
| 4 | 50 | 32.4 | 1804 |
| 4 | 70 | 36.7 | 2306 |
| 5 | 16 | 23.9 | 1057 |
| 5 | 25 | 28.4 | 1477 |
| 5 | 35 | 31.5 | 1842 |
| 5 | 50 | 35.9 | 2356 |
| 5 | 70 | 40 | 2960 |
| 5 | 95 | 45.3 | 3837 |
