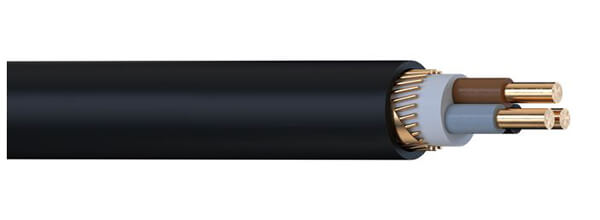

NAYCWY Cable

NAYCWY is a fixed wiring power and control cable with copper conductor, PVC sheath and corrugated concentric conductor (CW), rated voltage 0.6/1kV.

NAYCWY Cable Description

NAYCWY cable is an aluminum-conductor version of NYCWY cable. Designed for installations requiring enhanced electrical and mechanical protection, it is suitable for direct burial, installation in concrete, water, or indoors, and is used in power stations, customer networks, and distribution systems. The concentric conductor can be used as either a PE or PEN conductor, reducing the risk of mechanical damage to the installed cable.

NAYCWY Cable Construction

Conductor
Round or Sector Shaped Stranded Aluminium Conductor
Insulation
PVC (Polyvinyl Chloride)
Inner Sheath
EPDM (Ethylene Propylene Diene Monomer)
Concentric Screen
Bare Copper Wires, Copper Tape Counter Helix
Sheath
PVC (Polyvinyl Chloride) UV Resistant

NAYCWY Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Operating: -35°C to +70°C
Minimum laying temperature: -5ºC
Maximum short circuit temperature for 5 sec: +160ºC
Minimum Bending Radius
Multi Core: 12 x overall diameter

NAYCWY Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	SHAPE OF CONDUCTOR	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF OUTER SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	MAXIMUM PULLING FORCE N
2	16/16	RE	1	1.8	20	584	960
3	16/16	RM	1	1.8	21	644	1440
3	25/16	RM	1.2	1.8	26	887	2250
3	50/25	SM	1.4	1.9	29	1248	4500
3	50/50	SE	1.4	1.9	28	1315	4500
3	70/70	SE	1.4	2	33	1772	6300
3	95/50	SM	1.6	2.2	37	2099	8550
3	95/95	SE	1.6	2.2	37	2326	8550
3	120/70	SM	1.6	2.3	41	2565	10800
3	120/120	SE	1.6	2.3	39	2783	10800
3	150/70	SM	1.8	2.4	45	3083	13500
3	150/150	SM	1.8	2.4	45	3513	13500
3	150/150	SE	1.8	2.4	43	3377	13500
3	185/95	SM	2	2.6	50	3760	16650
3	185/185	SM	2	2.6	50	4324	16650
3	185/185	SE	2	2.6	47	4155	16650
3	240/120	SM	2.2	2.9	57	5604	21600
3	240/240	SE	2.2	2.8	56	4781	21600
4	16/16	RE	1	1.8	23	739	1290
4	25/16	RM	1.2	1.8	28	1052	3000
4	25/16	RE	1.2	1.8	27	1006	3000
4	35/16	RE	1.2	1.8	29	1227	4200
4	50/25	SM	1.4	2	31	1551	6000
4	50/25	SE	1.4	2	31	1474	6000
4	70/35	SM	1.4	2.1	35	1982	11400
4	70/35	SE	1.4	2.1	34	1871	8400
4	95/50	SM	1.6	2.3	40	2588	11400
4	95/50	SE	1.6	2.3	39	2473	11400
4	120/70	SM	1.6	2.4	45	3237	14400
4	120/70	SE	1.6	2.4	43	3117	14400
4	150/70	SM	1.8	2.6	50	3871	18000
4	150/70	SE	1.8	2.6	47	3695	18000
4	185/95	SM	2	2.8	55	4754	22200
4	185/95	SE	2	2.8	53	4539	22200
4	240/120	SM	2.2	3	62	6100	28800
4	240/120	SE	2.2	3	58	5786	28800
