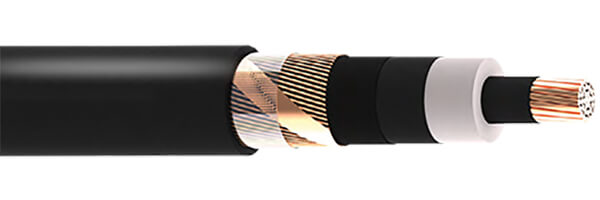

NPG Cable Description
NPG cables typically feature aluminum conductors, XLPE insulation, and MDPE jackets. They are available in voltage ratings of 11kV and 33kV.
NPG 11kV cables use a three-core construction—three single-core cables twisted together (rather than a three-core cable with a collective jacket). The conductor sizes are 95 mm², 185 mm², and 300 mm², respectively. NPG 33kV cables are single-core cables with cross-sectional sizes of 500 mm², 630 mm², and 800 mm², respectively.
NPG Cable Construction
| NPG 11kV Single Core Triplex Cable | NPG 33kV Single Core Cable | |
|---|---|---|
| Conductor | Class 1 Solid Aluminium | Class 2 Stranded Copper |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Screen | Copper Wires and Equalising Tape | |
| Separator | Binding Tape | |
| Sheath | MDPE (Medium Density Polyethylene) | |
NPG Cable Characteristics
| NPG 11kV Single Core Triplex Cable | NPG 33kV Single Core Cable | |
|---|---|---|
| Voltage Rating | 6.35/11 (12)kV | 19/33 (36)kV |
| Temperature Rating | 0°C to +90°C | |
- NPG 11kV Single Core Triplex Cable
- NPG 33kV Single Core Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL AREA OF METALLIC SCREEN mm² | NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm² | NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg | MINIMUM BENDING RADIUS mm | MAXIMUM PULLING TENSION N |
|---|---|---|---|---|---|---|
| 3x1 (Triplex) | 95 | 35 | 62 | 2960 | 920 | 8550 |
| 3x1 (Triplex) | 185 | 35 | 71 | 4020 | 1060 | 16650 |
| 3x1 (Triplex) | 300 | 35 | 81 | 5310 | 1220 | 27000 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL AREA OF METALLIC SCREEN mm² | NOMINAL OVERALL DIAMETER (OR TRIPLEX GROUP IF APPLICABLE) mm² | NOMINAL WEIGHT (OR TRIPLEX GROUP IF APPLICABLE) kg/km | MINIMUM BENDING RADIUS mm | MAXIMUM PULLING TENSION N |
|---|---|---|---|---|---|---|
| 1 | 500 | 35 | 54 | 6200 | 1070 | 24510 |
| 1 | 630 | 35 | 58 | 7600 | 1100 | 30890 |
| 1 | 800 | 35 | 66 | 9400 | 1210 | 39228 |
