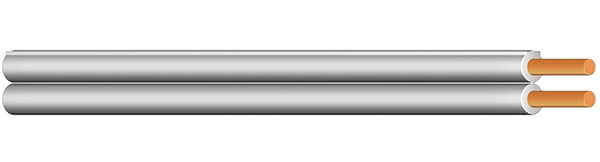

(N)YFAZ Cable Description
(N)YFAZ cable features an easily separable two-core conductor and is commonly used as a speaker cable for connecting audio and home theater equipment. Due to its flexibility, it is also suitable for portable devices and lighting, but should not be subjected to significant mechanical stress.
(N)YFAZ Cable Construction
- Conductor
- Class 5 fine-stranded bare copper
- Sheath
- PVC (Polyvinyl Chloride)
(N)YFAZ Cable Characteristics
- Voltage Rating Uo/U
- 300/300V
- Temperature Rating
- Flexing: -5°C to +70°C
- Minimum Bending Radius
- 6x Overall Diameter
(N)YFAZ Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR CONSTRUCTION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | 0.5 | 16 x 0.20 | 2.1 x 4.4 | 16 |
| 2 | 0.75 | 24 x 0.20 | 2.3 x 5.0 | 22 |
| 2 | 1 | 30 x 0.20 | 2.6 x 5.5 | 28 |
| 2 | 1.5 | 30 x 0.25 | 2.8 x 6.0 | 37 |
| 2 | 2.5 | 50 x 0.25 | 3.6 x 7.5 | 60 |
| 2 | 4 | 56 x 0.30 | 4.4 x 9.5 | 101 |
