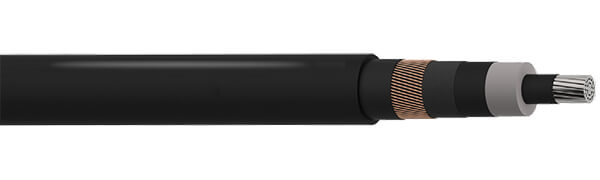

SSE Cable

SSE cables are medium voltage power cables approved by Scottish and Southern Energy (SSE) for connection to the UK National Grid and for use in its electricity distribution network.

SSE Cable Description

SSE cables are typically 11kV or 33kV. 11kV cables are available in single-core or three-core configurations, while 33kV cables are single-core. All three cable types utilize aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a medium-density polyethylene (MPE) jacket, providing a robust, abrasion-resistant, and tear-resistant barrier for cable duct installations.

SSE Cable Construction

	SSE 11kV Single Core Cable	SSE 11kV Three Core Cable	SSE 33kV Single Core Cable
Conductor	Stranded or Solid Aluminium Conductor	Class 2 Stranded Aluminium Conductor
Insulation	XLPE (Cross-Linked Polyethylene)
Screen	Copper Wires and Equalising Copper Tape
Separator	Binding Tape
Sheath	MDPE (Medium Density Polyethylene

SSE Cable Characteristics

	SSE 11kV Single Core Cable	SSE 11kV Three Core Cable	SSE 33kV Single Core Cable
Voltage Rating	6.35/11 (12)kV		19/33 (36)kV
Temperature Rating	0°C to +90°C

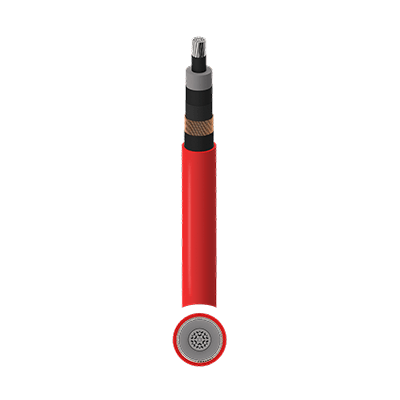

SSE 11kV Single Core Cable

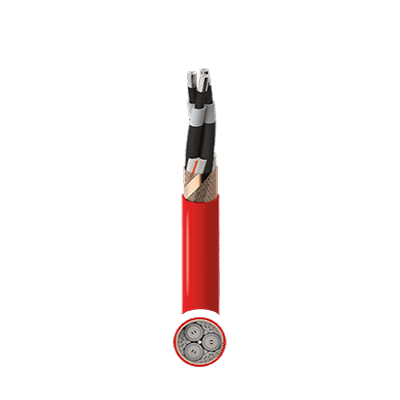

SSE 11kV Three Core Cable

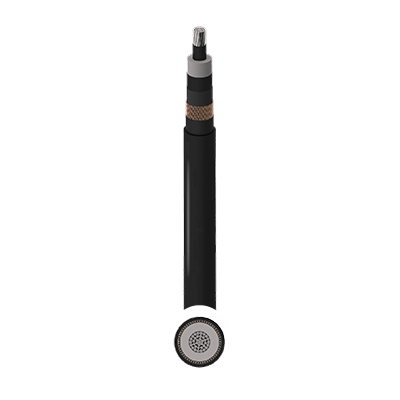

SSE 33kV Single Core Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL AREA OF METALLIC SCREEN mm²	NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm²	NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg	MINIMUM BENDING RADIUS mm	MAXIMUM PULLING TENSION N
1	150	35	31	1160	600	4500
1	500	35	44	2390	880	15000
1	630	35	48	2900	940	18900
1	800	35	51	3340	1040	2400

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL AREA OF METALLIC SCREEN mm²	NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm²	NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg	MINIMUM BENDING RADIUS mm	MAXIMUM PULLING TENSION N
3	150	60	61	3280	1160	13500
3	240	60	70	4380	1340	21600
3	300	60	75	4990	1440	27000

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL AREA OF METALLIC SCREEN mm²	NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm²	NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg	MINIMUM BENDING RADIUS mm	MAXIMUM PULLING TENSION N
1	300	35	47	2250	940	9000
1	400	35	50	2259	1000	12000
1	500	35	53	3010	1060	15000
1	630	35	57	3570	1140	18900
1	800	35	61	4060	1220	24000
