UKPN Cable Description
UK Power Networks (UKPN) is the electricity distribution network operator responsible for power lines in London, southeast England, and the east of England.
UKPN uses different types of cables, such as three-core cables for 6.35/11kV power supply and single-core cables for higher voltages such as 19/33kV. Specific dimensions and characteristics are listed in our technical data sheets.
UKPN Cable Construction

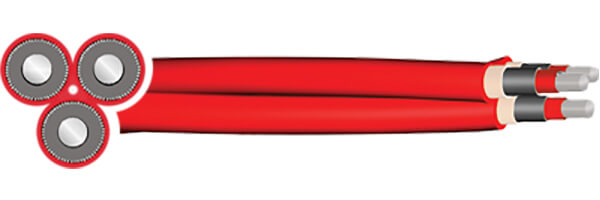

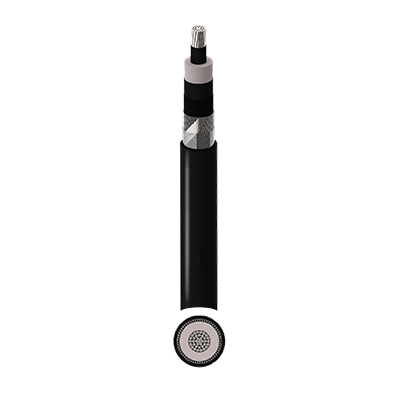

| UKPN 11kV single core triplex cable | UKPN 33kV single core cable | |
|---|---|---|
| Conductor | Stranded or Solid Aluminium Conductor | |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Screen | Aluminium Wires | |
| Separator | Binding Tape | Water Swellable Tape in Open Helix |
| Sheath | MDPE (Medium Density Polyethylene) | |
UKPN Cable Characteristics
| UKPN 11kV single core triplex cable | UKPN 33kV single core cable | |
|---|---|---|
| Voltage Rating (Uo/U) | 6.35/11 (12)kV | 19/33 (36)kV |
| Temperature Rating | 0°C to +90°C | |
- UKPN 11kV single core triplex cable
- UKPN 33kV single core cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL AREA OF METALLIC SCREEN mm² | NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm | NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg | MINIMUM BENDING RADIUS mm | MAXIMUM PULLING TENSION N |
|---|---|---|---|---|---|---|
| 3x1 (Triplex) | 95 | 58 | 59.0-65.5 | 2400 | 920 | 8550 |
| 3x1 (Triplex) | 185 | 115 | 70.8-75.0 | 4050 | 1060 | 16650 |
| 3x1 (Triplex) | 300 | 115 | 81.5-84.6 | 5300 | 1220 | 27000 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL AREA OF METALLIC SCREEN mm² | NOMINAL OVERALL DIAMETER OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) mm | NOMINAL WEIGHT OF CABLE (OR TRIPLEX GROUP IF APPLICABLE) kg | MINIMUM BENDING RADIUS mm | MAXIMUM PULLING TENSION N |
|---|---|---|---|---|---|---|
| 1 | 300 | 82 | 46.5 | 2060 | 940 | 9000 |
| 1 | 500 | 82 | 53.5 | 2820 | 1100 | 15000 |
| 1 | 630 | 82 | 57.5 | 3610 | 1120 | 18900 |
