SL 800

SL 800 Cable Description

Featuring a rugged polyurethane (PUR) outer jacket, the SL 800 offers resistance to oil, abrasion, and UV radiation. It integrates power, signal, and data lines into a single jacket, ensuring reliable performance in dry, damp, and low-temperature environments. It is commonly used in cable carriers (drag chains), industrial robots, and factory automation systems, serving as a power connection cable as well as a signal and data cable for motor steering and control.

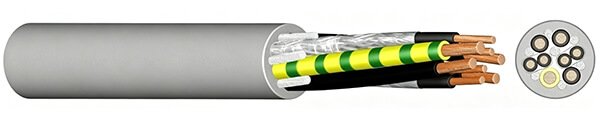

SL 800 Cable Construction

Conductor
Fine-stranded bare copper
Insulation
Thermoplastic polyester elastomer (TPE-E) or polypropylene (PP)
Screen
Pairwise aluminum foil shielding
Outer Sheath
Polyurethane (PUR)

SL 800 Cable Characteristics

Voltage Rating
600/1000 V
Temperature Range
in motion: -30°C to +80°C
Bending Radius (min.)
7.5 x diameter

SL 800 Cable Specifications

Number of cores and nominal cross section (mm²)	Copper figure (kg/km)	Wire diameter (mm)	Overall diameter appr. (mm)	Weight appr. (kg/km)
4 x 0,75 + 2x(2x0,34)	68	0,16	9,7	125
4 x 1,50 + 2x(2x0,75)	126	0,16	11,4	350
4 x 2,50 + 2x(2x0,75)	166	0,16	13,7	244
4 x 4,00 + (2x0,75)+(2x1)	229	0,16	15,6	352
4 x 6,00 + (2x0,75)+(2x1)	312	0,21	18,3	473
4 x 10,00 + (2x0,75)+(2x1)	472	0,21	22,1	685
4 x 16,00 + 2x(2x1)	716	0,21	25,2	993
4 x 25,00 + 2x(2x1,5)	1.076	0,21	30,0	1.74
4 x 35,00 + 2x(2x1,5)	1.500	0,21	32,2	2.41
