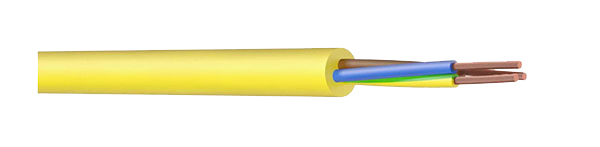

318-A Cable Description
318-A cables are typically 300/500V and remain flexible even in temperatures as low as -40°C. This is due to a special PVC insulation and jacket designed for Arctic conditions, and these cables are often specified for use in cold storage rooms.
318-A Cable Construction
- Conductor
- Class 5 flexible copper conductor
- Insulation
- Arctic grade PVC (Polyvinyl Chloride)
- Sheath
- Arctic grade PVC (Polyvinyl Chloride)
- Core Identification
- 2 core: Blue, Brown
- 3 core: Blue, Brown, Green/Yellow
318-A Cable Characteristics
- Voltage Rating Uo/U
- 300/500V
- Temperature Rating
- Fixed: -40°C to +60°C
- Minimum Bending Radius
- Fixed: 6 x overall diameter
318-A Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 0.75 | 0.6 | 0.8 | 6.2 | 55 |
| 2 | 1 | 0.6 | 0.8 | 6.4 | 61 |
| 2 | 1.5 | 0.7 | 0.8 | 7.4 | 83 |
| 2 | 2.5 | 0.8 | 1 | 9.2 | 130 |
| 2 | 4 | 0.8 | 1.1 | 10.4 | 176 |
| 2 | 6 | 0.8 | 1.2 | 11.3 | 73 |
| 3 | 1 | 0.6 | 0.8 | 6.8 | 105 |
| 3 | 1.5 | 0.7 | 0.9 | 8.1 | 163 |
| 3 | 2.5 | 0.8 | 1.1 | 10 | 224 |
| 3 | 4 | 0.8 | 1.2 | 11.3 | 299 |
| 3 | 6 | 0.8 | 1.2 | 12.7 | 299 |
