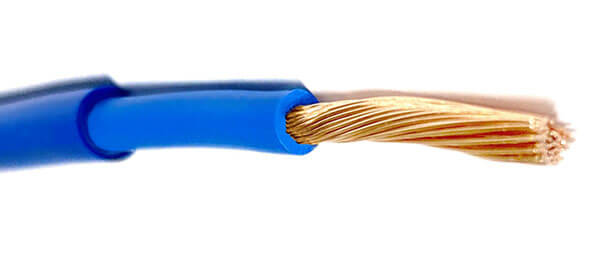

6381Y Cable Description
6381Y cable is designed for DC power supply to telecommunications equipment and other power supply applications requiring flexibility. It complies with the flammability requirements of BT Specification M231 and is therefore suitable for British Telecom (BT) installations. This cable should not be exposed to mechanical damage and can be installed in trays, clamped, or suspended.
6381Y Cable Construction
- Conductor
- Class 5 flexible copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
- Sheath
- PVC (Polyvinyl Chloride)
6381Y Cable Characteristics
- Voltage Rating Uo/U
- 1.5mm2 to 35mm2: 450/750V
- 50mm2 and above: 0.6/1kV
- Temperature Rating
- Flexed: -15°C to +70°C
- Minimum Bending Radius
- Up to 50mm²: 3 x overall diameter
- Above 70mm²: 4 x overall diameter

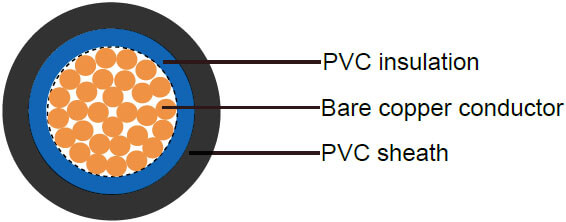

6381Y Cable Diagram
6381Y Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 1.5 | 0.9 | 0.8 | 4.4 | 38 |
| 1 | 2.5 | 0.9 | 0.8 | 5 | 49 |
| 1 | 4 | 1 | 0.9 | 6.1 | 71 |
| 1 | 6 | 1.1 | 0.9 | 6.3 | 101 |
| 1 | 10 | 1.2 | 1.1 | 7.6 | 152 |
| 1 | 16 | 1.2 | 1.1 | 9 | 215 |
| 1 | 25 | 1.4 | 1.1 | 10.9 | 307 |
| 1 | 35 | 1.4 | 1.1 | 11.9 | 405 |
| 1 | 50 | 1.4 | 1.4 | 14.5 | 580 |
| 1 | 70 | 1.4 | 1.4 | 16.4 | 769 |
| 1 | 95 | 1.6 | 1.5 | 18.5 | 1008 |
| 1 | 120 | 1.6 | 1.8 | 20.4 | 1282 |
| 1 | 150 | 1.8 | 1.8 | 22.3 | 1571 |
| 1 | 185 | 2 | 1.8 | 24.5 | 1895 |
| 1 | 240 | 2.2 | 1.8 | 27.7 | 2435 |
| 1 | 300 | 2.4 | 2 | 31.2 | 3050 |
| 1 | 400 | 2.6 | 2.1 | 35.3 | 4035 |
