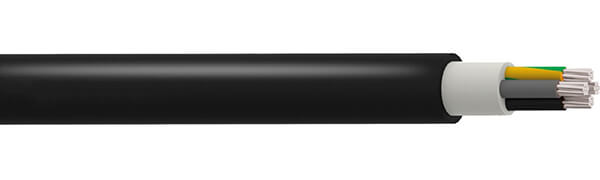

AXMK Cable Description
AXMK cables use Category 1 or Category 2 aluminum conductors, cross-linked polyethylene (XLPE) insulation, and polyvinyl chloride (PVC) insulation; polyethylene (PE) or halogen-free polyolefin outer sheaths are also available. Suitable for air, ground, or conduit installations, but generally not suitable for underground burial unless mechanical protection is provided.
Copper core versions of this cable are also available, with model numbers XMK, XMK-PE, and XMK-Plus.
AXMK Cable Construction
| AXMK Cable | AXMK-PE Cable | AXMK-Plus Cable | |
|---|---|---|---|
| Conductor | RE: Class 1 round solid aluminium RM: Class 2 round stranded aluminium SM: Class 2 sector shaped stranded aluminium | RM : Class 2 round stranded aluminium SM: Class 2 sectorial shaped aluminium | RM: Class 2 round stranded aluminium |
| Insulation | XLPE (Cross-linked Polyethylene) | ||
| Outer Sheath | PVC (Polyvinyl Chloride) | PE (Polyethylene) | Halogen-free Polyolefin - UV resistant |
AXMK Cable Characteristics
| AXMK Cable | AXMK-PE Cable | AXMK-Plus Cable | |
|---|---|---|---|
| Voltage | 0.6/1kV | ||
| Test Voltage | 4kV/50Hz | ||
| Temperature Rating | Minimum Laying temperature: -15ºC Operating temperature: -30ºC to +90ºC Conductor temperature: +90ºC | Laying temperature: -20ºC Maximum Conductor temperature: +90ºC |
|
| Short Circuit Temperature | 250°C | ||
| Minimum Bending Radius | 10 x overall diameter | 12 x overall diameter | |
- AXMK Cable
- AXMK-PE Cable
- AXMK-Plus Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR SHAPE mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | ALUMINIUM WEIGHT kg/km | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 1 | 16 | RE | 0.7 | 9.5 | 46 | 122 |
| 1 | 25 | RE | 0.9 | 11.9 | 73 | 175 |
| 1 | 35 | RM | 0.9 | 13.0 | 102 | 206 |
| 1 | 50 | RM | 1.0 | 14.9 | 145 | 267 |
| 1 | 70 | RM | 1.1 | 17.0 | 203 | 358 |
| 1 | 95 | RM | 1.1 | 18.9 | 276 | 451 |
| 1 | 120 | RM | 1.2 | 20.7 | 348 | 546 |
| 1 | 150 | RM | 1.4 | 22.7 | 435 | 655 |
| 1 | 185 | RM | 1.6 | 25.1 | 537 | 800 |
| 1 | 240 | RM | 1.7 | 27.6 | 696 | 987 |
| 1 | 300 | RM | 1.8 | 31.9 | 870 | 1324 |
| 1 | 400 | RM | 2.0 | 34.9 | 1160 | 1640 |
| 1 | 500 | RM | 2.2 | 39.3 | 1450 | 2030 |
| 1 | 630 | RM | 2.4 | 44.1 | 1827 | 2400 |
| 1 | 800 | RM | 2.6 | 49.0 | 2320 | 2974 |
| 1 | 1000 | RM | 2.8 | 54.0 | 2900 | 3315 |
| 4 | 16 | RE | 0.7 | 18.3 | 185 | 596 |
| 4 | 25 | SM | 0.9 | 21.1 | 290 | 509 |
| 4 | 35 | SM | 0.9 | 23.4 | 406 | 653 |
| 4 | 50 | SM | 1.0 | 26.4 | 580 | 832 |
| 4 | 70 | SM | 1.1 | 30.4 | 812 | 1118 |
| 4 | 95 | SM | 1.1 | 34.1 | 1102 | 1465 |
| 4 | 120 | SM | 1.2 | 38.1 | 1392 | 1837 |
| 4 | 150 | SM | 1.4 | 42.1 | 1740 | 2250 |
| 4 | 185 | SM | 1.6 | 46.6 | 2146 | 2807 |
| 4 | 240 | SM | 1.7 | 52.2 | 2784 | 3603 |
| 4 | 300 | SM | 1.8 | 55.9 | 3480 | 4223 |
| 5 | 10 | RE | 0.7 | 17.8 | 145 | 422 |
| 5 | 16 | RE | 0.7 | 20.0 | 232 | 544 |
| 5 | 25 | SM | 0.9 | 22.9 | 363 | 606 |
| 5 | 35 | SM | 0.9 | 25.7 | 507.8 | 807 |
| 5 | 50 | SM | 1.0 | 30.1 | 725 | 1032 |
| 5 | 70 | SM | 1.1 | 35.1 | 1015 | 1404 |
| 5 | 95 | SM | 1.1 | 38.1 | 1380 | 1800 |
| 5 | 120 | SM | 1.2 | 40.3 | 1740 | 2320 |
| 5 | 150 | SM | 1.4 | 47.4 | 2175 | 2900 |
| 5 | 185 | SM | 1.6 | 52.7 | 2682.5 | 3352.5 |
| 5 | 240 | SM | 1.7 | 59.4 | 3480 | 4350 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR SHAPE mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 4 | 25 | RM | 21.0 | 490 |
| 4 | 35 | RM | 23.8 | 620 |
| 4 | 50 | RM | 28.0 | 710 |
| 4 | 70 | SM | 30.6 | 1100 |
| 4 | 95 | SM | 35.0 | 1331 |
| 4 | 120 | SM | 38.5 | 1800 |
| 4 | 150 | SM | 41.0 | 2049 |
| 4 | 185 | SM | 45.0 | 2530 |
| 4 | 240 | SM | 52.0 | 3258 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL WEIGHT kg/km |
|---|---|---|
| 1 | 300 | 490 |
| 1 | 500 | 620 |
| 1 | 800 | 710 |
