Coaxial Cable

Coaxial Cable Description

The “coax” in coaxial cable refers to the geometric axis shared by the outer shield and inner conductor. The cable consists of a center conductor, a concentric layer of insulating material, a conductive shield, and an outer protective jacket.

Coaxial cables offer excellent transmission and reception capabilities, capable of conducting radio frequency (RF) alternating current. They are a popular choice for cable television, broadband Ethernet, and commercial radio transmission.

Coaxial Cable Construction

	CT Coaxial Cable	RG Coaxial Cable	URM Coaxial Cable	Coaxial BT3002 16 Way / 8 Way Cable	Coaxial RA7000 Equivalent Cable
Conductor	Class 1 Solid Copper	CCS (Copper Clad Steel) TCW (Tinned Copper Wire) CCA (Copper Clad Aluminium) PCW (Copper Wire)	PCW (Plain Copper Wire)	Class 1 Solid Copper	Tinned Copper
Dielectric	FPE (Foam Polyethylene) CPE (Cell Polyethylene)	FPE (Foam Polyethylene) PE (Polyethylene)	PE (Polyethylene)		Foam PE (Polyethylene)
Screen	-	RG6: Aluminium Foil	-		Bonded Al/PET (Aluminium Polyethylene Terephthalate)
Braid	Copper Tape Longitudinally Overlapped	RG6: CCA (Copper Clad Aluminium) RG58: TCWB (Tinned Copper Wire Braid) RG59: CCA (Copper Clad Aluminium)	Copper Braid	Tinned Copper
Braid 2	CCA (Copper Clad Aluminium)	-		Tinned Copper	-
Inner Sheath	-			PVC (Polyvinyl Chloride)	-
Filler	-			PVC (Polyvinyl Chloride)	-
Outer Sheath	PVC (Polyvinyl Chloride) LSZH (Low Smoke Zero Halogen) PE (Polyethylene) PP (Polypropylene)	PVC (Polyvinyl Chloride) LSZH (Low Smoke Zero Halogen)	PVC (Polyvinyl Chloride)	PVC-FR (Polyvinyl Chloride Flame Retardant)	LSZH (Low Smoke Zero Halogen)

Coaxial Cable Characteristics

	CT Coaxial Cable	RG Coaxial Cable	URM Coaxial Cable	Coaxial BT3002 16 Way / 8 Way Cable	Coaxial RA7000 Equivalent Cable
Voltage Rating	30V			300V	30V
Temperature Rating	+70ºC Shotgun and RBS types: +60ºC CT167 FPE PE: +80ºC	-20°C to +75ºC		Fixed: +80ºC	+70ºC

Coaxial Cable Types

CT Coaxial Cable:

A low-loss coaxial cable, including CT100, CT125, CT167, and other series. Designed for high-frequency signal transmission, especially suitable for digital and satellite TV and closed-circuit television systems.

RG Coaxial Cable:

The number following “RG” refers to the cable’s specifications, such as diameter, dielectric insulation, and shielding. Different RG numbers represent different specifications for different applications. For example, RG-6 is commonly used for home cable TV and internet due to its high-frequency performance; RG-59 is suitable for short-distance, low-frequency transmission; and RG-11 is well-suited for long-distance installations.

It’s suitable for a variety of applications, including low-power video, video signals, and broadband signals. Wire options include plain copper, tinned copper, copper-clad steel, or copper-clad aluminum. Available jackets include pipe-grade PE, PVC, or LSZH.

URM Coaxial Cable:

UniRadio Metric Coaxial Cable, suitable for a variety of applications, including low-power video, video signals, and broadband signals. PVC jacket, copper braid, PE insulation. Bare copper wire.

BT3002 16 Way / 8 Way and RA7000 Equivalent:

All manufactured to British Telecom (BT) specifications.

CT Coaxial Cable

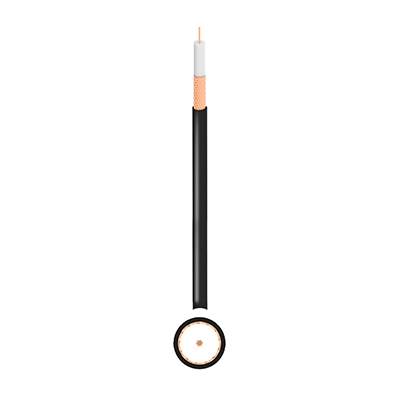

RG Coaxial Cable
URM Coaxial Cable
Coaxial BT3002 16 Way / 8 Way Cable
Coaxial RA7000 Equivalent Cable

COAXIAL CABLE	NO. OF STRANDS	NOMINAL DIAMETER OF STRANDS mm	NOMINAL DIAMETER OVER INSULATION mm	NOMINAL OVERALL DIAMETER mm
CT100 FPE PVC	1	1	4.6	6.6
CT100 FPE LSZH	1	1	4.6	6.6
CT100 CPE PVC	1	1	4.8	6.8
CT100 FPE PE	1	1	4.6	6.6
CT100 FPE SHOTGUN	1 (2)	1	4.6	6.8 x 13.8
CT125 FPE PVC	1	1.25	5.6	7.8
CT125 CPE PVC	1	1.25	5.5	7.8
CT125 FPE RBS	1	1.25	5.5	9.6
CT167 FPE LSZH	1	1.67	7.24	10.2
CT167 FPE PE	1	1.65	7.28	10.1
CT233 FPE LSZH	1	2.33	10.06	13

COAXIAL CABLE	NO. OF STRANDS	NOMINAL DIAMETER OF STRANDS mm	NOMINAL OVERALL DIAMETER OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
RG6	1	1.02	4.6	6.6	37
RG11	7	0.4	7.24	10.1	152
RG59	1	0.58	3.7	6.15	52
RG59 SHOTGUN LSZH CCA	1 (2)	0.58	3.7	6.1 x 12.4	91
RG179	1	0.36	1.65	3.05	15
RG213 PVC	7	0.75	7.24	10.3	57
RG213 LSZH	7	0.75	7.25	10.3	57
RG58PVC	19	0.18	2.95	4.95	-

COAXIAL CABLE	NO. OF STRANDS	NOMINAL DIAMETER OF STRANDS mm	NOMINAL OVERALL DIAMETER OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
URM67	7	0.75	7.25	10.30	57
URM70	7	0.19	3.20	5.80	46

COAXIAL CABLE	NO. OF CORES	CONDUCTOR SIZE mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm
8 Way	8	0.31	1.95	14.6
16 Way	16	0.31	1.95	20.5

NO. OF CORES	CONDUCTOR SIZE mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	1/0.61	2.8	4.5	29
