EXVB and EAXVB Cable Description
Both EXVB and EAXVB cables have a PVC sheath and an internal XLPE insulation layer, allowing for a maximum conductor operating temperature of +90°C. They are suitable for various indoor and outdoor installation environments and can be buried underground, in cable conduits, within cable ducts, on grounded floors with protective layers, or laid in the open.
EXVB and EAXVB Cable Construction
| EXVB Cable | EAXVB Cable | |
|---|---|---|
| Conductor | Class 1 solid or Class 2 stranded Copper | Class 1 solid or Class 2 stranded Aluminium |
| Insulation | XLPE (Cross-linked Polyethylene) | |
| Inner Sheath | PVC (Polyvinyl Chloride) | |
| Outer Sheath | PVC (Polyvinyl Chloride) | |
EXVB and EAXVB Cable Characteristics
| EXVB Cable | EAXVB Cable | |
|---|---|---|
| Voltage Rating | 0.6/1kV | |
| Temperature Rating | Fixed: 0°C to +90ºC Minimum Installation: +5ºC | Operating: 0ºC to +90ºC Minimum Installation: 0ºC |
| Minimum Bending Radius | 12 x overall diameter | 20 x overall diameter |

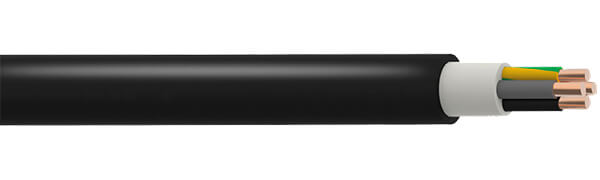

- EXVB Cable
- EAXVB Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | MINMUM THICKNESS OF OUTER SHEATH mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 240 | 1.7 | 2.3 | 27.5 | 2520 |
| 2 | 2.5 | 0.7 | 2 | 12.8 | 240 |
| 2 | 6 | 0.7 | 2 | 14.8 | 360 |
| 2 | 10 | 0.7 | 2 | 16.4 | 480 |
| 2 | 16 | 0.7 | 2 | 20 | 723 |
| 3 | 1.5 | 0.7 | 2 | 12.5 | 225 |
| 3 | 2.5 | 0.7 | 2 | 13.3 | 270 |
| 3 | 4 | 0.7 | 2 | 14.4 | 340 |
| 3 | 6 | 0.7 | 2 | 15.4 | 420 |
| 3 | 10 | 0.7 | 2 | 17.2 | 575 |
| 3 | 16 | 0.7 | 2 | 21.5 | 875 |
| 3 | 95 | 0.7 | 2 | 34.7 | 3330 |
| 4 | 2.5 | 0.7 | 2 | 14.1 | 310 |
| 4 | 4 | 0.7 | 2 | 15.3 | 395 |
| 4 | 6 | 0.7 | 2.1 | 16.5 | 495 |
| 4 | 10 | 0.7 | 2 | 18.7 | 700 |
| 4 | 16 | 0.7 | 2.1 | 23 | 1070 |
| 4 | 25 | 0.9 | 2.3 | 27.1 | 1536 |
| 4 | 35 | 0.9 | 2.3 | 30 | 1975 |
| 4 | 50 | 0.9 | 2.5 | 33.6 | 2600 |
| 4 | 70 | 1.1 | 2.6 | 36 | 3260 |
| 4 | 95 | 1.1 | 2.7 | 39.5 | 4350 |
| 4 | 120 | 1.2 | 2.9 | 44 | 5540 |
| 4 | 150 | 1.4 | 2.9 | 46.4 | 6020 |
| 4 | 185 | 1.6 | 3.2 | 53.6 | 8250 |
| 4 | 240 | 1.7 | 3.4 | 60 | 10870 |
| 5 | 1.5 | 0.7 | 2 | 14 | 282 |
| 5 | 2.5 | 0.7 | 2 | 15 | 350 |
| 5 | 4 | 0.7 | 2 | 16.3 | 453 |
| 5 | 6 | 0.7 | 2 | 17.7 | 575 |
| 5 | 10 | 0.7 | 2.1 | 20 | 817 |
| 5 | 16 | 0.7 | 2.2 | 25 | 1285 |
| 5 | 25 | 0.7 | 2.2 | 29.3 | 1840 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OUTER DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 4 | 95 | 1.1 | 2.7 | 34 | 1802 |
| 4 | 150 | 1.4 | 3 | 42.14 | 2764 |
