FROH2R Cable

FROH2R Cable Description

FROH2R cables feature flexible copper conductors, PVC insulation and an outer sheath, and a copper braided shield with electromagnetic interference (EMI) protection. They can be used in dry or humid indoor environments and for temporary outdoor use, but must not be directly buried underground without protection. They are commonly used in automation and industrial applications.

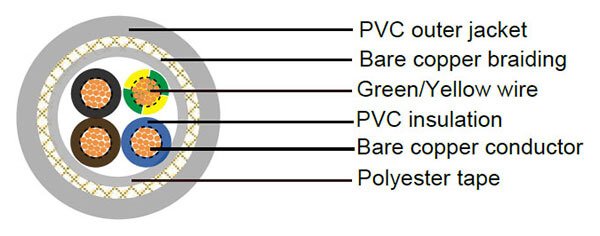

FROH2R Cable Construction

Conductor
Class 5 stranded plain copper wires
Insulation
PVC compound, TI2 type
Seperator
Polyester tape
Screen
Bare copper wire braiding
Outer Sheath
PVC compound, TM2 type

FROH2R Cable Characteristics

Voltage Rating
300/500 V
450/750 V
Operating Temperature
In Flexing Use: -5°C to +70°C
In Fixed Use: -30°C to +70°C
Conductor Short-Circuit Temp
160°C (Max. 5 sec)

FROH2R Cable Specifications

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius (fixed installation) (mm)	Max. Resistance of Conductors at 20℃ (ohm / km)
300 / 500 V
2x1	8,10	130	24	19,50
2x1,5	8,60	150	26	13,30
2x2,5	10,20	215	31	7,98
2x4	11,20	275	34	4,95
2x6	12,50	350	50	3,30
3x1	8,60	156	26	19,50
3x1,5	9,00	180	27	13,30
3x2,5	10,80	261	32	7,98
3x4	12,10	345	48	4,95
3x6	13,70	465	55	3,30
4x1	9,30	190	28	19,50
4x1,5	10,00	225	30	13,30
4x2,5	11,70	320	35	7,98
4x4	13,20	430	53	4,95
4x6	14,90	575	60	3,30
5x1	10,30	230	31	19,50
5x1,5	11,00	270	33	13,30
5x2,5	13,00	385	52	7,98
5x4	15,00	536	60	4,95
5x6	16,50	680	66	3,30
450 / 750 V
7x1	10,20	250	31	19,50
7x1,5	11,90	340	36	13,30
7x2,5	14,40	516	58	7,98
10x1	13,30	400	53	19,50
10x1,5	15,20	530	61	13,30
10x2,5	18,10	770	72	7,98
12x1	13,70	445	55	19,50
12x1,5	15,80	595	63	13,30
12x2,5	18,90	870	76	7,98
16x1	15,30	560	61	19,50
16x1,5	17,60	750	70	13,30
16x2,5	21,00	1095	84	7,98
19x1	16,20	640	65	19,50
19x1,5	18,50	855	74	13,30
19x2,5	22,10	1256	88	7,98
24x1	18,90	840	76	19,50
24x1,5	21,80	1125	87	13,30
24x2,5	26,20	1691	105	7,98
