FROR Cable

FROR Cable Description

FROR cables use Class 5 stranded bare copper wire, PVC insulation and an outer sheath, offering good mechanical strength and oil resistance. They can be used in dry, humid, and damp indoor environments, as well as temporary outdoor environments.

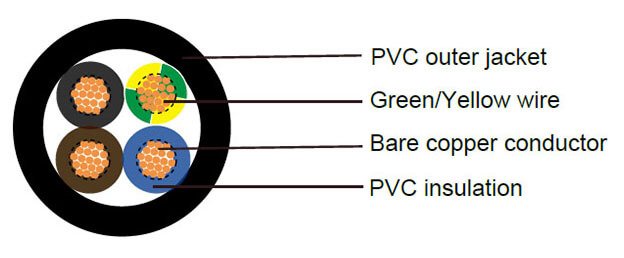

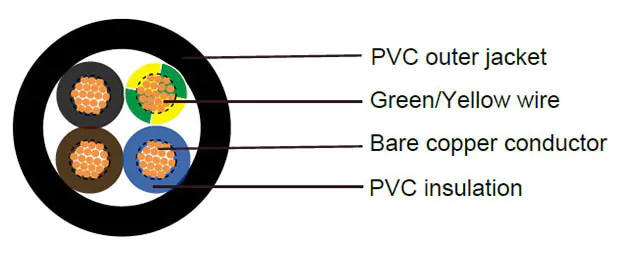

FROR Cable Construction

Conductor
Class 5 stranded plain copper wires
Insulation
PVC compound, TI2 type
Outer Sheath
PVC compound, TM2 type

FROR Cable Characteristics

Voltage Rating
300/500 V
450/750 V
Operating Temperature
In Flexing Use: -5°C to +70°C
In Fixed Use: -30°C to +70°C
Conductor Short-Circuit Temp
160°C (Max. 5 sec)

FROR Cable Specifications

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius (fixed installation) (mm)	Max. Resistance of Conductors at 20℃ (ohm / km)
300 / 500 V
2x1	7,40	80	22	19,50
2x1,5	7,90	95	24	13,30
2x2,5	9,50	140	29	7,98
2x4	10,50	185	32	4,95
2x6	11,80	245	35	3,30
3x1	7,90	95	24	19,50
3x1,5	8,30	111	25	13,30
3x2,5	10,10	170	30	7,98
3x4	11,40	235	34	4,95
3x6	12,80	310	51	3,30
4x1	8,60	115	26	19,50
4x1,5	9,30	141	28	13,30
4x2,5	11,00	210	33	7,98
4x4	12,50	290	50	4,95
4x6	14,00	390	56	3,30
5x1	9,60	142	29	19,50
5x1,5	10,30	175	31	13,30
5x2,5	12,30	260	49	7,98
5x4	14,10	370	56	4,95
5x6	15,60	481	62	3,30
450 / 750 V
7x1	9,50	152	29	19,50
7x1,5	11,20	205	34	13,30
10x1	12,40	250	50	19,50
10x1,5	14,30	321	57	13,30
12x1	12,80	275	51	19,50
12x1,5	14,90	356	60	13,30
16x1	14,40	355	58	19,50
16x1,5	16,70	452	67	13,30
19x1	15,30	405	61	19,50
19x1,5	17,80	520	71	13,30
24x1	18,00	550	72	19,50
24x1,5	20,90	700	84	13,30
27x1	18,60	595	74	19,50
27x1,5	21,50	751	86	13,30
