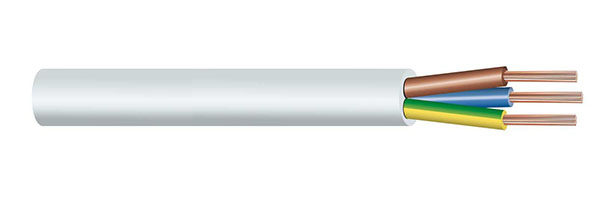

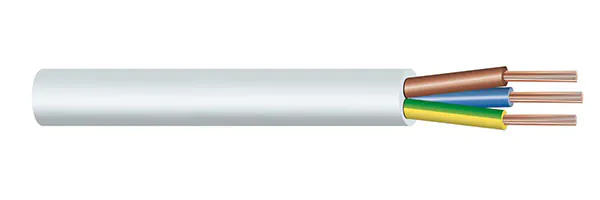

H03VV-F Cable Description
H03VV-F cable typically consists of a finely stranded copper conductor, PVC insulation, and a PVC outer jacket. It is typically available in black, white, or gray and has an operating temperature range of 5 °C to 70 °C.
H03VV-F cable is commonly used with appliances such as kitchen appliances, table and floor lamps, vacuum cleaners, office machines, and radios. However, it is not recommended for use with high-temperature cooking or heating equipment or for outdoor use.
H03VV-F Cable Construction
- CONDUCTOR
- Class 5 Flexible Stranded Copper
- INSULATION
- PVC (Polyvinyl Chloride)
- OUTER SHEATH
- PVC (Polyvinyl Chloride)
H03VV-F Cable Characteristics
- Voltage Rating Uo/U
- 300/300V
- Temperature Rating
- Flexed: +5°C to +70°C
- Minimum Bending Radius
- Flexed: 6 x overall diameter
H03VV-F Cable Code
- H – cable according to harmonized standard (HAR)
- 03 – nominal voltage 300/300V
- V – core insulation made from PVC
- V – Sheath made from PVC
- F – fine-stranded conductor class 5

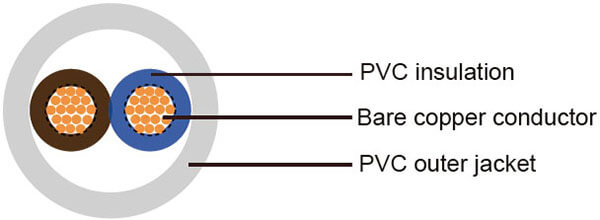

H03VV-F Cable Diagram
H03VV-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 0.5 | 0.5 | 0.6 | 5 | 37 |
| 2 | 0.75 | 0.5 | 0.6 | 5.5 | 46 |
| 3 | 0.5 | 0.5 | 0.6 | 5.3 | 44 |
| 3 | 0.75 | 0.5 | 0.6 | 5.8 | 55 |
| 4 | 0.5 | 0.5 | 0.6 | 5.8 | 54 |
