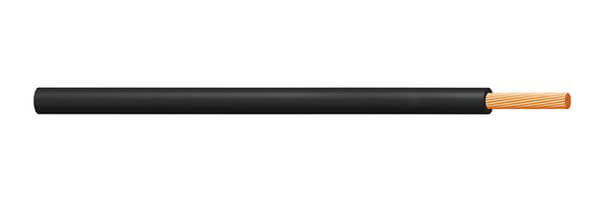

H05V-K / H07V-K Cable Description
H05V-K cable has a maximum cross-section of 1 mm² and a rated voltage of 300/500V, while the H07V-K cable has a cross-section of 1.5 mm² or above and a rated voltage of 450/750V.
These cables are designed for internal wiring in switch controls, relays, and instrument panels for power switchgear, as well as internal connectors in rectifiers, motor starters, and controllers. They are suitable for installation inside pipes, under plaster, on surfaces, and in enclosed utility ducts.
H05V-K / H07V-K Cable Construction
- Conductor
- Class 5 flexible copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
H05V-K / H07V-K Cable Characteristics
- Voltage Rating Uo/U
- H05V-K: 300/500V
- H07V-K: 450/750V
- Temperature Rating
- Fixed: -30°C to +70°C
- Flexed: -5°C to +70°C
- Minimum Bending Radius
- Fixed: 6 x overall diameter

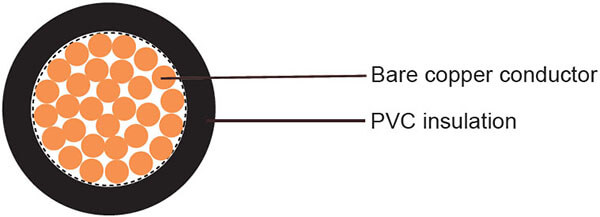

H05V-K / H07V-K Cable Diagram
H05V-K / H07V-K Cable Specifications
| NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|
| H05V-K | ||
| 0.5 | 2.2 | 9.1 |
| 0.75 | 2.4 | 11.7 |
| 1 | 2.55 | 14.4 |
| H07V-K | ||
| 1.5 | 3 | 20.1 |
| 2.5 | 3.65 | 31.5 |
| 4 | 4.2 | 46.2 |
| 6 | 4.8 | 65.1 |
| 10 | 6.25 | 109.4 |
| 16 | 7.4 | 165.2 |
| 25 | 9.4 | 253.4 |
| 35 | 10.4 | 345.5 |
| 50 | 12.55 | 492.4 |
| 70 | 14.1 | 669.3 |
| 95 | 17.2 | 910.4 |
| 120 | 17.7 | 1129.4 |
| 150 | 19.6 | 1401 |
| 185 | 23 | 1741 |
| 240 | 26.4 | 2267.5 |
