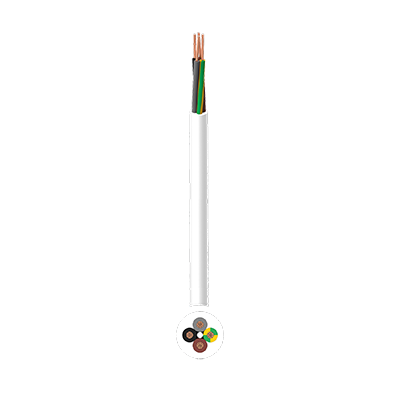

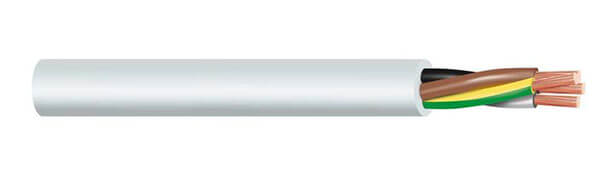

H05V2V2-F Cable Description
H05V2V2-F cable is rated for 300/500V and can withstand light mechanical stress, making it suitable for indoor power lines in small household appliances. With a bending temperature rating of 0°C to +90°C, it is suitable for use in kitchens, heating equipment, and high-temperature areas such as lighting systems, where contact with hot components and radiation is not required.
H05V2V2-F Cable Construction
- CONDUCTOR
- Class 5 Flexible Stranded Copper
- INSULATION
- PVC (Polyvinyl Chloride)
- OUTER SHEATH
- PVC (Polyvinyl Chloride)
H05V2V2-F Cable Characteristics
- Voltage Rating Uo/U
- 300/500V
- Temperature Rating
- Fixed: 0°C to +90°C
- Minimum Bending Radius
- Fixed: 6 x overall diameter
- Flexed: 10 x overall diameter

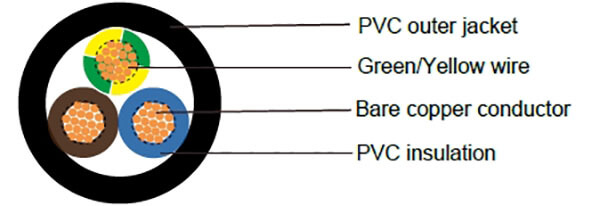

H05V2V2-F Cable Diagram
H05V2V2-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 0.75 | 0.6 | 0.8 | 6.3 | 63 |
| 3 | 0.75 | 0.6 | 0.8 | 6.7 | 74 |
| 3 | 1 | 0.6 | 0.8 | 7 | 86 |
| 3 | 1.5 | 0.7 | 0.9 | 8.1 | 115 |
| 3 | 2.5 | 0.8 | 1 | 9.7 | 170 |
| 4 | 0.75 | 0.6 | 0.8 | 7.3 | 78 |
| 4 | 1 | 0.6 | 0.9 | 7.9 | 110 |
| 4 | 1.5 | 0.7 | 1 | 9 | 140 |
| 4 | 2.5 | 0.8 | 1.1 | 10.8 | 210 |
| 5 | 0.75 | 0.6 | 0.9 | 8.1 | 105 |
