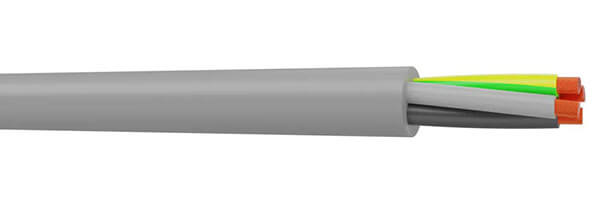

H05VV-F Cable Description
Manufactured by European electrical installation standards, the H05VV-F cable is suitable for common portable appliances that are subject to moderate mechanical strain, such as radios, lamps, and office equipment. The “H” designation indicates harmonization, meaning it complies with European standards. The “05” designates a rated voltage of 300/500V. The “V” designates the PVC insulation and jacket, and the “F” designates the flexible, finely stranded copper conductors.
H05VV-F Cable Construction
- Conductor
- Class 5 flexible copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
- Sheath
- PVC (Polyvinyl Chloride)
H05VV-F Cable Characteristics
- Voltage Rating Uo/U
- 300/500V
- Temperature Rating
- Flexed: +5°C to +70°C
- Minimum Bending Radius
- Flexed: 8 x overall diameter

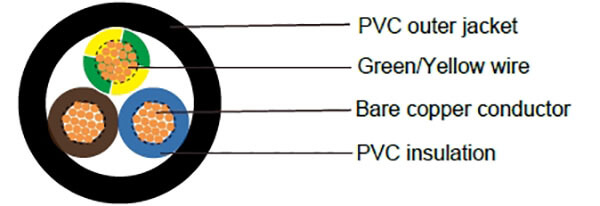

H05VV-F Cable Diagram
H05VV-F Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 2 | 0.75 | 0.6 | 6.3 | 57 |
| 2 | 1 | 0.6 | 6.6 | 65 |
| 2 | 1.5 | 0.7 | 7.4 | 84 |
| 2 | 2.5 | 0.8 | 9.1 | 130 |
| 3 | 0.75 | 0.6 | 6.7 | 68 |
| 3 | 1 | 0.6 | 7 | 78 |
| 3 | 1.5 | 0.7 | 8.1 | 108 |
| 3 | 2.5 | 0.8 | 9.9 | 163 |
| 3 | 4 | 0.8 | 11.3 | 227 |
| 4 | 0.75 | 0.6 | 7.3 | 82 |
| 4 | 1 | 0.6 | 7.9 | 100 |
| 4 | 1.5 | 0.7 | 9 | 134 |
| 4 | 2.5 | 0.8 | 10.8 | 201 |
| 5 | 0.75 | 0.6 | 8.1 | 102 |
| 5 | 1 | 0.6 | 8.6 | 120 |
| 5 | 1.5 | 0.7 | 10 | 166 |
