H07V-R and H07V-U Cable Description
H07V-R and H07V-U cables are commonly used for wiring appliances and equipment, as well as for enclosed ductwork and conduit installation (surface or embedded). They are also commonly referred to as single-strand cables, conduit wires, ground cables, or ground wires.
H07V-R cables use Class 2 stranded copper conductors, while H07V-U cables use Class 1 solid copper conductors. They have an operating temperature range of -15°C to +70°C.

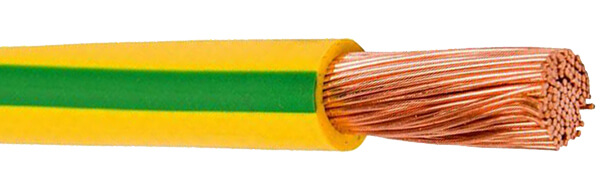

H07V-R and H07V-U Cable Construction
- Conductor
- H07V-R: Class 2 Stranded Copper
- H07V-U: Class 1 Solid Copper
- Insulation
- PVC (Polyvinyl Chloride)
H07V-R and H07V-U Cable Characteristics
- Voltage Rating Uo/U
- 450/750V
- Temperature Rating
- -15°C to +70°C
- Minimum Bending Radius
- Up to 10mm²: 3 x overall diameter
- 10mm² to 25mm²: 4 x overall diameter
- Above 25mm²: 5 x overall diameter
H07V-R and H07V-U Cable Specifications
| NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1.5 | 0.7 | 2.9 | 22 |
| 2.5 | 0.8 | 3.6 | 32 |
| 4 | 0.8 | 4.1 | 50 |
| 6 | 0.8 | 4.7 | 71 |
| 10 | 1 | 5.9 | 110 |
| 16 | 1 | 6.8 | 164 |
| 25 | 1.2 | 8.4 | 256 |
| 35 | 1.2 | 9.4 | 346 |
| 50 | 1.4 | 11 | 473 |
| 70 | 1.4 | 12.7 | 674 |
| 95 | 1.6 | 14.7 | 913 |
| 120 | 1.6 | 16.2 | 1150 |
| 150 | 1.8 | 18 | 1416 |
| 185 | 2 | 20 | 1749 |
| 240 | 2.2 | 23 | 2317 |
| 300 | 2.4 | 25.2 | 3049 |
| 400 | 2.6 | 28.4 | 3657 |
| 500 | 2.8 | 31.8 | 4700 |
| 630 | 2.8 | 38.1 | 5890 |
