Hook-Up Wire

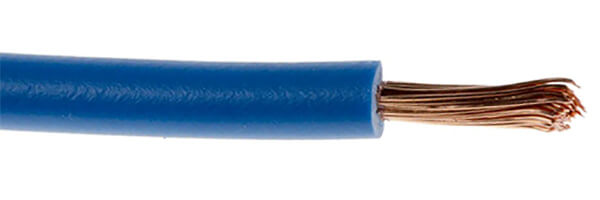

Hook up wires, also known as lead wires, are single-core insulated cables used for internal connections in electronic equipment and control panels.

Hook-Up Wire Description

Hook-up wires have a copper or aluminum core (solid or stranded) covered with a protective insulation layer made of materials such as PVC, Teflon, silicone, or neoprene, which provides electrical isolation and resistance to heat, chemicals, and abrasion.

Hook-Up Wire Construction

	UL3271 Hook-Up Wire 600V	Hook Up Wire 300V Cable	Hook Up Wire 600V Cable
Conductor	Class 5 flexible stranded Copper	Class 1 Solid or Class 2 Stranded, Tinned or Bare Copper
Insulation	XLPE (Cross-linked Polyethylene)	PVC (Polyvinyl Chloride)

Hook-Up Wire Characteristics

	UL3271 Hook-Up Wire 600V	Hook Up Wire 300V Cable	Hook Up Wire 600V Cable
Voltage Rating	600V	300V	600V
Temperature Rating	+125°C	+80°C	+105°C
Minimum Bending Radius	8 x overall diameter	-

Hook-Up Wire Applications

Electronic Equipment: Inside computers, appliances, and control panels.
Automotive: For internal wiring in vehicles.
Instrumentation: Used in meters and switchboards.
Appliance Wiring: Within household ovens and other appliances.
Circuit Boards: For connecting components on a circuit board.

UL3271 Hook-Up Wire 600V

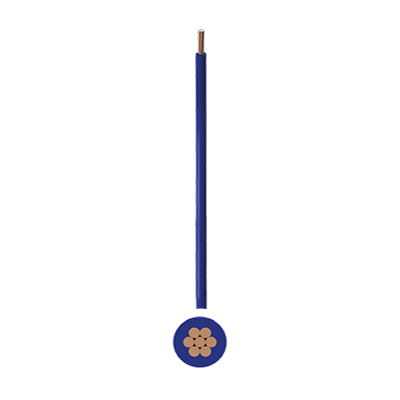

Hook Up Wire 300V Cable

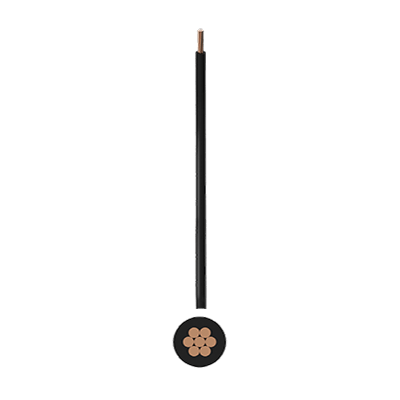

Hook Up Wire 600V Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	CONDUCTOR NO. OF WIRES	APPROXIMATE AWG	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm
1	0.5	16	21	0.78	2.39
1	0.75	26	19	0.78	2.61
1	1	32	18	0.78	2.73
1	1.5	30	16	0.78	3.03
1	2.5	48	14	0.78	3.43
1	4	54	12	0.78	3.94
1	6	84	10	0.78	4.53
1	10	134	8	1.16	6.07
1	16	114	6	1.16	7.04
1	25	184	4	1.16	8.32
1	35	288	2	1.16	9.82
1	50	370	1	1.41	11.33
1	70	372	2/0	1.41	13.45
1	95	470	3/0	1.41	14.77
1	120	592	4/0	1.41	16.23

AWG SIZE	CONDUCTOR STRANDING	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL DIAMETER OF INSULATION mm
18	7/0.404	1.21	0.41	2.03
20	7/0.321	0.96	0.41	1.78
22	7/0.254	0.76	0.41	1.58
24	7/0.203	0.61	0.41	1.43

AWG SIZE	CONDUCTOR STRANDING	NOMINAL DIAMETER OF CONDUCTOR mm	NOMINAL THICKNESS OF INSULATION mm	NOMINAL DIAMETER OF INSULATION mm
Stranded Conductor
30	7/0.1	0.3	0.79	1.88±0.1
28	7/0.127	0.38	0.79	1.96±0.1
26	7/0.16	0.48	0.79	2.06±0.1
24	11/0.16	0.61	0.79	2.19±0.1
22	17/0.16	0.76	0.79	2.34±0.1
20	26/0.16	0.94	0.79	2.52±0.1
18	41/0.16	1.18	0.79	2.76±0.1
16	26/0.254	1.49	0.79	3.07±0.1
14	41/0.254	1.88	0.79	3.46±0.1
12	65/0.254	2.37	0.79	3.95±0.1
10	105/0.254	3.4	0.79	4.98±0.1
10	49/0.37	3.38	0.79	4.96±0.1
8	168/0.254	4.3	1.15	6.6±0.2
6	266/0.254	5.46	1.52	8.5±0.2
Solid Conductor
28	1/0.32	0.32	0.79	1.9±0.1
26	1/0.404	0.404	0.79	1.98±0.1
24	1/0.511	0.511	0.79	2.09±0.1
22	1/0.813	0.643	0.79	2.22±0.1
20	1/1.29	0.813	0.79	2.39±0.1
18	1/1.024	1.024	0.79	2.6±0.1
16	1/1.29	1.29	0.79	2.87±0.1
