LifY Cable Description
LifY cables use Category 6 ultra-fine flexible stranded conductors with an outer flame-retardant PVC insulation layer. They conform to German standard VDE0250. For easy identification, the cable is available in a variety of insulation colors, including a transparent sheath. It performs well at low temperatures, but has a narrow operating temperature range of only -15°C to +80°C.

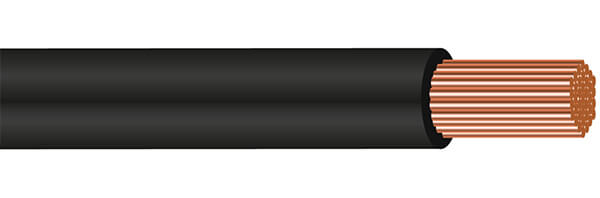

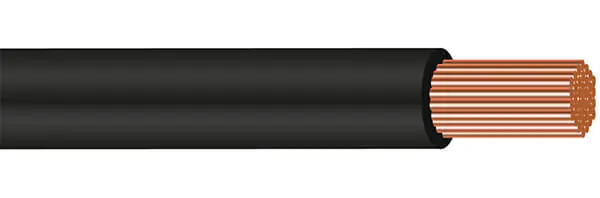

LifY Cable Construction
- Conductor
- Class 6 extra fine stranded flexible Copper
- Insulation
- PVC (Polyvinyl Chloride)
LifY Cable Characteristics
- Voltage Rating (Uo/U)
- 0.5mm² – 1mm²: 300/500V
- From 1.5mm²: 450/750V
- Temperature Rating
- Flexing: -15°C to +80°C
- Minimum Bending Radius
- Flexing: 8 x overall diameter
LifY Cable Colour Codes
| Colour | Product Code | Colour | Product Code |
|---|---|---|---|
| Black | BK | Green | GN |
| Grey | GR | Dark Blue | DKBL |
| Blue | BL | Green/Yellow | GY |
| Orange | OR | Red | RD |
| Pink | PK | Yellow | YW |
| Violet | VI | Brown | BR |
| White | WH | Transparent | TR |
| Beige | BE | - | - |
LifY Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | APPROXIMATE AWG | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 0.1 | - | 1 | 2.1 |
| 1 | 0.14 | 26 | 1 | 2.6 |
| 1 | 0.25 | 24 | 1.3 | 4.2 |
| 1 | 0.5 | 20 | 2 | 8 |
| 1 | 0.75 | 18 | 2.2 | 12 |
| 1 | 1 | 17 | 2.5 | 18 |
| 1 | 1.5 | 16 | 3.5 | 22 |
| 1 | 2.5 | 14 | 3.8 | 37 |
| 1 | 4 | 12 | 4.9 | 50 |
| 1 | 6 | 10 | 6 | 71 |
| 1 | 10 | 8 | 7.3 | 130 |
| 1 | 16 | 6 | 8.8 | 187 |
| 1 | 25 | 4 | 10.5 | 294 |
| 1 | 35 | 2 | 11.7 | 380 |
| 1 | 50 | 1 | 14.7 | 521 |
| 1 | 70 | 2/0 | 15.5 | 740 |
