N1VC7V-K Cable Description
N1VC7V-K cable features copper tape shielding, providing electromagnetic compatibility protection. With PVC insulation and sheathing, it is suitable for indoor damp environments, outdoor installation, and can be fixed to exposed walls or steel structures, inside conduits, or underground. It can also be used for control and signaling applications.

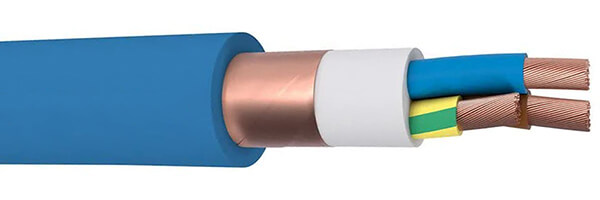

N1VC7V-K Cable Construction
- Conductor
- Class 5 flexible copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
- Bedding
- PVC (Polyvinyl Chloride)
- Screen
- Copper Tape
- Sheath
- PVC (Polyvinyl Chloride)
N1VC7V-K Cable Characteristics
- Voltage Rating
- 0.6/1kV
- Temperature Rating
- Operating: -15°C to +70°C
- Maximum temperature of short circuit: +160°C
- Minimum Bending Radius
- UNEL 35756: 4 x overall diameter
- UNEL 35755: 6 x overall diameter
- Maximum Tensile Strength
- 50N/mm²
N1VC7V-K Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 | 1.5 | 13,2 | 240 |
| 2 | 2.5 | 14,2 | 280 |
| 2 | 4 | 16,3 | 380 |
| 2 | 6 | 17,8 | 480 |
| 2 | 10 | 19,7 | 640 |
| 2 | 16 | 21,8 | 810 |
| 2 | 25 | 25,4 | 1130 |
| 2 | 35 | 28,1 | 1430 |
| 2 | 50 | 32,4 | 1980 |
| 2 | 70 | 36,0 | 2660 |
| 2 | 95 | 42,0 | 3350 |
| 3 | 1.5 | 13,8 | 260 |
| 3 | 2.5 | 14,8 | 320 |
| 3 | 4 | 17,4 | 430 |
| 3 | 6 | 18,7 | 550 |
| 3 | 10 | 20,8 | 740 |
| 3 | 16 | 23,1 | 970 |
| 3 | 25 | 27,0 | 1340 |
| 3 | 35 | 30,1 | 1750 |
| 3 | 50 | 34,5 | 2400 |
| 3 | 70 | 38,6 | 3270 |
| 3 | 95 | 44,2 | 4170 |
| 3 | 120 | 53,0 | 4670 |
| 3 | 185 | 60,0 | 5700 |
| 3 | 240 | 69,0 | 6300 |
| 3+1 | 35+25 | 32,1 | 2000 |
| 3+1 | 50+25 | 36,1 | 2620 |
| 3+1 | 70+35 | 40,1 | 3560 |
| 3+1 | 95+50 | 46,4 | 4600 |
| 4 | 1.5 | 14,7 | 300 |
| 4 | 2.5 | 15,9 | 370 |
| 4 | 4 | 18,7 | 530 |
| 4 | 6 | 20,2 | 650 |
| 4 | 10 | 22,5 | 910 |
| 4 | 16 | 25,1 | 990 |
| 4 | 25 | 29,7 | 1350 |
| 5 | 1.5 | 15,7 | 350 |
| 5 | 2.5 | 17,0 | 410 |
| 5 | 4 | 20,2 | 590 |
| 5 | 6 | 21,8 | 740 |
| 5 | 10 | 24,4 | 1060 |
| 5 | 16 | 27,3 | 1390 |
| 5 | 25 | 32,4 | 2030 |
| 7 | 1.5 | 16,8 | 400 |
| 7 | 2.5 | 18,5 | 530 |
| 10 | 1.5 | 20,6 | 530 |
| 10 | 2.5 | 22,6 | 670 |
| 12 | 1.5 | 21,2 | 590 |
| 12 | 2.5 | 23,2 | 760 |
| 16 | 2.5 | 25,4 | 950 |
| 19 | 1.5 | 23,1 | 820 |
| 27 | 1.5 | 27,1 | 1070 |
| 37 | 1.5 | 31,0 | 1360 |
