N1XV-R Cable Description

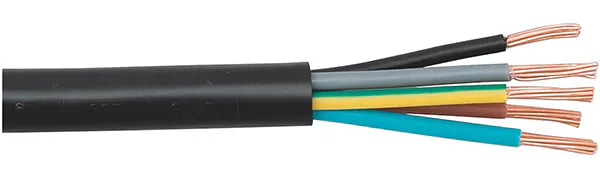

N1XV-R cable features a copper conductor, XLPE insulation, and a UV-resistant PVC sheath. Common applications include local mains power connections, switchgear, and industrial plant power supply. It is suitable for installation in cable conduits, trunking, or direct burial underground and underwater.
N1XV-R Cable Construction
- Conductor
- RE: Class 1 round solid copper
- RM: Class 2 round stranded copper
- SM: Class 2 sector shaped stranded copper
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Outer Sheath
- PVC (Polyvinyl chloride)
N1XV-R Cable Characteristics
- Voltage Rating
- 0.6/1kV
- Temperature Rating
- Minimum laying temperature: -5ºC
- Operating temperature: -30ºC to +90ºC
- Maximum Conductor temperature: +90ºC
- Minimum Bending Radius
- Single core: 15 x overall diameter
- Multi core: 12 x overall diameter
N1XV-R Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 10 | RE | 8.9 | 190 |
| 1 | 16 | RE | 10.0 | 230 |
| 1 | 25 | RM | 12.1 | 350 |
| 1 | 35 | RM | 13.1 | 445 |
| 1 | 50 | RM | 14.6 | 575 |
| 1 | 70 | RM | 16.5 | 780 |
| 1 | 95 | RM | 18.2 | 1030 |
| 1 | 120 | RM | 19.9 | 1280 |
| 1 | 150 | RM | 22.1 | 1560 |
| 1 | 185 | RM | 24.2 | 1920 |
| 1 | 240 | RM | 26.9 | 2500 |
| 1 | 300 | RM | 29.4 | 3100 |
| 4 | 16 | RM | 22.0 | 1065 |
| 4 | 25 | RM | 26.7 | 1580 |
| 4 | 35 | RM | 29.3 | 2060 |
| 4 | 50 | SM | 34.4 | 2470 |
| 4 | 70 | SM | 38.1 | 3330 |
| 4 | 95 | SM | 43.2 | 4500 |
| 4 | 120 | SM | 46.6 | 5510 |
| 4 | 150 | SM | 48.6 | 6690 |
| 4 | 185 | SM | 50.4 | 7340 |
| 4 | 240 | SM | 55.2 | 9610 |
