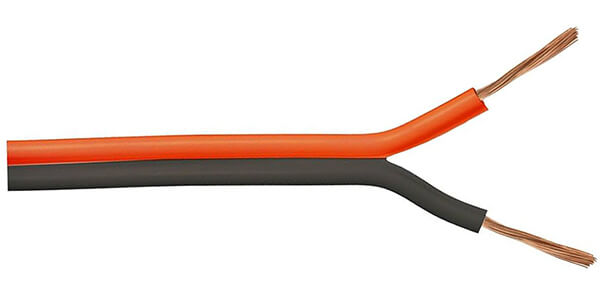

Parallel Audio Cable Description
Parallel audio cables use parallel conductors (usually arranged side-by-side) made of OFC (oxygen-free copper) or tinned copper, and are wrapped with flexible PVC insulation. They are easy to disconnect, designed for low-frequency signals, and enable fast, reliable, and cost-effective audio transmission.
Parallel Audio Cable Construction
- Conductor
- Flexible Class 5 Copper or Oxygen-Free Copper (OFC)
- Insulation
- PVC
Parallel Audio Cable Characteristics
- Thermal performance
- Maximum service temperature: 70ºC
- Maximum short-circuittemperature: 160ºC (max. 5 s)
- Minimum service temperature: -15ºC
- Minimum bending radius
- x5 cable diameter
Parallel Audio Cable Specifications
| Cross-section (mm²) | External size (mm) | Resistance (Ω/km) |
|---|---|---|
| Two-Colours Audio Cable | ||
| 2 x 0,5 | 1,9 x 4,0 | 39 |
| 2 x 0,75 | 2,1 x 4,4 | 26 |
| 2 x 1 | 2,3 x 4,8 | 19,5 |
| 2 x 1,5 | 2,55 x 5,3 | 13,3 |
| 2 x 2,5 | 3,0 x 6,2 | 7,98 |
| 2 x 4 | 4,1 x 8,5 | 4,95 |
| OFC Conductor Audio Cable | ||
| 2 x 1 | 2,9 x 6,1 | 19,5 |
| 2 x 1,5 | 3,3 x 6,8 | 13,3 |
| 2 x 2,5 | 3,9 x 8,0 | 7,98 |
| 2 x 4 | 4,6 x 9,4 | 4,95 |
| 2 x 6 | 6,1 x 12,7 | 3,3 |
