PFSP Cable Description
PFSP cables employ a concentric copper mesh structure and are used as a neutral conductor or protective grounding conductor, providing contact voltage protection in cases where the insulation layer may be severely damaged by metallic objects.
This cable can be used both indoors and outdoors, for fixed installations in walls, metal structures, or cable conduits, and can also be directly buried underground, underwater, or in concrete. Due to fire safety regulations for environmentally friendly buildings, this product is gradually being replaced by environmentally friendly, halogen-free IFSI (also known as AXQJ) cables.

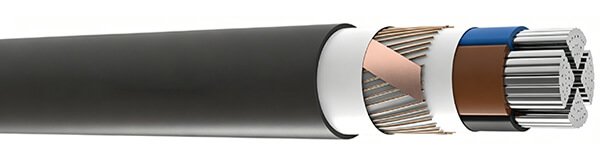

PFSP Cable Construction
- Conductor
- Al / Cu, class 1 or 2
- Insulation
- PVC compound, type DIV 9
- Concentric conductor
- Cu wires with counter helix of Cu tape
- Outer Sheath
- PVC compound, type DMV 24
PFSP Cable Characteristics
- Rated voltage
- 0,6/1 kV
- Bending radius (min)
- single-core – 15D
- multicore – 12D
- Min. laying temperature
- -10°C
- Max. conductor temperature
- 70°C
- Max. short-circuit temperature
- 160°C
- PFSP
- PFSP Cu
| NOMINAL CROSS-SECTION (mm²) | CONDUCTOR CONSTRUCTION | MAX.RESISTANCE AT 20°C (Ω/km) | CURRENT CAPACITY IN AIR (A) | CURRENT CAPACITY IN EARTH (A) | OUTER DIAM. (APPROX.) (mm) | METAL WEIGHT (kg/km) | CABLE WEIGHT (APPROX.) (kg/km) |
|---|---|---|---|---|---|---|---|
| 3x16/10 | AFR | 1910 | - | - | 19,2 | 139,2 | 575,5 |
| 3x25/10 | AFR | 1200 | 83 | 103 | 22,5 | 217,5 | 767,9 |
| 3x50/16 | AFV | 0,641 | 121 | 145 | 28,8 | 435,0 | 936,1 |
| 3x95/35 | AFV | 0,320 | 189 | 216 | 37,3 | 826,5 | 1707,4 |
| 3x150/50 | AFV | 0,206 | 249 | 276 | 44,9 | 1305,0 | 2479,1 |
| 3x240/70 | AFV | 0,125 | 339 | 362 | 55,7 | 2088,0 | 3798,6 |
| 4x16/10 | AFR | 1910 | - | - | 20,4 | 185,6 | 645,4 |
| 4x25/10 | AFR | 1200 | 83 | 103 | 25,2 | 290,0 | 882,5 |
| 4x50/16 | AFV | 0,641 | 121 | 145 | 32,5 | 580,0 | 1151,1 |
| 4x95/35 | AFV | 0,320 | 189 | 216 | 42,2 | 1102,0 | 2093,9 |
| 4x150/50 | AFV | 0,206 | 249 | 276 | 52,1 | 1740,0 | 3072,2 |
| 4x240/70 | AFV | 0,125 | 339 | 362 | 64,8 | 2784,0 | 4734,5 |
| AFR = Aluminium round conductor AFV = Aluminium sector-shaped conductor |
|||||||
| NOMINAL CROSS-SECTION (mm²) | CONDUCTOR CONSTRUCTION | MAX.RESISTANCE AT 20°C (Ω/km) | CURRENT CAPACITY IN AIR (A) | CURRENT CAPACITY IN EARTH (A) | OUTER DIAM. (APPROX.) (mm) | METAL WEIGHT (kg/km) | CABLE WEIGHT (APPROX.) (kg/km) |
|---|---|---|---|---|---|---|---|
| 2x1,5/1,5 | AFR | 12,1 | 19,5 | 27 | 11,5 | 28,8 | 180 |
| 2x2,5/2,5 | AFR | 7,41 | 26 | 36 | 12,3 | 48,0 | 227 |
| 2x4/4 | AFR | 4,61 | 34 | 47 | 14,5 | 76,8 | 335 |
| 2x6/6 | AFR | 3,08 | 44 | 59 | 15,6 | 115,2 | 422 |
| 2x10/10 | AFR | 1830 | 60 | 77 | 18 | 192,0 | 613 |
| 2x16/16 | AFR | 1150 | 80 | 100 | 20,1 | 307,2 | 852 |
| 3x6/6 | AFR | 3,08 | 44 | 59 | 15,6 | 172,8 | 499 |
| 3x10/10 | AFR | 1830 | 60 | 77 | 18,1 | 288,0 | 733 |
| 3x16/16 | AFR | 1150 | 80 | 100 | 20,3 | 460,8 | 1032 |
| 3x25/16 | AFR | 0,727 | 102 | 130 | 23,6 | 720,0 | 1428 |
| 3x35/16 | AFV | 0,524 | 126 | 160 | 22,7 | 1008,0 | 1493 |
| 3x50/25 | AFV | 0,387 | 153 | 190 | 25,6 | 1440,0 | 2088 |
| 3x70/35 | AFV | 0,268 | 195 | 240 | 28,7 | 2016,0 | 2823 |
| 3x95/50 | AFV | 0,193 | 236 | 285 | 33,8 | 2736,0 | 3870 |
| 3x120/70 | AFV | 0,153 | 274 | 325 | 36,5 | 3456,0 | 4846 |
| 3x150/70 | AFV | 0,124 | 317 | 370 | 40,2 | 4320,0 | 5848 |
| 3x185/95 | AFV | 0,0991 | 361 | 420 | 45,1 | 5328,0 | 7338 |
| 3x240/120 | AFV | 0,0754 | 427 | 480 | 50,3 | 6912,0 | 9375 |
| 4x6/6 | AFR | 3,08 | 44 | 59 | 16,8 | 230,4 | 586 |
| 4x10/10 | AFR | 1830 | 60 | 77 | 19,6 | 384,0 | 865 |
| 4x16/16 | AFR | 1150 | 80 | 100 | 22,0 | 614,4 | 1228 |
| 4x25/16 | AFR | 0,727 | 102 | 130 | 25,7 | 960,0 | 1725 |
| 4x35/16 | AFV | 0,524 | 126 | 160 | 25,8 | 1344,0 | 1905 |
| 4x50/25 | AFV | 0,387 | 153 | 190 | 29,1 | 1920,0 | 2668 |
| 4x70/35 | AFV | 0,268 | 195 | 240 | 32,6 | 2688,0 | 3604 |
| 4x95/50 | AFV | 0,193 | 236 | 285 | 38,0 | 3648,0 | 4934 |
| 4x120/70 | AFV | 0,153 | 274 | 325 | 41,5 | 4608,0 | 6168 |
| 4x150/70 | AFV | 0,124 | 317 | 370 | 45,2 | 5760,0 | 7481 |
| 4x185/95 | AFV | 0,0991 | 361 | 420 | 50,6 | 7104,0 | 9355 |
| 4x240/120 | AFV | 0,0754 | 427 | 480 | 56,5 | 9216,0 | 11980 |
| AFR = Aluminium round conductor AFV = Aluminium sector-shaped conductor |
|||||||
