RV-AL / LXV Cable Description
RV-AL cable uses a Category 2 stranded round aluminum core conductor, with cross-linked polyethylene (XLPE) insulation and an outer sheath of ST2 type polyvinyl chloride (PVC). The maximum operating temperature of the conductor is 90°C.
RV-AL cable is specifically designed for low-voltage power supply installations and is suitable for various public power distribution underground networks, as well as low-voltage connections in industrial plants, urban power networks, buildings, etc. This cable has UV resistance, making it ideal for outdoor installations in open-air environments.

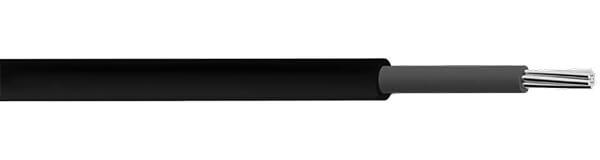

RV-AL / LXV Cable Construction
- Conductor
- Class 2 Stranded Aluminium
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Outer Sheath
- PVC (Polyvinyl Chloride) UV Resistant
RV-AL / LXV Cable Characteristics
- Voltage Rating
- 0.6/1kV
- Temperature Rating
- Minimum operating temperature -15°C
- Maximum temperature rating of the conductor: 90°C
- Short-circuit temperature of the conductor: 250°C (t ≤5s)
- Maximum pulling force over conductor (N)
- Over conductors 30 x Section mm²
- Over sheath: 3 x d²
RV-AL / LXV Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MINIMUM BENDING RADIUS mm |
|---|---|---|---|---|
| 1 | 16 | 9.1 | 103 | 80 |
| 1 | 25 | 10.7 | 144 | 95 |
| 1 | 35 | 11.8 | 181 | 105 |
| 1 | 50 | 13 | 223 | 115 |
| 1 | 70 | 15 | 301 | 135 |
| 1 | 95 | 16.9 | 394 | 150 |
| 1 | 120 | 18.5 | 473 | 165 |
| 1 | 150 | 20.6 | 590 | 185 |
| 1 | 185 | 22.7 | 730 | 205 |
| 1 | 240 | 25.6 | 933 | 230 |
| 1 | 300 | 28.1 | 1203 | 250 |
| 1 | 400 | 32.2 | 1585 | 290 |
| 1 | 500 | 35 | 2047 | 315 |
| 1 | 630 | 38.9 | 2534 | 350 |
