RVOV-K Cable Description
RVOV-K cables utilize Category 5 flexible copper round stranded conductors (maximum 35mm²) and sector stranded conductors (larger gauges), designed to minimize the cable’s outer diameter in space-constrained installation environments.
This cable is resistant to UV radiation and hydrocarbon corrosion, and provides electromagnetic protection. Designed for industrial applications, it can be installed indoors or outdoors, suitable for both dry and humid environments.

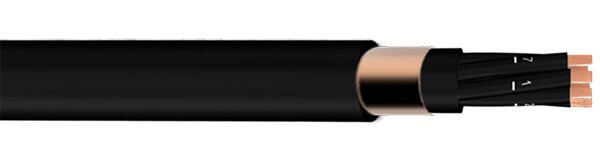

RVOV-K Cable Construction
- Conductor
- Class 5 Flexible Copper Conductor
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Inner Sheath
- PVC (Polyvinyl Chloride)
- Screen
- Copper Tape
- Outer Sheath
- PVC (Polyvinyl Chloride)
RVOV-K Cable Characteristics
- Voltage Rating
- 0.6/1kV
- Temperature Rating
- Operating: -15ºC to +90ºC
- Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)
- Minimum Bending Radius
- 10 x overall diameter
RVOV-K Cable Specifications
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 2 | 1.5 | 0.7 | 1.4 | 11 | 154 |
| 2 | 2.5 | 0.7 | 1.4 | 12.1 | 195 |
| 2 | 4 | 0.7 | 1.4 | 13.2 | 251 |
| 2 | 6 | 0.7 | 1.4 | 13.9 | 291 |
| 2 | 10 | 0.7 | 1.4 | 15.8 | 409 |
| 2 | 16 | 0.7 | 1.5 | 18.7 | 560 |
| 2 | 25 | 0.9 | 1.6 | 21.5 | 850 |
| 2 | 35 | 0.9 | 1.7 | 24.4 | 1135 |
| 3 | 2.5 | 0.7 | 1.4 | 13 | 232 |
| 3 | 4 | 0.7 | 1.4 | 13.6 | 284 |
| 4 | 1.5 | 0.7 | 1.4 | 12.7 | 214 |
| 4 | 2.5 | 0.7 | 1.4 | 13.7 | 269 |
| 4 | 4 | 0.7 | 1.4 | 14.8 | 342 |
| 4 | 6 | 0.7 | 1.5 | 16.4 | 443 |
| 4 | 10 | 0.7 | 1.5 | 18.5 | 625 |
| 4 | 16 | 0.7 | 1.5 | 21.3 | 877 |
| 4 | 25 | 0.9 | 1.7 | 25.7 | 1334 |
| 4 | 35 | 0.9 | 1.8 | 28.6 | 1766 |
| 5 | 2.5 | 0.7 | 1.4 | 14.8 | 310 |
| 5 | 4 | 0.7 | 1.4 | 16.3 | 407 |
| 6 | 1.5 | 0.7 | 1.4 | 14.1 | 255 |
| 6 | 2.5 | 0.7 | 1.4 | 15.2 | 332 |
| 6 | 4 | 0.7 | 1.4 | 16.7 | 433 |
| 7 | 1.5 | 0.7 | 1.4 | 14.4 | 288 |
| 7 | 2.5 | 0.7 | 1.4 | 15.4 | 356 |
| 7 | 4 | 0.7 | 1.5 | 17.5 | 500 |
| 12 | 1.5 | 0.7 | 1.5 | 18.1 | 454 |
| 12 | 2.5 | 0.7 | 1.6 | 20.1 | 613 |
| 12 | 4 | 0.7 | 1.7 | 22.4 | 823 |
| 12 | 6 | 0.7 | 1.7 | 24.7 | 1084 |
| 14 | 1.5 | 0.7 | 1.5 | 19 | 530 |
| 14 | 2.5 | 0.7 | 1.6 | 21 | 675 |
