Socapex Cable

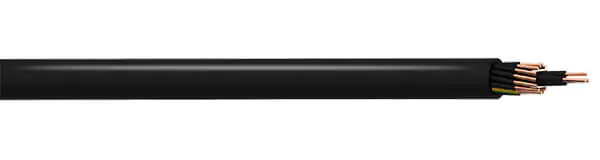

Socapex Cable Description

Socapex cables feature Category 5 flexible stranded copper conductors, PVC insulation, and an outer sheath. Designed to withstand moderate mechanical stress and UV exposure, they remain stable even in outdoor use.

This 18-core cable is rated for 300/500V and is available in 1.5mm² or 2.5mm² core sizes upon request. It is widely used for temporary events, exhibitions, concerts, and outdoor activities.

Socapex Cable Construction

Conductor
Class 5 flexible copper conductor
Insulation
PVC (Polyvinyl Chloride)
Sheath
PVC (Polyvinyl Chloride)

Socapex Cable Characteristics

Voltage Rating
300/500V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 15 x overall diameter

Socapex Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
18	1.5	14.5	432
18	2.5	17.9	692
