Tri-Rated Cable Description
Tri-Rated cable uses flexible Category 5 bare copper conductors with a heat-resistant PVC sheath, allowing continuous operation at temperatures up to 105°C. It is ideal for safe and efficient electrical wiring and is widely used in residential, office, and other commercial or industrial buildings equipped with switchgear.
Tri-Rated cable conforms to three international standards: British Standard (BS 6231), American Standard (UL 758), and Canadian Standard (CSA C22.2). According to the European Harmonized System (HAR) identification codes, these cables are designated H05V2-K and H07V2-K, respectively.

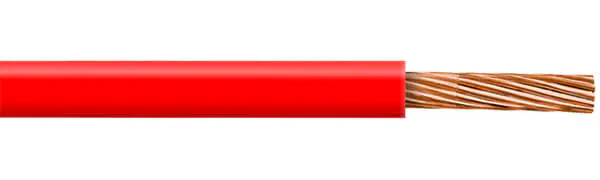

Tri-Rated Cable Construction
- Conductor
- Class 5 flexible copper conductor
- Insulation
- PVC (Polyvinyl Chloride)
Tri-Rated Cable Characteristics
- Voltage Rating
- UL, CSA, BS 6231: 0.6/1kV
- BS EN 50525-2-31 – H05V2-K: 300/500V
- BS EN 505-2-31 – H07V2-K: 450/750V
- Temperature Rating
- UL, CSA: -15°C to +105°C
- BS 6231: -15°C to +90°C
- Minimum Bending Radius
- 6 x overall diameter
Tri-Rated Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | APPROXIMATE AWG | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 0.5 | 21 | 0.8 | 2.7 | 11 |
| 1 | 0.75 | 19 | 0.8 | 2.85 | 15 |
| 1 | 1 | 18 | 0.8 | 3 | 18 |
| 1 | 1.5 | 16 | 0.8 | 3.3 | 23 |
| 1 | 2.5 | 14 | 0.8 | 3.75 | 35 |
| 1 | 4 | 12 | 0.8 | 4.35 | 48 |
| 1 | 6 | 10 | 0.8 | 4.85 | 69 |
| 1 | 10 | 8 | 1 | 6.3 | 117 |
| 1 | 16 | 6 | 1 | 8.1 | 191 |
| 1 | 25 | 4 | 1.2 | 9.4 | 281 |
| 1 | 35 | 2 | 1.2 | 10.9 | 389 |
| 1 | 50 | 1 | 1.4 | 13.1 | 560 |
| 1 | 70 | 2/0 | 1.4 | 15.1 | 774 |
| 1 | 95 | 3/0 | 1.6 | 16.1 | 991 |
| 1 | 120 | 4/0 | 1.6 | 17.9 | 1231 |
| 1 | 150 | 250 MCM | 1.8 | 20.2 | 1534 |
| 1 | 185 | 350 MCM | 2 | 22.85 | 1878 |
| 1 | 240 | 450 MCM | 2.2 | 24.4 | 2381 |
