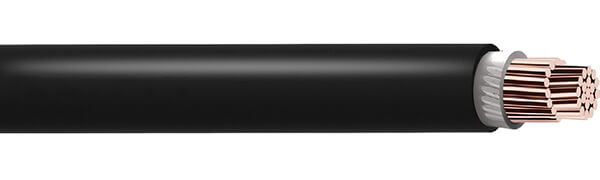

TXXP Cable Description
TXXP cables feature Category 2 round stranded copper or aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a UV-resistant polyvinyl chloride (PVC) outer sheath. Suitable for direct burial, underground installation, cable trays, conduits, or outdoor installation.
Due to the superior conductivity of copper, TXXP copper core cables have a higher current-carrying capacity in air and a lower maximum conductor resistance (ohms/km) at 20°C.
TXXP Cable Construction
- Conductor
- Class 2 round stranded Copper / Aluminium
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Outer Sheath
- PVC (Polyvinyl Chloride) UV resistant
TXXP Cable Characteristics
- Voltage Rating
- 0.6/1kV
- Temperature Rating
- Minimum laying temperature: -5ºC
- Maximum Conductor temperature: +90ºC
- Short Circuit Temperature
- 250°C
- Minimum Bending Radius
- 15 x overall diameter
- TXXP Copper Cable
- TXXP Aluminium Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 150 | RM | 17.5 | 588 |
| 1 | 240 | RM | 21.8 | 965 |
| 1 | 300 | RM | 18.8 | 698 |
| 1 | 400 | RM | 23.7 | 1115 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR TYPE | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| 1 | 150 | RM | 20 | 650 |
| 1 | 240 | RM | 26 | 1000 |
| 1 | 300 | RM | 30 | 1220 |
| 1 | 400 | RM | 32 | 1550 |
