YAKXS Cable Description
Featuring aluminum conductors, cross-linked polyethylene (XLPE) insulation, and a polyvinyl chloride (PVC) outer sheath, YAKXS cables are available in 0.6/1 kV and 1.8/3 kV ratings. They are suitable for both indoor and outdoor use—whether installed on cable trays, in conduits, embedded in concrete, or buried directly underground—and are frequently deployed in photovoltaic (solar) farms, wind farms, and local distribution substations as feeder or connection cables.

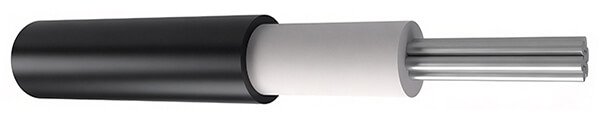

YAKXS Cable Construction
- Conductor
- Class 2 solid or stranded Aluminium
- Insulation
- XLPE (Cross-Linked Polyethylene)
- Outer Sheath
- PVC (Polyvinyl Chloride)
YAKXS Cable Characteristics
- Voltage Rating
- 0.6/1kV,
- 1.8/3kV
- Temperature Rating
- Flexed: 5°C to +90°C
- Fixed: -35°C to +90°C
- Minimum Bending Radius
- 15 x overall diameter
YAKXS Cable Specification
| NO. OF CONDUCTOR | NOMINAL CROSS SECTIONAL AREA (mm²) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT (kg/km) |
|---|---|---|---|
| 0.6/1kV | |||
| 1 | 25 | 9.9 | 132 |
| 1 | 35 | 11 | 166 |
| 1 | 50 | 12.5 | 211 |
| 1 | 70 | 14.1 | 283 |
| 1 | 95 | 16.1 | 376 |
| 1 | 120 | 17.5 | 456 |
| 1 | 150 | 19.6 | 560 |
| 1 | 185 | 21.8 | 697 |
| 1 | 240 | 24 | 878 |
| 1 | 300 | 26.7 | 1073 |
| 1 | 400 | 29.7 | 1347 |
| 1 | 500 | 33.1 | 1705 |
| 1 | 630 | 42.8 | 2705 |
| 3 | 70 | 26.1 | 903 |
| 3 | 70 | 25.2 | 859 |
| 3 | 95 | 29.1 | 1174 |
| 3 | 95 | 27.8 | 1115 |
| 3 | 120 | 32.2 | 1446 |
| 3 | 120 | 30.8 | 1379 |
| 3 | 150 | 36.2 | 1780 |
| 3 | 150 | 33.9 | 1685 |
| 3 | 185 | 40.1 | 2197 |
| 3 | 185 | 37.6 | 2089 |
| 3 | 240 | 44.9 | 2782 |
| 3 | 240 | 41.8 | 2634 |
| 4 | 70 | 29.7 | 1178 |
| 4 | 70 | 28.8 | 1126 |
| 4 | 95 | 33.3 | 1538 |
| 4 | 95 | 32.1 | 1467 |
| 4 | 120 | 37.2 | 1903 |
| 4 | 120 | 35.5 | 1817 |
| 4 | 150 | 41.3 | 2328 |
| 4 | 150 | 39.4 | 2223 |
| 4 | 185 | 45.7 | 2874 |
| 4 | 185 | 43.4 | 2750 |
| 4 | 240 | 51.2 | 3646 |
| 4 | 240 | 48 | 3465 |
| 1.8/3kV | |||
| 1 | 16 | 10.9 | 140 |
| 1 | 25 | 12 | 180 |
| 1 | 35 | 13.1 | 215 |
| 1 | 50 | 14.4 | 265 |
| 1 | 70 | 16.2 | 350 |
| 1 | 95 | 17.7 | 430 |
| 1 | 120 | 19.3 | 530 |
| 1 | 150 | 21.5 | 635 |
| 1 | 185 | 22.6 | 750 |
| 1 | 240 | 25.2 | 935 |
| 1 | 300 | 27.5 | 1125 |
| 1 | 400 | 30.4 | 1410 |
| 1 | 500 | 34.3 | 1775 |
| 1 | 630 | 38.4 | 2280 |
| 1 | 800 | 43.8 | 2945 |
| 1 | 1000 | 50.7 | 3710 |
