YAKY Cable

YAKY Cable Description

YAKY cables feature Class 1 solid or Class 2 rigid stranded aluminum conductors (in circular or sector-shaped configurations), along with polyvinyl chloride (PVC) insulation and an outer sheath. They offer excellent resistance to UV radiation, abrasion, and other external environmental factors.

These cables are suitable for indoor or outdoor use, installation in cable trays or conduits, and direct burial in the ground. They are frequently employed in local power distribution, power supply for residential and commercial buildings, and industrial facilities. Compared to their copper-conductor counterparts (YKY cables), they are lighter and more cost-effective.

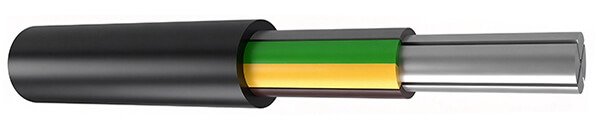

YAKY Cable Construction

Conductor
Solid (RE/SE) or stranded (RM/SM) aluminum, Class 1 or Class 2
Insulation
PVC (Polyvinyl Chloride)
Outer Sheath
PVC (Polyvinyl Chloride)

YAKY Cable Characteristics

Voltage Rating
0.6/1kV
Operating Temperature
Operating: -5°C to +70°C

YAKY Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL THICKNESS OF INSULATION (mm)	FIXED INSTALLATION BENDING RADIUS (mm)	NOMINAL THICKNESS OF SHEATH (mm)	NOMINAL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)
1	16	1	158	1.8	10.5	145
1	25	1.2	180	1.8	12	195
1	35	1.2	203	1.8	13.5	255
1	50	1.4	231	1.8	15.4	298
1	70	1.4	255	1.8	17	383
1	95	1.6	285	1.8	19	490
1	120	1.6	300	1.8	20	575
1	150	1.8	330	1.8	22	695
1	185	2	375	1.8	25	845
1	240	2.2	420	1.8	28	1100
1	300	2.4	450	1.9	30	1379
1	400	2.6	510	2	34	1615
1	500	2.8	555	2.1	37	2015
1	630	2.8	645	2.2	43	2472
3	300	2.4	708	3	59	4500
4	16	1.2	288	1.8	24	750
4	25	1.2	300	1.8	25	950
4	35	1.2	354	1.8	28.1	1120
4	50	1.4	354	1.9	29.5	1151
4	70	1.4	420	2.1	33.4	1549
4	95	1.6	468	2.2	39	2030
4	120	1.6	516	2.4	43	2400
4	150	1.8	552	2.5	46	3030
4	185	2	612	2.7	51	3650
4	240	2.2	696	2.9	58	4800
4	300	2.4	786	3	65.5	5685
5	16	1	262	1.8	21.8	938
5	25	1.2	325	1.8	27.1	1188
5	35	1.2	362	1.8	30.2	1375
5	50	1.4	432	1.8	36.2	1720
5	70	1.4	492	2.1	44	2240
5	95	1.6	564	2.1	47	3060
5	120	1.6	612	2.4	53	3580
5	150	1.8	672	2.5	56	4400
5	185	2	804	2.7	59	5481
5	240	2.2	852	2.9	71	7000
