YMvKf Cable

YMvKf Cable Description

YMvKf cable features stranded copper conductors (Category 5), cross-linked polyethylene (XLPE) insulation, and a polyvinyl chloride (PVC) sheath. Designed for industrial, urban, and building installations, its flexibility greatly simplifies installation and makes it suitable for complex, narrow wiring environments. It can also be used in wet, dry, indoor, or outdoor environments, including direct burial and even complete immersion in water (AD7).

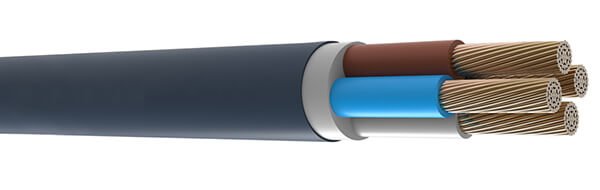

YMvKf Cable Construction

Conductor
Copper, class 5 (flexible)
Insulation
XLPE
Outer Sheath
PVC

YMvKf Cable Characteristics

Voltage Rating
0.6/1kV
1.8/3kV
Thermal performance
Maximum conductor temperature: 90ºC
Maximum short-circuittemperature: 250ºC
Minimum service temperature: -40ºC
Mechanical performance
Minimum bending radius: x5 cable diameter
Impact resistance: AG2 Medium severity

YMvKf 0.6/1kV
YMvKf 1.8/3kV

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 10	8,1	140	93	77	4,87
1 x 16	9,2	200	124	100	3,08
1 x 25	10,6	285	161	129	1,98
1 x 35	11,7	380	200	155	1,41
1 x 50	13,5	525	242	183	0,984
1 x 70	15,3	710	310	225	0,693
1 x 95	17,5	925	377	270	0,525
1 x 120	19,1	1.16	437	306	0,410
1 x 150	21,3	1.44	504	343	0,328
1 x 185	23,4	1.735	575	387	0,270
1 x 240	26,2	2.26	679	448	0,204
1 x 300	29,1	2.86	783	502	0,163
1 x 400	33,8	3.765	940	563	0,123
1 x 500	37,5	4.805	1.083	637	0,097
1 x 630	43,7	6.34	1.254	719	0,073
2 x 10	15,2	405	86	77	4,87
2 x 16	17,0	550	115	100	3,08
2 x 25	19,9	785	149	129	1,98
2 x 35	22,0	1.025	185	155	1,41
3 G 10	15,9	490	86	77	4,87
3 x 16	18,0	690	115	100	3,08
3 x 25	20,7	985	149	129	1,98
3 x 35	23,5	1.315	185	155	1,41
3 x 50	27,3	1.825	225	183	0,984
3 x 70	30,6	2.485	289	225	0,693
3 x 95	35,7	3.255	352	270	0,525
3 x 120	40,0	4.12	410	306	0,410
3 x 150	44,9	5.185	473	343	0,328
3 x 185	49,5	6.245	542	387	0,270
3 x 240	55,5	8.1	641	448	0,204
3 x 16 + 1 x 10	19,1	795	115	100	3,08
3 x 25 + 1 x 16	21,8	1.135	149	129	1,98
3 x 35 + 1 x 25	25,0	1.55	185	155	1,41
3 x 50 + 1 x 25	28,5	2.045	225	183	0,984
3 x 70 + 1 x 35	33,2	2.83	289	225	0,693
3 x 95 + 1 x 50	37,2	3.685	352	270	0,525
4 G 10	17,3	595	86	77	4,87
4 G 16	19,7	850	115	100	3,08
4 G 25	22,4	1.215	149	129	1,98
4 G 35	25,4	1.655	185	155	1,41
4 G 50	30,5	2.3	225	183	0,984
4 G 70	35,6	3.2	289	225	0,693
4 G 95	39,2	4.095	352	270	0,525
4 G 120	44,5	5.23	410	306	0,410
4 G 150	49,7	6.53	473	343	0,328
4 G 185	55,1	7.94	542	387	0,270
4 G 240	62,2	10.3	641	448	0,204
4 x 35 + 1 G 25	27,8	1.9	185	155	1,41
4 x 50 + 1 G 25	32,2	2.55	225	183	0,984
4 x 70 + 1 G 35	37,8	3.565	289	225	0,693
4 x 95 + 1 G 50	42,1	4.62	352	270	0,525
5 G 10	18,8	710	86	77	4,87
5 G 16	21,5	1.025	115	100	3,08
5 G 25	25,0	1.49	149	129	1,98
5 G 35	27,9	1.995	185	155	1,41
5 G 50	33,6	2.81	225	183	0,984
5 G 70	38,8	3.9	289	225	0,693
5 G 95	44,2	5.075	352	270	0,525
5 G 120	48,8	6.395	410	306	0,410
5 G 150	54,9	8	473	343	0,328
5 G 185	61,3	9.735	542	387	0,270
5 G 240	69,3	12.655	641	448	0,204

Cross-section (mm²)	Diameter (mm)	Weight (kg/km)	Open air (A)	Buried (A)	Voltage drop (V/A·km)
1 x 240	27,0	2.3	679	448	0,204
1 x 300	29,7	2.895	783	502	0,163
1 x 400	33,8	3.765	940	563	0,123
1 x 500	37,5	4.805	1.083	637	0,097
1 x 630	43,7	6.34	1.254	719	0,073
