Axle Counter Cable Description

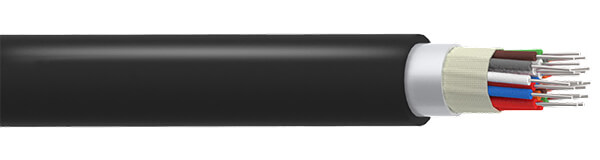

Axle counter cables feature tinned copper conductors and polyethylene (PE) insulation, twisted into pairs or quads to minimize electromagnetic interference. They feature a PE or low-smoke zero-halogen (LSZH) outer jacket for increased durability.
These cables are used to connect the various components of the AzLM axle counting system on railway networks. XQS and XQZ star-shaped cables are used to connect EAK junction boxes or terminals to EAK (mushroom-type), while XPS and XPZ stranded cables are used to connect EAK to ACE (axle counter evaluator) equipment.
Axle Counter Cable Construction
- Conductor
- Class 1 solid tinned copper conductor
- Insulation
- PE (Polyethylene)
- Water Blocking
- Petroleum Jelly (XPS and XQS types only)
- Anti-Rodent Protection
- FGT (Fibre Glass Woven Tape)
- Moisture Barrier
- Aluminium/Polymer Laminate Tape
- Sheath
- PE (Polyethylene) – XPS/XQS Types
- LSZH (Low Smoke Zero Halogen) – XPZ/XQZ Types
Axle Counter Cable Characteristics
- Temperature Rating
- Fixed: -25°C to +85°C
- Minimum Bending Radius
- Fixed: 10 x overall diameter
Axle Counter Cable Specification
| NETWORK RAIL PART NO. / PADS | NO. OF PAIRS | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|
| Type XPS Multi-Twisted-Pair Cables | ||||
| 006/170007 | 2 | 0.9 | 16.5 | 215 |
| 006/170008 | 10 | 0.9 | 24.7 | 530 |
| 006/170009 | 12 | 0.9 | 26.4 | 584 |
| 006/170034 | 19 | 0.9 | 31.4 | 810 |
| 006/170035 | 24 | 0.9 | 34.5 | 982 |
| 006/170036 | 2 | 1.4 | 19.5 | 320 |
| 006/170037 | 10 | 1.4 | 31.4 | 910 |
| 006/170038 | 12 | 1.4 | 33.8 | 1016 |
| 006/170039 | 19 | 1.4 | 40.8 | 1460 |
| 006/170040 | 24 | 1.4 | 45 | 1787 |
| Type XPZ Multi-Twisted-Pair Cables | ||||
| 006/170023 | 2 | 0.9 | 16.5 | 200 |
| 006/170024 | 10 | 0.9 | 24.7 | 424 |
| 006/170025 | 12 | 0.9 | 26.4 | 468 |
| 006/170026 | 19 | 0.9 | 31.4 | 632 |
| 006/170027 | 24 | 0.9 | 34.5 | 746 |
| 006/170028 | 2 | 1.4 | 19.5 | 314 |
| 006/170029 | 10 | 1.4 | 31.4 | 807 |
| 006/170030 | 12 | 1.4 | 33.8 | 909 |
| 006/170031 | 19 | 1.4 | 40.8 | 1284 |
| 006/170032 | 24 | 1.4 | 45 | 1548 |
| Type XQS Star-Quad Cables | ||||
| 006/170021 | 1 | 0.9 | 13.8 | 173 |
| 006/170050 | 1 | 1.4 | 16.4 | 225 |
| Type XQZ Star-Quad Cables | ||||
| 006/170053 | 1 | 0.9 | 13.8 | 141 |
| 006/170033 | 1 | 1.4 | 16.4 | 204 |
