BR880 Cable

BR880 Cable Description

BR880 aluminum power cables are rated for 600/1000V and are available in 2-core and 4-core options. These durable and lightweight cables are suitable for use in railway applications as well as in the renewable energy industry.

BR880 Cable Construction

Conductor
Class 1 sector-shaped solid aluminium conductor
Insulation
XLPE (Cross-Linked Polyethylene) or PVC (Polyvinyl Chloride)
Overall Screen
Al/PET (Aluminium/Polyester Tape)
Seperator
PET (Polyester Tape)
Sheath
PVC (Polyvinyl Chloride)

BR880 Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
BS 6346: +70°C
BS 5467: +90°C
Limited Use
Distribution of signalling power only (Not suitable for general signalling use)

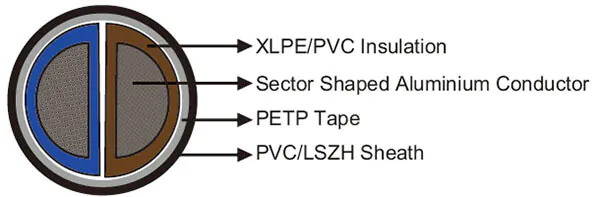

BR880 Cable Diagram

BR880 Cable Specification

NETWORK RAIL PART NO. / PADS	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL THICKNESS OF SHEATH mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
006/142419	2	16	1	1.8	14.3	420
006/142519	2	25	1.2	1.8	16.6	455
006/142609	2	35	1.2	1.8	18	525
006/142629	2	50	1.4	1.8	20.4	620
006/142639	2	70	1.4	1.9	22.8	840
006/142644	2	95	1.6	2	26.2	1020
006/151469	4	70	1.4	2	30.6	1750
006/151494	4	95	1.6	2.2	35.5	2100
006/166820	4	120	1.2	2.3	48	2300
